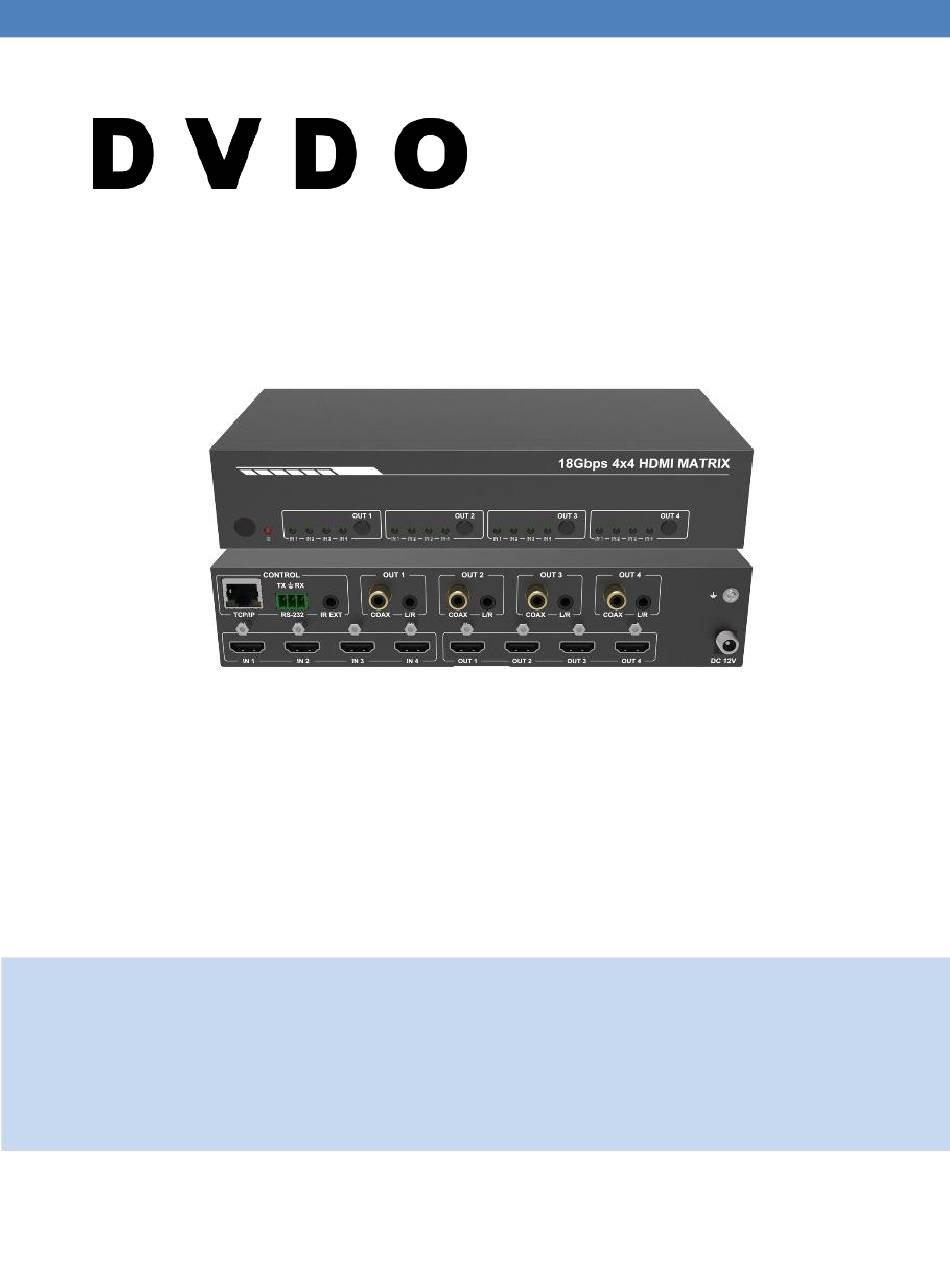

- Page 1 DVDO-Matrix-44 4K 4x4 HDMI Matrix Switcher with Audio Outputs & HDR User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
- Page 2 Thank you for purchasing DVDO-Matrix-44 For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
- Page 3 1. Introduction DVDO-Matrix-44 is a high performance 4×4 HDMI 4K 18Gbps matrix that can switch any of four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled (4K→1080p).
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 Video Resolution 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 4K→1080p Output Scaling 3D Support...
- Page 5 Mechanical Housing Metal Enclosure Color Black Dimensions 220mm (W)×105mm (D)×44mm (H) Weight 792g Input: AC100~240V 50/60Hz Power Supply Output: DC12V/2.5A (Locking connector) Power Consumption 10W (Max), 1.56W (Standby mode) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Resolution /...
- Page 6 5.2 Rear Panel Name Function Description Control port for TCP/IP control or accessing the built-in TCP/IP Web GUI. 3-pin pluggable connector for RS-232 control of the RS-232 Matrix. If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of infrared line of sight, the IR EXT IR receiver cable can be inserted to the “IR EXT”...
- Page 7 5.3 Connecting to the Matrix 1. Connect the desired HDMI input sources. 2. Connect the desired HDMI display devices. 3. Connect the desired control devices: TCP/IP, RS-232 or IR IN. 4. Connect audio devices to either the Coaxial or L/R audio output ports. 5.
- Page 8 6. IR Remote Power on the Matrix or set it to standby mode. Output 1/2/3/4 Select the desired input source IN 1/2/3/4 for the 1/2/3/4 OUT 1/2/3/4 port output, the corresponding green LED on the front panel will be on. Switch downscale or bypass mode for the OUT 1/2/3/4 port output.
- Page 9 IP:192.168.61.103 in the above figure is the current Matrix IP address (this IP address is variable, depending on what the specific machine returns). For the details of RS-232 control, please refer to “8. RS-232 Control Command”. Follow the steps below to access the Web GUI: Step 1: Connect the TCP/IP port of the Matrix to a PC with an UTP cable.
- Page 10 After entering the Web GUI page, there will be a Login page, as shown below: Select the username and language from the drop-down list and enter the password. The default passwords are: Username User Admin Password user admin After entering the login details, click the LOGIN button and the following Status page will appear.
- Page 11 The buttons at the top right of the web interface are always available and provide the following function: • Log out: Click this button to log out the system, and it will switch to the login page. • Power on: Click this button to change the status of the Matrix between "Power on"...
- Page 12 ■ Input page The Input page shows the name and connection status of the input channel, and the name can be modified by entering the corresponding name in the input box. The EDID column provides a list of EDID options for each individual input.
- Page 13 4K2K30Hz_444 Dolby/DTS 5.1 4K2K30Hz_444 HD Audio 7.1 4K2K60Hz_420 Stereo Audio 2.0 4K2K60Hz_420 Dolby/DTS 5.1 4K2K60Hz_420 HD Audio 7.1 4K2K60Hz_444 Stereo Audio 2.0 4K2K60Hz_444 Dolby/DTS 5.1 4K2K60Hz_444 HD Audio 7.1 4K2K60Hz_444 Stereo Audio 2.0 HDR 4K2K60Hz_444 Dolby/DTS 5.1 HDR 4K2K60Hz_444 HD Audio 7.1 HDR USER_1 USER_2 COPY_FROM_TX_1...
- Page 14 ■ Output page The Output page shows the name and connection status of the output port, and the name can be modified by entering the corresponding name in the input box. The Scaler mode menu provides the following options: Bypass The output resolution follows the input source.
- Page 15 ■ CEC Page You can perform CEC management on this page: • Input Control: You can control the operation of each input source by pressing the icons on the page. (You can control multiple inputs simultaneously.) • Output Control: You can control the operation of each display, such as power on/off, volume +/-, active source switching.
- Page 16 ■ Network page The Network page allows you to configure the IP Settings and modify the Web login password. Notes: (1) The IP Settings is configurable only when the IP Mode is set to Static. (2) After modifying any settings on this page, it will redirect to the Web browser home page or the Web GUI login page.
- Page 17 ■ System page The System page allows you to set panel lock/unlock, beep on/off, select serial baud rate, update firmware, restore factory default settings and reboot the Matrix. 15 / 21...
- Page 18 8. RS-232 Control Commands The Matrix can also be controlled by RS-232 command. Connect the RS-232 port of Matrix to a PC with serial cables, and open a Serial Command tool (such as Comm Operator, Docklight or hercules, etc.) on the PC to send ASCII command to control the Matrix.
- Page 19 The ASCII command list about the product is shown as below. ASCII Command Serial port protocol: Baud rate：115200 (default), Data bits: 8bit, Stop bits:1, Check bit: None TCP/IP protocol port: 8000 The x, y, z and XXX are parameters. ! is the delimiter. ASCII Command Function Description Feedback...
- Page 20 s clear preset z! Clear stored preset z scenarios,z=1~8 clear preset 1 r preset z! Get preset z information, z=1~8 video/audio crosspoint Set the serial port baud rate of RS02 module, s baud rate xxx! Baudrate:115200 z=(115200,57600,38400,19200,9600,4800) r baud rate! Get the serial port baud rate of RS02 module Baudrate:115200 s id z!
- Page 21 Set input x EDID from default EDID z, x=0~4(0=all),z=1~23 1, 1080p,Stereo Audio 2.0 2, 11080p,Dolby/DTS 5.1 3, 11080p,HD Audio 7.1 4, 11080i,Stereo Audio 2.0 5, 11080i,Dolby/DTS 5.1 6, 11080i,HD Audio 7.1 7, 13D,Stereo Audio 2.0 8, 13D,Dolby/DTS 5.1 9, 13D,HD Audio 7.1 10, 14K2K30_444,Stereo Audio 2.0 11, 14K2K30_444,Dolby/DTS 5.1 12, 14K2K30_444,HD Audio 7.1...
- Page 22 r ip addr! Get network IP address IP address:192.168.1.100 Set subnet Mask:255.255.255.0 Please use "s net reboot!" s subnet xxx.xxx. command or repower device to Set network subnet mask apply new config! xxx.xxx! DHCP on, Device can't config subnet mask, set DHCP off first. r subnet! Get network subnet mask Subnet Mask:255.255.255.0...
- Page 23 9. Application Example 21 / 21...
- Page 24 Follow us DVDO │ +1.408.213.6680 22 / 21 │ support@dvdo.com │ www.dvdo.com...
