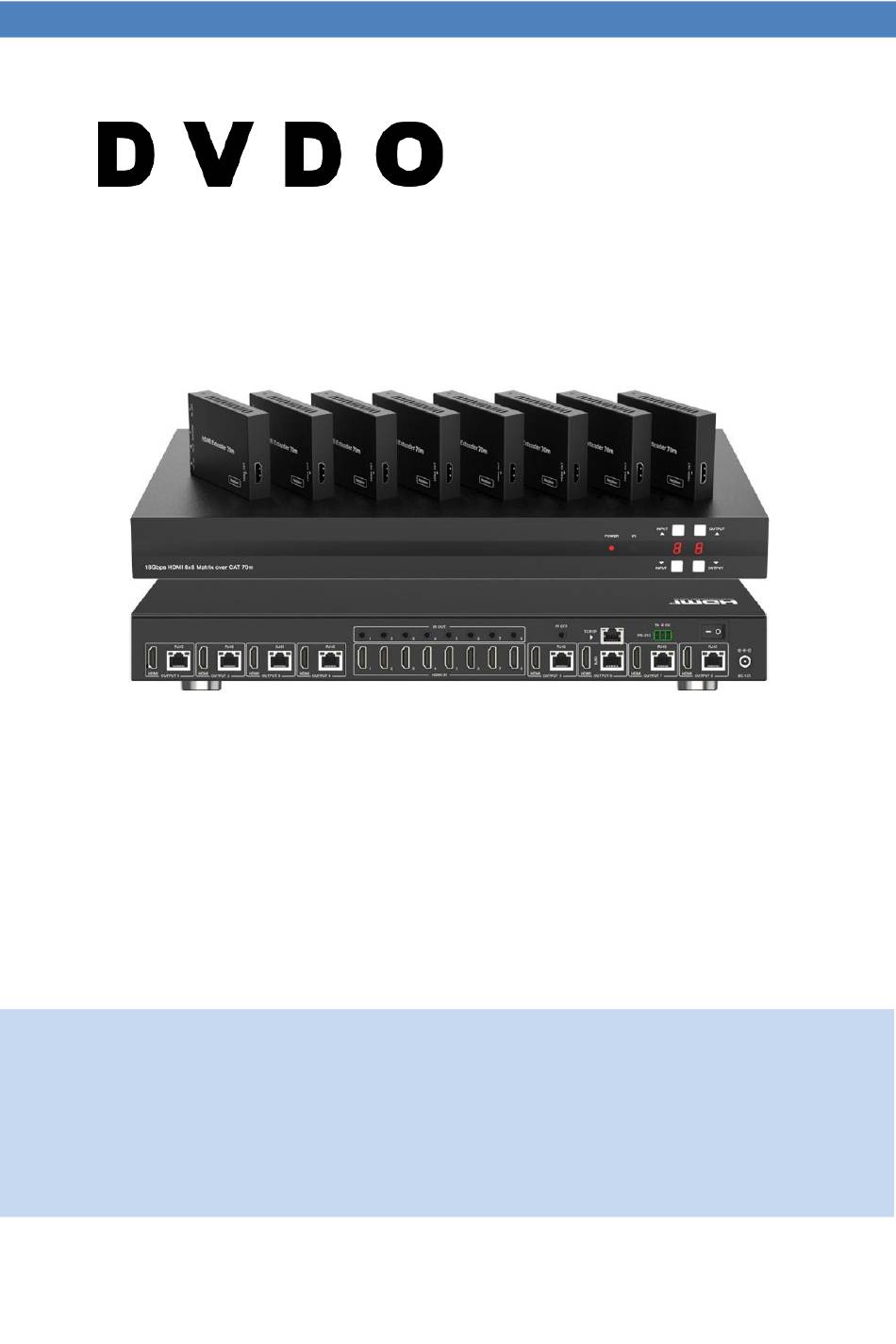

- Page 1 DVDO-Matrix-88-CAT 4K 8x8 HDMI Matrix Switcher with Mirrored Category Outputs User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
-
Page 2: Table Of Contents
Thank you for purchasing DVDO-Matrix-88-CAT For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The 18Gbps 8x8 HDMI Matrix can connect 8 HDMI sources to 16 displays. It features eight HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 18Gbps Video Resolution Up to 4K2K@50/60Hz (4:4:4) Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0） HDR10, HDR10+, Dolby Vision, HLG LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, HDMI Audio Formats... -
Page 5: Operation Controls And Functions
- 3 / 22 - Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 4K60 - 4K30 - 1080P60 - Resolution / Cable length Feet / Meters Feet / Meters Feet / Meters HDMI IN / OUT... -
Page 6: Cat Receiver Panel
Input and output switching operation: First press the OUTPUT button to select HDMI signal output channel 1~8 with the input Nixie tube showing the corresponding number, then press the INPUT button to select HDMI signal input channel 1~8 with the output Nixie tube showing the corresponding number. After two Nixie tubes flash 3 times, the input signal will be switched to the output channel successfully, and two Nixie tubes show “0A”. -
Page 7: Ir Remote
Name Function Description HDMI signal output port, connected to HDMI display device HDMI OUT such as TV or Projector with an HDMI cable. Connect to the CAT OUTPUT port on the Matrix with a CAT CAT IN cable. Power Indicator When the receiver is powered on, the power indicator lamp Lamp (Green) will be on. - Page 8 The first way: The IR window accepts the IR remote signal. When using the IR remote, the furthest distance is 7 meters and the angle is ± 45°. The diagram is shown as below: The second way: If the IR receiver window of the Matrix is blocked or the Matrix is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT”...
-
Page 9: Ir Cable Pin Assignment
7. IR Cable Pin Assignment 8. IR Control System The product supports one-way IR matrix function. When Matrix is connected to CAT Receiver through CAT6 cable, you can control the input source device (local end) by the IR control signal from the CAT receiver (remote end). -
Page 10: Edid Management
9. EDID Management This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 16 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through RS-232 control or Web GUI. RS-232 control operation: Connect the Matrix to PC with a serial cable, then open a Serial Command tool on PC to send ASCII command “s edid in x from z!”... - Page 11 The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0 3D, Dolby/DTS 5.1 3D, HD Audio 7.1 4K2K30_444, Stereo Audio 2.0...
-
Page 12: Web Gui User Guide
10. Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP address via RS-232 control. - Page 13 After entering the Web GUI page, there will be a Login page, as shown below: Select the Username from the list and enter the password. The default passwords are: Username User Admin Password user admin After entering the password, click the “LOGIN” button and the following Status page will appear.
- Page 14 ■ Video Page You can do the following operations on the Video page: ① Output: The current device’s OUTPUT port. You can select signal source for it. ② Input: You can click the drop-down menu to select signal source for the corresponding OUTPUT port .
- Page 15 Set EDID for the User Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will be a prompt, as shown in the following figure: Make sure to select the correct file, then you can check the name of the selected file. Select “User 1”...
- Page 16 ■ CEC Page You can perform CEC management on this page: ① Input Control: You can control the operation of each input source by pressing the icons on the page. (You can control multiple inputs simultaneously.) ② Output Control: You can control the operation of each display, such as power on/off, volume +/-, active source switching.
- Page 17 Click “OK” to search the IP Address again, as shown in the figure below. After searching is completed, it will switch to the login page, the default network setting is completed. Modify User Password Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”.
- Page 18 ■ System Page ① Panel Lock: Click to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available. ② Beep: Click to turn on/off the beep. ③ Serial Baud Rate: Click the value to set the Serial Baud Rate. ④...
-
Page 19: Rs-232 Control Command
FW version x.xx.xx System Setup help! List all commands help! r type! Get device model r type! DVDO-Matrix-88-CAT Get the unit all status: power, beep, lock, in/ out connection, video/ r status! Get device current status r status! audio crosspoint,... - Page 20 Example Command Code Function Description Feedback Default Setting Get the connection status of the r link in x! r link in 1! hdmi input 1: connect x input port，x=0~8(0=all) Get the connection status of the hdmi output 1: connect r link out y! r link out 1! y output port，y=0~8(0=all) Reset to factory defaults...
- Page 21 Example Function Description Feedback Command Code Default Setting Get cat output y stream status, enable cat output 1 r cat y stream! r cat 1 stream! y=0~8(0=all) stream set cat output y port dsc mode status Cat cable y=0~8(0=all) z=1~3 s cat 1 dsc mode distance 35M s cat y dsc mode z!
- Page 22 Command Code Default Setting Example Function Description Feedback EDID: 00 FF FF FF FF FF FF 00 ……… Get the EDID data of the hdmi r edid data hdmi y! r edid data hdmi 1! output y port，y=1~8 hdmi output 1: disconnect CEC Setting set input x power on by CEC,...
- Page 23 Example Function Description Feedback Default Setting Command Code Network Setting IP Mode: Static IP: 192.168.0.100 Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 r ipconfig! Get the Current IP Configuration r ipconfig! TCP/IP port=8000 Telnet port=10 Mac address: 6C:DF:FB:0D:59:74 Mac address: r mac addr! Get network MAC address r mac addr! 00:1C:91:03:80:01...
-
Page 24: Application Example
12. Application Example IR EXT The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - 22 / 22 -... - Page 25 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com - 23 / 22 -...
