DVDO MATRIX44 Operation Manual

4k ultra hd 4x4 fast hdmi matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

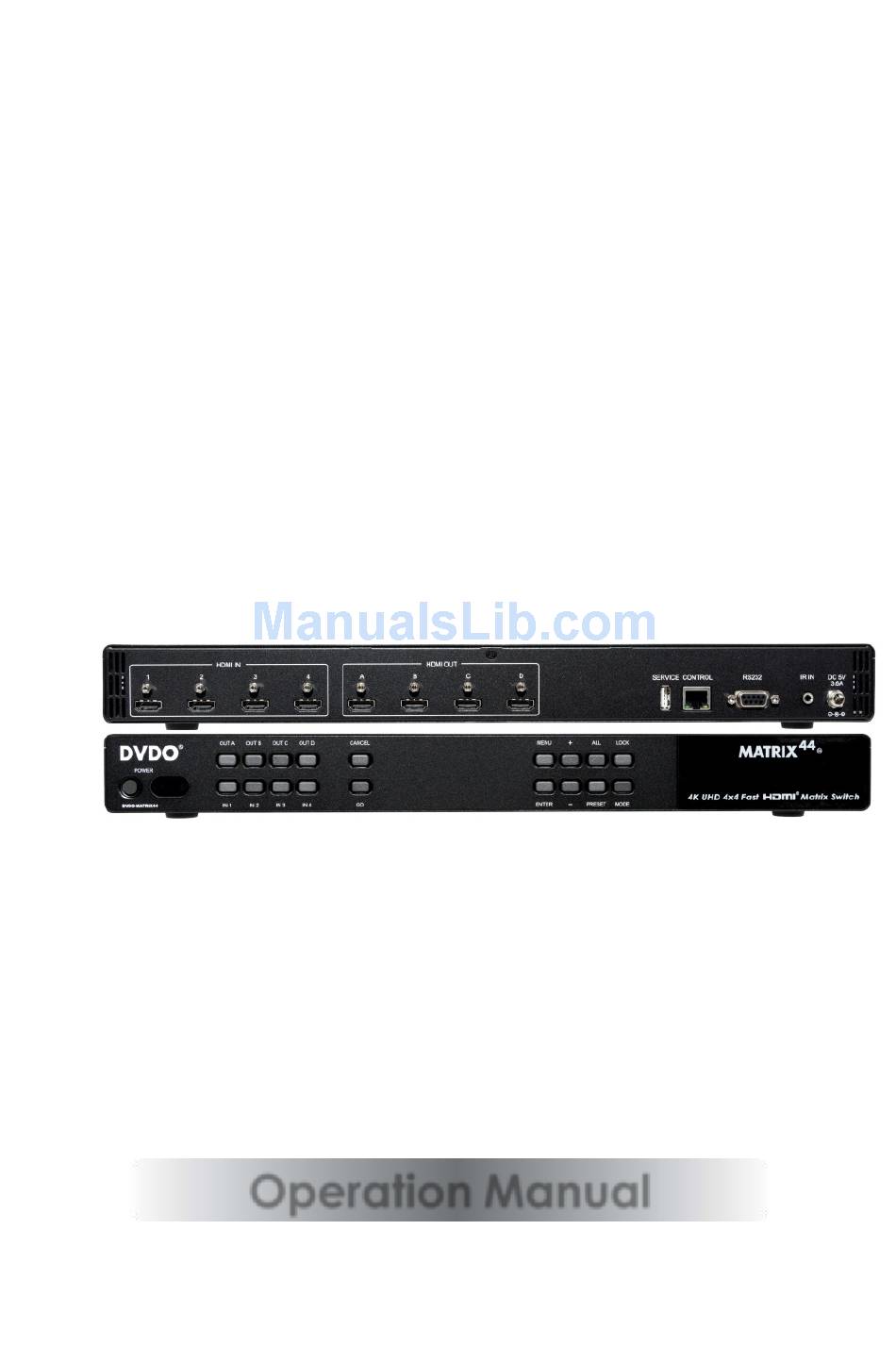

44
DVDO MATRIX
TM
4K Ultra HD 4x4 Fast HDMI® Matrix
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRIX44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DVDO MATRIX44

Summary of Contents for DVDO MATRIX44

  • Page 1 DVDO MATRIX 4K Ultra HD 4x4 Fast HDMI® Matrix Operation Manual...
  • Page 2 DVDO Matrix DISCLAIMERS DVDO assumes no responsibility for any inaccuracies that may be contained in this document. DVDO also makes no commitment to update or to keep current the information contained in this document. DVDO reserves the right to make improvements to this document and/or product at any time and without notice.

  • Page 3: Safety Precautions

    • Do not use near heat sources such as room heaters • Read all warnings • Use only accessories approved by DVDO including mounting brackets • Unplug the device during lightning storms or when unused for long periods of time •...
  • Page 4 DVDO Matrix • Operating temperature range: e.g. 0 to 40oC. • To disconnect power sources, remove the AC/DC adapters from the wall outlets and any USB connection.

  • Page 5: Table Of Contents

    DVDO Matrix CONTENTS 1. INTRODUCTION ................... 1 2. APPLICATIONS .................... 1 3. PACKAGE CONTENTS .................. 1 4. SYSTEM REQUIREMENTS ................1 5. FEATURES ..................... 2 6. OPERATION CONTROLS AND FUNCTIONS ..........3 6.1 Front Panel ....................3 6.2 Rear Panel ....................4 6.3 LCD Menu ....................

  • Page 6: Introduction

    DVDO Matrix 1. INTRODUCTION DVDO Matrix44 is a 4K 4x4 matrix switch supporting up to 300MHz 4K 50/60Hz in and out. Designed for both home and commercial use, it provides intuitive control and fast switching for installers and home theater enthusiasts. With multiple control options and professional features, it’s ready for fast and reliable integration in your next multi-...

  • Page 7: Features

    DVDO Matrix 5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • Supports four HDMI inputs and four HDMI outputs • Displays any of four High-Definition sources on four HDTV displays Simultaneously with fast switch • 3DTV Pass-Through •...

  • Page 8: Operation Controls And Functions

    DVDO Matrix 6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 8 9 11 13 10 12 POWER: Press this button to turn ON the device and the LED will illuminated. IR Window: This IR Receiver receives the remote control signal from the package include remote control only.

  • Page 9: Rear Panel

    DVDO Matrix 6.2 Rear Panel HDMI IN: Connect from source equipment such as Blu-ray/DVD/ PS3 players, Set-Top-Box or any HDMI equipped source device. HDMI OUT: Connect to HDMI TV/display. SERVICE: This slot is reserved for firmware update use only. CONTROL: RJ-45 connector for Ethernet control up to 10/100Mbps RS232: Serial control port.

  • Page 10: Lcd Menu

    DVDO Matrix 6.3 LCD Menu The front panel display provides access to all functions and settings. Note that the Web GUI is normally easier to use and should be the first choice for a new installation. Items are selected by first pressing the MENU button, scroll using +/- and make a selection using Enter.
  • Page 11 DVDO Matrix EDID All Sink A Copy Output A 8bit/2D/PC display EDID M/1080p If “All” is set in Sink B Copy Output B the EDID mode, display EDID this chooses Sink C Copy Output C what EDID is display EDID...
  • Page 12 DVDO Matrix EDID IN1 Same EDID All Select Input 1’s Same EDID EDID These allow Meaning, same individual EDID as is selection of selected in the EDID for a ALL above or particular input. This overrides the ALL setting EDID IN2 Same EDID All Select Input 2’s...
  • Page 13 DVDO Matrix Network Setup IP Mode DHCP , Static Static These are Setup Static IP 192.168.1.10 standard Mask Setup Static 255.255.255.0 networking Netmask settings for the Ethernet port. Gate Setup Static 192.168.1.1 After making Gateway any changes Re-Link. After be sure to click...
  • Page 14 DVDO Matrix Sink A Info Type, Manuf. Detect and Analysis Output A Shows display’s EDID information on each Sink Content: type(HDMI/ DVI/VGA), Manufactory/ Model number Native Content: native resolution Video Format Content: deep color, 2D or 3D, 4K2K Audio Format...

  • Page 15: Remote Control

    DVDO Matrix 6.4 Remote Control POWER: Press this button to switch the system ON/OFF. OUT A/D: Press these buttons one a time along with an IN buttons to select an input source for an output display. MENU: Press to enter into the menu.

  • Page 16: Rs-232 Protocols

    DVDO Matrix 6.5 RS-232 Protocols CDPS-4H4HFS Remote Control Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 17: Rs-232 Commands

    DVDO Matrix 6.6 RS-232 Commands Command Name Description Description of parameter POWER OFF NONE POWER ON NONE IPCONFIG DISPLAY THE CURRENT NONE IPCONFIG SIPADDR XXX.XXX. SET ETHERNET IP AD- XXX=0~255 XXX.XXX DRESS SNETMASK XXX. SET ETHERNET XXX=0~255 XXX.XXX.XXX NETMASK SGATEWAY XXX.
  • Page 18 DVDO Matrix EDIDIN N1 N2 SET INPUT N1 EDID N1=1-4 SOURCE N2=0-9 HDCPIN SHOW ALL INPUT NONE HDCP STATUS HDCPIN N1 SHOW INPUT N1 HDCP N1=1-4 STATUS HDCPIN N1 N2 SET INPUT N1 HDCP N1=1-4 ON/OFF N2=(0)OFF (ON) PRESET SHOW ALL PRESET...

  • Page 19: Web Gui Control

    DVDO Matrix MATRIXMODE SHOW MATRIX NONE CURRENT MODE MATRIXMODE N1 SET MATRIX MODE N1=0-1 SHOW DESCRIPT OF NONE UNIT REBOOT SYSTEM REBOOT NONE HELP SHOW COMMAND NONE LIST HELP N SHOW DESCRIPT OF N : command name COMMAND Note: All the RS-232 command will be not executed unless followed with a carriage return.
  • Page 20 DVDO Matrix Click on Matrix Control for outputs and EIDID selections. Click on Settings to set each input’s HDCP Control and Preset Configuration.
  • Page 21 DVDO Matrix Click on Network Configuration to set the device’s IP configuration. Once the changes are saved, the system will reset the IP address on the device automatically and user will need to re-enter the IP address to continue the Web GUI function.

  • Page 22: Connection Diagram

    DVDO Matrix 7. CONNECTION DIAGRAM Blu-ray/DVD/ Blu-ray/DVD/ PS3 Players PS3 Players Blu-ray/DVD/ Blu-ray/DVD/ PS3 Players PS3 Players HDMI IN HDMI OUT SERVICE CONTROL RS232 IR IN DC 19V 60° OUT A IN 1 OUT B TAKE IN 2 OUT C...

  • Page 23: Specifications

    DVDO Matrix 8. SPECIFICATIONS Frequency Bandwidth 340Mbps to 3Gbps Input Ports 4 x HDMI 1 x USB (Service only) 1 x 10/100 Ethernet 1 x RS-232 1 x IR Output ports 4 x HDMI Resolution 480i~1080p@50/60, 1080p@24, 4K x 2K...
  • Page 24 DVDO Matrix DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50 1920x1080p@60 1920x1200@60(RB) 3840x2160@24/25/30/50/60 4096x2160@24...

  • Page 25: Acronyms

    DVDO Matrix Audio Sampling Rate Up to 192 kHz HDMI input (Up to 192kHz) HDMI output LPCM 2CH LPCM 5.1CH LPCM 7.1CH Dolby Digital 2~5.1CH/ DTS 2~5.1CH Dolby True-HD/ DTS-HD Master Audio Audio Format LPCM 2/5.1/7.1CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH...

  • Page 26: Fcc Interference And Compliance Statement

    DVDO Matrix FCC Interference and Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 27: Warranty And Getting Help

    During the warranty period, the defective hardware of DVDO products will be either repaired or replaced, with new or like new products, at the discretion of DVDO except in the cases listed in the Limitation of Liability Clause of this document...
  • Page 28 International Limited Warranty will be honored only if claims are made within the warranty period. For notifications to DVDO or products outside the warranty period, the process will be the same, but charges may apply. Contact details may be obtained on DVDO website http://www.dvdo.com/support/rma.aspx.
  • Page 29 International Warranty Warranty may be valid when a DVDO product is purchased in one country and transferred to another country, without voiding the warranty. Please be advised that service availability and response time may vary from country to country.
  • Page 30 MERCHANTABILITY, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON DVDO’S PART, AND IT NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PARTY TO ASSUME FOR DVDO ANY OTHER LIABILITIES. THE FOREGOING CONSTITUTES THE BUYER’S SOLE AND EXCLUSIVE REMEDY FOR THE...

  • Page 31: Legal Notices

    DVDO Matrix Getting Help For service and support, contact your local dealer. To find your dealer or to contact DVDO support, go to: www.dvdo.com/support or call 1-888-651-1765 for worldwide technical support DVDO Inc. 1140 East Arques Avenue, Suite 700 Sunnyvale, CA 94085 Legal notices ®...
