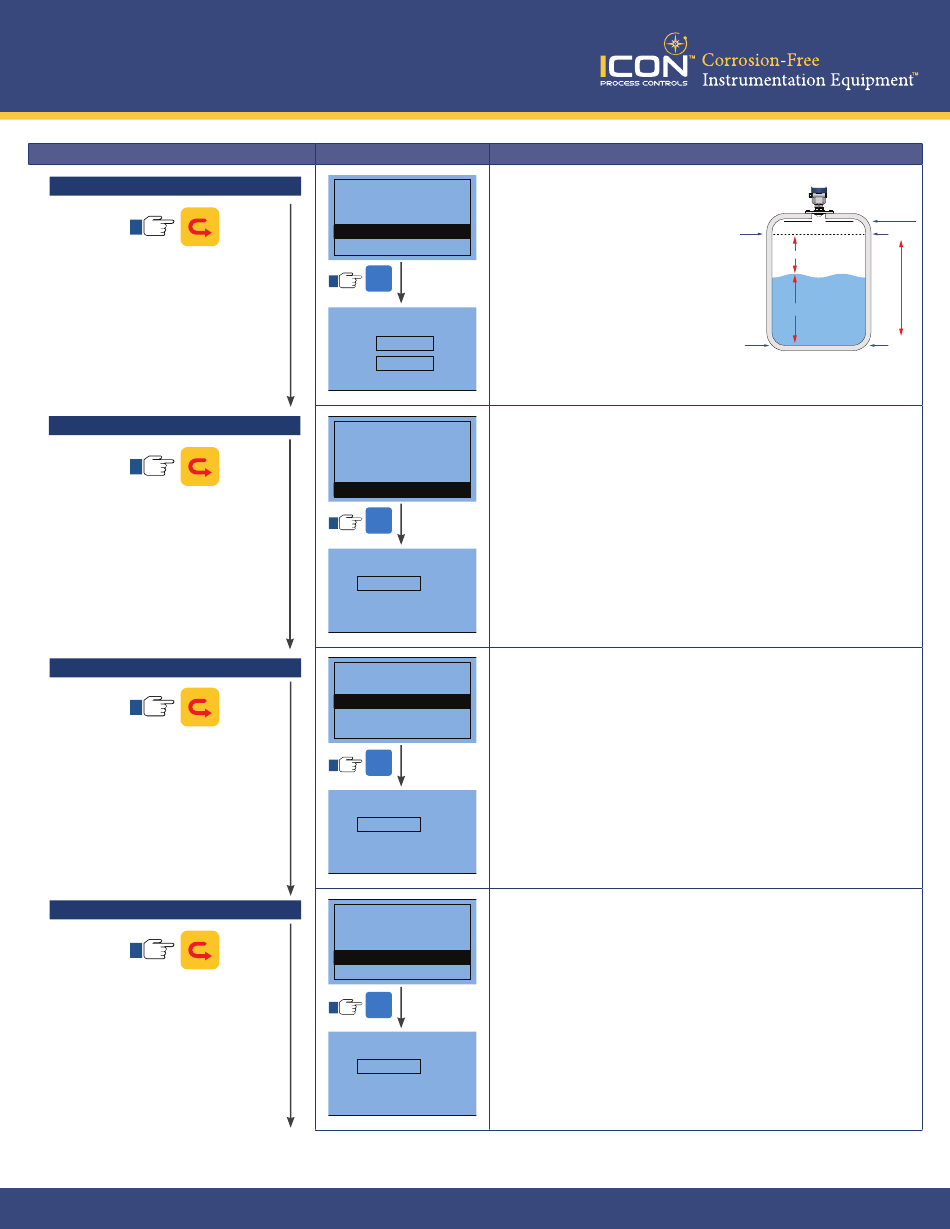

ICON LevelPro ProScan 2 Series Quick Start Manual page 9

LevelPro — ProScan
®
Radar Level Sensor (80GHz)
STEPS
High/Low Calibration (4-20mA)
6
Near Range
7
Far Range
8
Damping
9
25-0724 © Icon Process Controls Ltd.
2 Series
®
DISPLAY
▶
Application Type
Vess. Type
Mater. Type
High/Low Calib.
Near Range
OK
High/Low Calib.
Low 40.00 in
0.00 in
High
▶
Application Type
Vess. Type
Mater. Type
High/Low Calib.
Near Range
OK
Near Range
2.00 in
▶
High/Low Calib.
Near Range
Far Range
Damping
Sensor Mode
OK
Far Range
48.00 in
▶
High/Low Calib.
Near Range
Far Range
Damping
Sensor Mode
OK
Damping
2 s
OPERATION
High / Low Calibration Points
Set High & Low Level Values
1. Level :
Low = 4mA Setpoint
High = 20mA Setpoint
2. Space :
Low = 20mA Setpoint
High = 4mA Setpoint
Eg: For a level measurement from
0 ~ 40in, set low calibration point as
40in and high calibration point as 0.
Near Range
Sets the minimum measurement distance to filter out false
echoes from nearby structures.
Factory Default : 2 in
Far Range
Defines the maximum measurement distance for detecting
the liquid surface accurately.
Factory Default : 48.00 in.
Damping
Reduces the impact of sudden level fluctuations for a
smoother output signal.
Factory Default : 2 Sec
Measurement
Location
High 100%
Calibration
Point
Space
Level
Low
Calibration
Point
0%
9
