LevelPro — ProScan
®
Radar Level Sensor (80GHz)

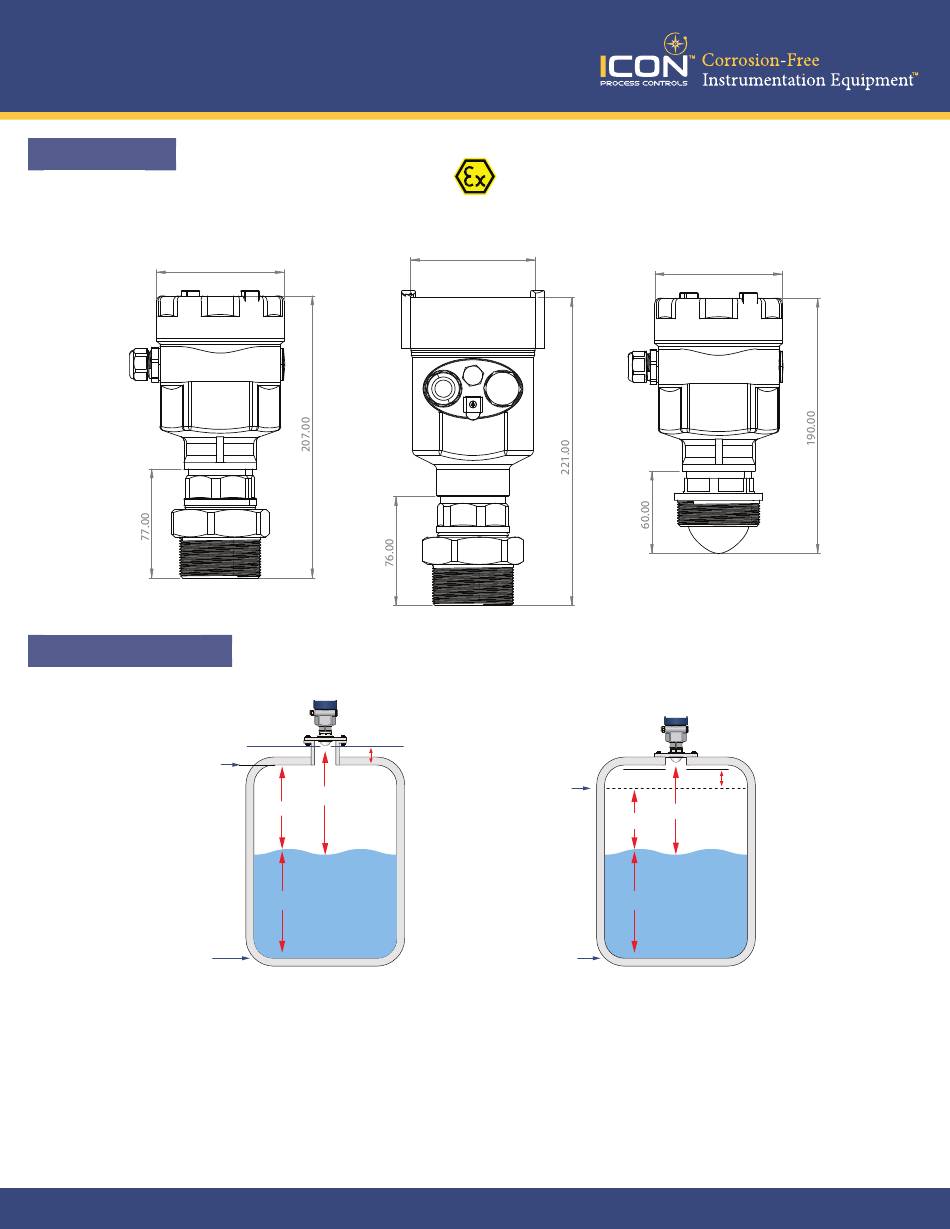

Dimensions
PS28000S
GFPP + 316SS + PTFE
Tank Installation
High
Calibration
Point
Low
Calibration
Point
Above are some examples of different tank configurations. The ProScan® 2 radar sensor has a blanking area also
referred to as the dead band or dead zone. This is the area just below the tip of the sensor that consists of signal
echo's that are returned too quickly to differentiate the false signal from the measuring echo, there this space is
not measured. Special consideration is required during the installation to ensure the blanking area is taken into
account.
25-0724 © Icon Process Controls Ltd.
2 Series
®
316SS + Epoxy Coated Cast Iron+PTFE
93.00
Max Config
Distance
Space
Level
Tall Riser | Transducer Inside Riser
PS28000S-XP
96.50
High
Calibration
Point
Low
Calibration
Point
Small Riser | Transducer Within the Tank
PS28000
GFPP + PTFE
93.00
Max Config
Distance
Space
Level
5
