LevelPro — ProScan
®
Radar Level Sensor (80GHz)

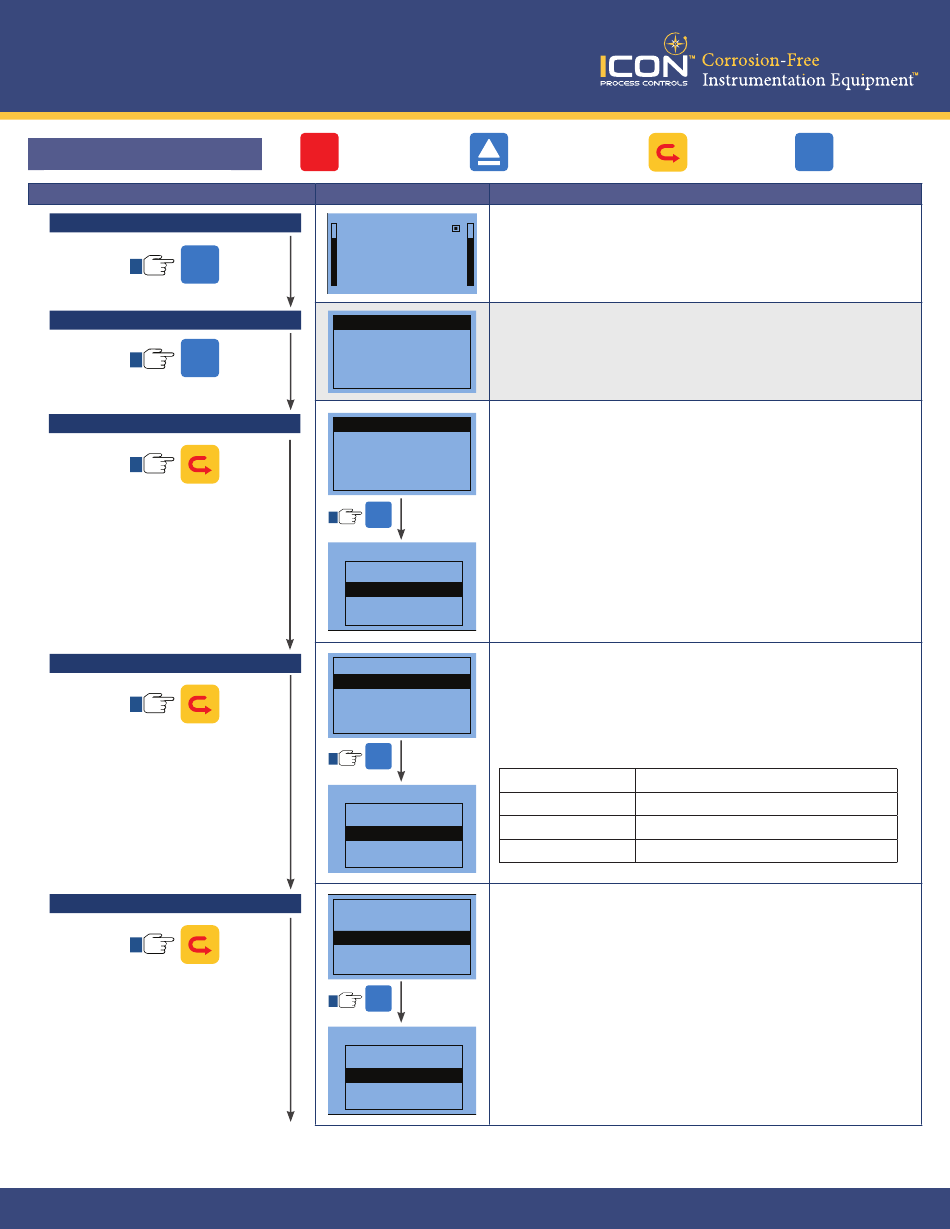

Basic Programming
STEPS
Home Screen
1
OK
Main Menu
2
OK
Application Type
3
Vessel Type
4
Material Type
5
25-0724 © Icon Process Controls Ltd.
2 Series
®
BK
Return to Previous
DISPLAY
▶
31.9157
31.916 in
11.489mA
28.0°C
LEVELPRO 0000
▶
Basic
Advanced
Diagnostics
Display
Information
▶ Application Type
Vess. Type
Mater. Type
High/Low Calib.
Near Range
OK
Application Type
Solid
Liquid
▶
Application Type
Vess. Type
Mater. Type
High/Low Calib.
Near Range
OK
Vess. Type
Large Vol.
Medium Vol.
Fine Vol.
▶
Application Type
Vess. Type
Mater. Type
High/Low Calib.
Near Range
OK
DK
>10
3-10
<3
Change Digit Values
OPERATION
Home Screen
Main Menu
Select Basic
Application Type
Select type of application
Factory Default : Liquid
Vessel Type
Vessel Type affects the radar algorithm by adjusting fill /
empty rate, damping time, and tracking status automatically.
Factory Default : Medium Volume
Large volume Filling Speed: 0.1m/min Damping time: 60s
Medium Volume Filling Speed: 1m/min Damping time: 10s
Fine volume Filling speed: 10m/min Damping time: 0s
Demo Damping time: 0s
Material Type
This setting is critical for complex applications like low
Dielectric Constant (DK) liquid measurement and must be
selected based on the application.
Factory Default : >10
OK
Move Selection Select/Confirm
