FIIDO L3 Manual

Product introduction

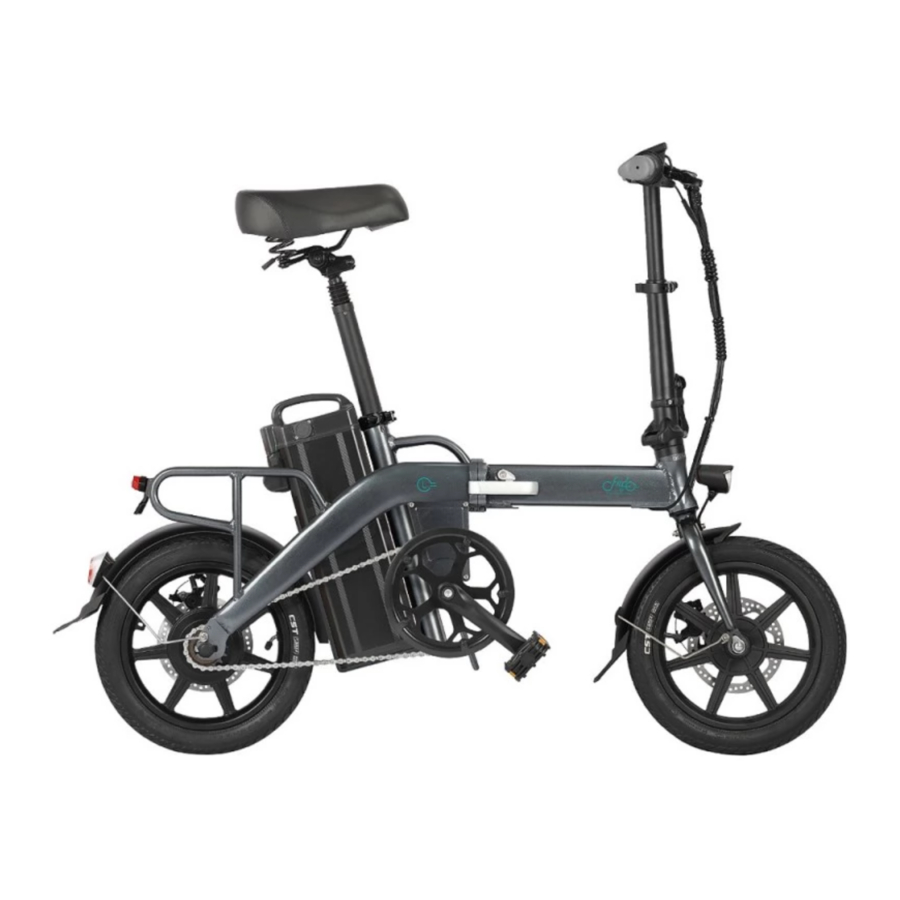

Product overview

L3 is an electric bicycle of long range series of Fiido, which is suitable for long distance cycling. Ergonomically designed aluminum alloy frame with concise design style, light and foldable. Equipped with 350W powerful motor and the top speed can reach to 18.6 MPH. The 48V 23.2AH high-capacity battery provides a range of up to 120 miles in power assisted mode. And the battery can be directly disassembled and charged. The maximum load is 330lbs.

L3 has 3 riding modes and 3 power assisted mode to provide a richer riding experience. The body can be folded in three sections and the volume after folding is only 0.17m³. It can be easily carried or transported between different transit mass, making it the best partner for urban commuting with long endurance.

Packing list

Product parts

Accessories

Tools

*Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged, please contact the official after-sales team asap.

Product Diagrams

*Non professionals are forbidden to assemble and disassemble the battery. Please contact after-sales team for assistance.

Function DESC

Handlebar

Battery

Using Guide

Installation guide

The basic installation of the bike has been completed before out of the factory. When you receive the bike, you only need to unfold the bike, install the seat and pedals.

Unfold the stem

1. Unfolding the bike, close the frame clamp and lock it.

2. Open the quick release, adjust the handlebar to the right position. Lift the stem and close the stem clamp to settle it.


Please operate by the instruction, otherwise may cause wire breaking.

3. and close the safety hook.

4. Adjust the riser to the suitable height, and close the riser clamp.
   The height of the adjustment can NOT exceed the safety line.

5. Adjust the handlebar direction, to make it at an angle of 15°-20° with the horizontal line, then close the quick release, to complete the unfolding stem.


Install the seatpost

1. Open the seat clamp.

2. insert the seatpost.

3. Lock the seat clamp, and flip the saddle backwards.

4. Adjust the seatpost battery to suitable height, the recommended height is when the saddle is level with the user's pelvis when standing naturally.
   (The minimum height of the saddle cannot exceed the limit of the battery seat tube, and the maximum height cannot exceed the MIN line of the safety scale of the seatpost battery.)


Unfold the pedal

Rotate the crank arm to a suitable position. Push the pedal downwards to unfold it.

First time using

Before riding, please follow the installation guide to install components properly, check whether the firmware is loose, ensure sufficient power, and take appropriate protection for riding.

1. Adjust the seat
   Please adjust the seat to the appropriate riding height according to your height.
   (the recommended height is when the saddle is level with the user's pelvis when standing naturally. The height of the adjustment can NOT exceed the safety line.)

2. Turn on the power
   Unlock the battery to the "ON" position.

3. Adjust the power assisted gear
   Switch and choose the riding mode according to the cycling road conditions and personal needs.

   1. Electric mode: Equipped with pure electric mode, gently press down the electric mode button to switch to the pure electric mode, the stronger the press, the faster the speed
   2. Power assisted mode: Equipped with 3 power assisted gears, click the power assisted gear button to switch the gear. The 1st gear is suitable for relatively flat road conditions, the more/higher the road slope, the larger gear can be adjusted accordingly.

Attention: When the bike is on PAS 3 status, click the power assisted gear button again and the bike will be on PAS 0 status, by then the gear display won't be lighted and the The motor will be turn off. But other components can work as well. The bike will be on pedalling mode.

4. Start riding
   Please take corresponding protection before starting riding.

5. Braking introduction
   The left side is front brake, the right side is rear brake. (The UK version: Left side for rear brake right side for front brake.)
   While riding, it's recommended to use the rear brake first, then the front brake to slow down the speed to stop, in order to avoid falling accident caused by balance problems from urgent front wheel brake.


Charging instructions

The battery comes with a small amount of electricity, before the first time use, please make sure to charge it to full power before riding.

Charging

1. Charging connection: Connect the charging interface of the charger to the charging port, then connect the power plug of the charger to the power socket.

2. Fully charged: When the indicator light of the charger is red, means it's normal charging. When the light is green means it's fully charged.
3. Charging hour: Charging hour is around 10-12 hours, The duration depends on the situation.
4. Disconnect charging: When the indicator light turns green, means it's fully charged. Unplug the power plug first, then remove the charging interface from the battery. Close the battery dust cover.
5. Charging mode: The bike supports two charging modes: vehicle charging and disassembly battery charging. Please see below for how to remove the battery.

1. Charger has high voltage device, DO NOT repair without permission. In order to avoid danger, battery and charger should be placed away from children. There should be no inflammable and explosive objects around the batteries (such as car seat cushions, sofas, etc.)
2. Keep the battery in a ventilated and dry place, and make sure NOT to charge in open-air place, to avoid electrical short circuit fire and other accidents caused by rain and other factors, and to prevent liquid and metal particles into the electrical parts.
3. Make sure to charge for more than two hours every month under chronically store condition. Do not store the battery at a loss of power. Once the battery voltage reaches the discharge state, will cause unrecoverable damage.

Charging can be allowed on public charging equipment, but the matching between the battery and the charging equipment should be fully considered.

If there's any odor or high temperature during charging, please stop charging immediately and contact after-sales team for assist.

How to draw out the battery

1. Press and switch the key to "UNLOCK" position

2. Press the bar and lift the saddle

3. Grip the handle and draw out the battery


Folding instructions

Lower the seatpost

Open the seatpost clamp, to keep it in open status. Gently press down the seatpost to the bottom. Press down the seat clamp to keep it in closed status.

Fold the stem

Open the stem safety hook, turn the stem clamp downward to keep it in open status. Gently turn the stem downward to the bottom, to finish the stem folding.

Fold the pedal

Press the pedal latch and fold it upwards to complete the folding.

Fold the bodywork

1. Open the safety hook, open the frame clamp outward and keep it in open status.

2. Fold the front part of the bike backward, to finish the bike folding.


Maintenance precautions

Using precautions

1. Users should pay attention to the safety of bicycle use
   1. No parking in building foyers, evacuation stairs, walkways and safety exits.
   2. No charging in residential buildings. Charging should be far away from combustible, and no longer than 9 hours.
   3. Prevent water from entering electrical parts. When cleaning the bike, avoid water impact on charging port, wiring harness connectors, fuse and other electrical parts.
   4. When adjusting the height of the saddle, the safety line mark of the seatpost should not be exposed.
   5. Users and dealers must not wiring and modifying structure and performance without permission. Such as: change the battery configuration, the circuit, increase the lamp power, increase the sound and other modification.
   6. Please do not change the instrument background parameters settings at will, otherwise normal riding cannot be guaranteed.
   7. Please do not unplug any live wire interface in the powered-on state to avoid damage to accessories (such as instrument panel, controller, etc.)
   8. Do not touch the live part of the bike with wet hands or metal conductors. Such as: charging port, charger plug etc.
   9. When replacing circuit breakers or fuses, use circuit breakers or fuses of the specified models and specifications. Do not short-fuse wires. The circuit breaker or fuse card slot should be in good contact, or may cause the accidents.
   10. Please do not disassemble electrical parts without authorization to prevent liquid and metal particles from infiltrating into electrical parts.
   11. Do not ride on bad weathers, or place the bike in a long-term exposure to the sun/rain to avoid parts aging.
   12. If scrub the bike is needed, please wipe the body with a neutral lotion mixed with tap water. Do not remove and wash internal parts to avoid short circuit.

Non-professionals are strictly prohibited to repair. In case of failure, please contact the after-sales team or authorized professional maintenance station for maintenance.

2. Riding safety: please follow the national and local traffic laws and regulations, pay attention to riding safety.
   1. User must be over 16 years old. Do not lend to people who can not operate the bike to avoid the harm.
   2. Please ride in Non-Motor Vehicle Lane, with the max speed no more than 25km/h.
   3. Please carry persons or goods in accordance with local laws and regulations while riding.
   4. Please be sure to wear a suitable safety helmet and fasten the helmet wind strap while riding.
   5. The braking distance will be extended in rainy and snowy days, please pay attention to slow down, and try to avoid to ride on bad weathers. Inner short circuit and electrical parts damage may be caused if the water level reaches the center of the hub of the rear wheel motor, please noticed.
   6. Please follow the local traffic rules carefully. No riding after drinking, and make sure to always ride with both hands.
   7. Bright colors, relaxed, and comfortable suit are suggested for riding, and wear low-heeled shoes for riding is necessary.
3. Examination before riding: please repair in time or go to the local maintenance point for repair, if there's any abnormality.
   1. Please confirm the normal power use when using the kickstand and the rear wheel is off the ground.
   2. Turn on the power, check whether the indicator light is normal, and the power supply is sufficient.
   3. Check whether the mechanical bell and front/rear light are in good condition.
   4. Confirm whether the handlebar and seatpost are adjusted to the appropriate position, that fastening screws and quick release are fastened. Be attention that the safety line should not be exposed.
   5. Check the front/rear brake handle, brake adjustment should make the brake reliable and flexible reset.
   6. Check whether the tire pressure is normal, no cracking, abnormal wear, nails, stones, glass and other sharp objects.
   7. Check whether the front/rear wheel screws are locked, the side, rear and pedal reflectors are in good condition.
   8. Check whether the front /rear lighting is normal and ensure that lights can be good used while riding.
   9. Check the fastening state of each axle to ensure the front/rear axles are in a reliable state.
   10. Check whether the frame clamp is locked before riding.

abnormal tire pressure, tire cracking damage and abnormal wear are the main causes of steering failure and tire burst.

4. Attentions on the road
   1. For your safety and the safety of others, please obey the local traffic rules consciously.
   2. Before riding, be sure to wear a safety helmet, take safety precautions and maintain a natural posture.
   3. At the beginning of riding, please slowly accelerated, to avoid the energy waste or accidents.
   4. For a longer service life of the battery and motor, when start riding or climbing, please try to use power assisted mode.
   5. To ensure safety, economic speed should be used as far as possible, and reduce frequent braking, frequent start as far as possible, to save electricity.
   6. avoid the phenomenon of tightening the speed control handle after braking.
   7. Riding on muddy areas or uneven roads should use pedal mode as far as possible.
   8. Braking distance should be appropriately increased on bad weathers, please be concentrated and careful while riding.
   9. Equipped with overcurrent protection. The circuit may be overcurrent under the condition of higher uphill Angle and higher headwind speed. It's better to use pedal mode, otherwise, power consumption may be too fast to affect the range, motor and electrical appliances burn. The body and electrical parts should not be electriferous, the insulation resistance value shall not be less than 2M ω.
   10. Controller has undervoltage protection, the power will be cut off automatically if the voltage is lower than the undervoltage value, to maintain the service life of the battery
5. Attentions of pushing and parking
   1. The power should be off when pushing the bike, to avoid the accidents.
   2. Parking should be on the level ground, and maintain the bike as power off status.
   3. For your safety, please maintain and clean your bike regularly to keep it in the best condition.

Product maintenance & repair

1. The bicycle has been checked and adjusted before out of factory, any problems please contact Fiido After Sales Team for support.
2. Normally the spokes of the wheel should be adjusted once after half a month of riding to ensure the best use.
3. Make sure to check the storage capacity of the tire regularly to keep it in normal use.
4. Make sure to check the main parts like handlebar, stem. saddle, seatpost, front/rear and centre axle, flywheel and chain, wheels, to keep it in normal use, nut and screw loose should be tightened in time if it loose.
5. In use, it's recommended to add 3# calcium base lubricating oil (butter) every six months to the parts that need lubrication (such as front/middle/rear axle bearing, front fork bowl group, foot pedal bearing, etc.). Add 30# oil to the chain, brake cable, support and other parts every two months
6. If the vulnerable parts are damaged, such as: brake line, brake skin, brake pad, bulb, fuse, etc. Please find the local maintenance center to replace, but be sure to replace with the same model specifications of the parts.

Handlebar core screw fastening torque, combined handlebar joint screw fastening torque, saddle clamp screw fastening torque, front wheel fastening torque recommended torque is not less than 18NM;The recommended torque for fastening the central shaft lock mother and rear wheel is not less than 30NM. Handlebar and saddle tube safety line should not be exposed outside the body.

Motor maintenance & repair

1. Equipped with rare earth permanent magnet DC brushless, external rotor hub motor, without any deceleration mechanism and carbon brush, which is basically maintenance-free.
2. Do not open the motor base and end cover after sealing.
3. Keep the motor clean, no foreign matter, corrosive liquid, gas into the motor, do not knock and bake the motor shell, so as not to damage the motor.

If the fault cannot be removed, please consult after-sales team.

Battery maintenance & repair

1. Lithium battery has the characteristics of large capacity, long life, maintenance-free, light weight, pollution-free etc. Its service life is closely related to using mode. Do not store chronically, please form the habit of frequent charging.
2. It is recommended to charge for 7 - 9 hours each time, and the longest time is not more than 1 day. Lithium battery has no memory effect, can be used with the charge.
3. Make sure to charge for more than two hours every month under chronically store condition. Do not store the battery at a loss of power. Once the battery voltage reaches the discharge state, will cause unrecoverable damage.

Do not dismantle old battery without authorization, it should be collected according to regulations.

Do not near the fire or high temperature source, or throw it into the fire, or expose it to the sun.

Reflex reflector cautions

1. Reflex reflector device must not be missing, if it's missing, please immediately contact after-sales team for replacement, and the installation position should be consistent with the original bike.
2. Fiido reflex reflector has been fixed on the vehicle, please do not change the position, modify, disassemble, etc.
3. Make sure to check the normal function of reflex reflector before each use, and keep the surface clean.
4. The reflector device must not be covered by luggage, children's chairs, clothing and other objects, otherwise it may cause safety hazard.

Troubleshooting methods

Specifications

* The above data allow for 5% manufacturing tolerances.
* After receiving the bike, there may be some differences between individual accessories and display drawings, which are different due to the different batches, and do not affect the use.

Safety precautions

1. Please follow the precautions in this instruction to effectively reduce risks. When entering public areas, please obey national and local regulations, remain vigilant while riding, and maintain a reasonable safe distance from other people and vehicles.
2. Please operate by the instruction of the user manual, the loss caused by not following the instructions shall be borne by oneself.
3. This product is not professional off-road bike, do not use this product according to off-road standards.
4. For the first time riding, please keep away from children, pedestrians, pets, vehicles, or other obstaclesand potential hazards. Please be familiar with the bike before riding on public main roads.
5. Before each ride, please carefully check the parts and screws of the bike to make sure it is working well. If there's any unusual noise, please stop riding immediately, and contact after-sales team for help.
6. To avoid injuries, please read and follow all "Caution", "Danger" and "warning" instructions in this user manual. Please don't speeding, and do not ride in motorized road under any circumstances.
7. For safety consideration, user must be over 16 years old. Users under the following circumstances are strongly not recommended to use this product:
   • People affected by alcohol or drugs.
   • People who are unable to engage in strenuous physical activity due to illness.
   • People who are unable to maintain balance or whose balance is impaired by motor skills.
   • People whose weight exceeds the max load limit (max load is 120KG/265lb).
   • Pregnant woman.
8. Please ride carefully in snow, rain, wet road, ice and other bad weather. Do not ride over too high or too large obstacles, otherwise it's very likely to lose balance or grip and cause injuries.
9. Do not attempt to charge while the charger or power supply is wet, please follow the local safety regulations if you need to charge the bike in public area.
10. For effective protection and as convenient as possible for yourself, please be sure to use Fiido specific parts.
11. If you need to retrofit your bike, Please follow the local laws and regulations, after consulting with Fiido after-sales team, then proceed with caution. Serious injury and/or damage caused by unauthorized modification will result in the void of warranty.

The following statement: The A-weighted emission sound-pressure level at the driver ears is less than 70dB(A)

* All pictures are for reference only.
