Manufactured by:

Backyard Discovery

3305 Airport Drive, Pittsburg, KS 66762

800-856-4445

BBackyard Discovery Australia Pty Ltd 2/7 Hood Street, Hampton VIC 3188, Phone: 1800-087-941

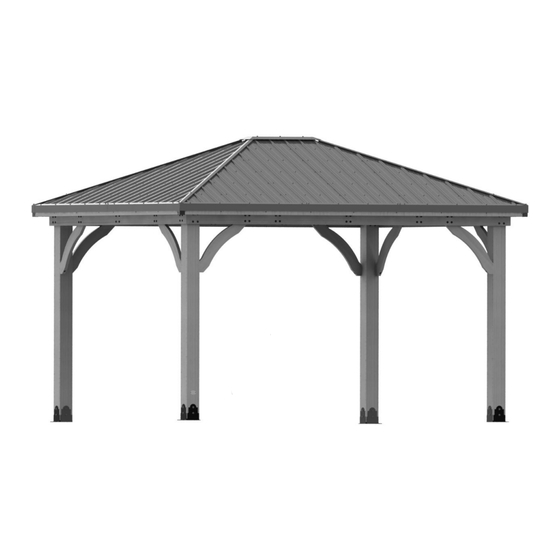

14x12 Barrington Gazebo AUS

MODEL # : 2306110B

Please visit www.backyarddiscovery.com

For the most up to date assembly manual, to register your product, or to order

replacement parts Para obtener instrucciones en español, visite

www.backyarddiscovery.com

INS-2306110B-A-14x12 BARRINGTON GAZEBO AUS ENG 8-13-2024

Need help?

Do you have a question about the Barrington and is the answer not in the manual?

Questions and answers

Summary of Contents for Backyard Discovery Barrington

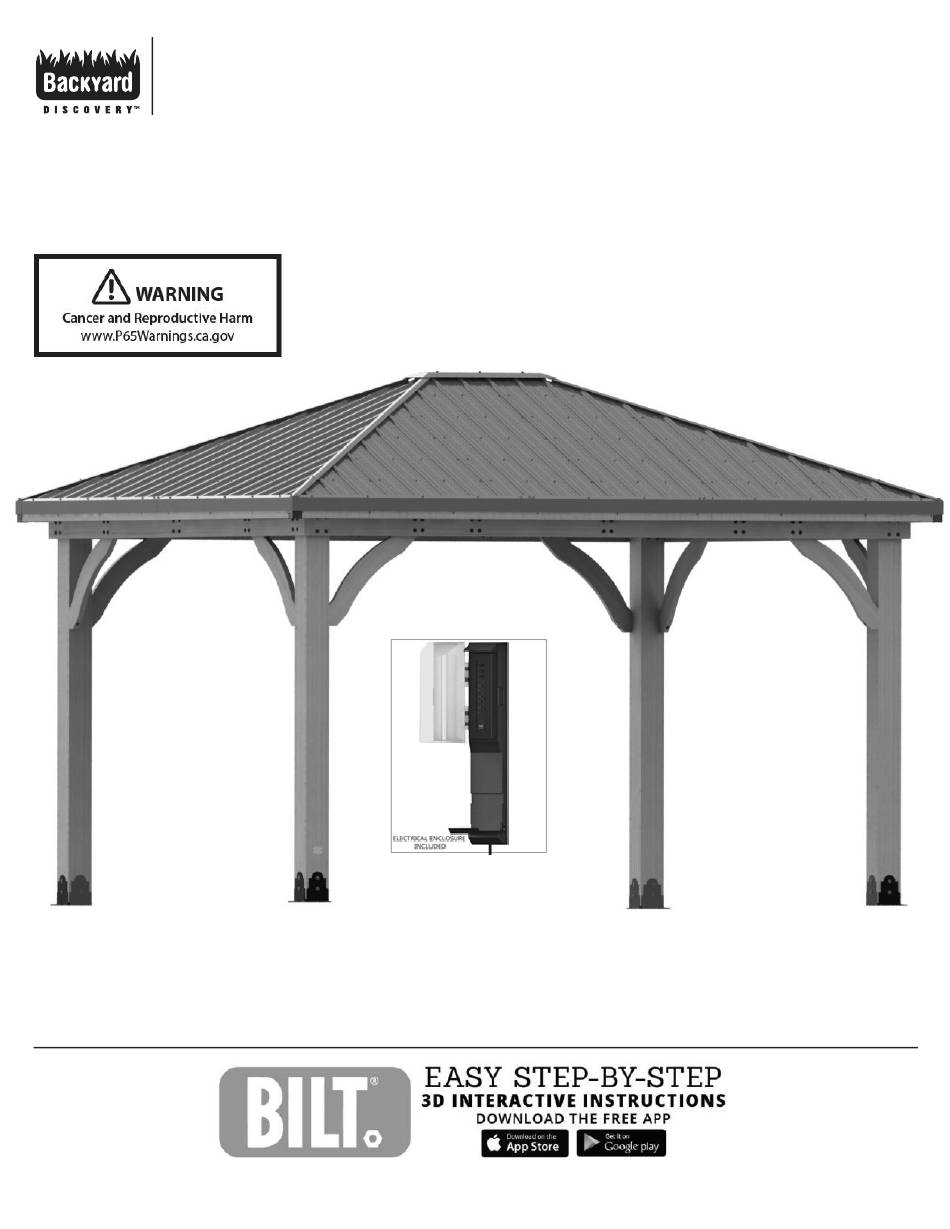

Page 1 14x12 Barrington Gazebo AUS MODEL # : 2306110B Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite www.backyarddiscovery.com INS-2306110B-A-14x12 BARRINGTON GAZEBO AUS ENG 8-13-2024...
Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 12'-10 1/16" 3913mm 12'-4 1/16" 3761mm 11'-10 1/16" 3609mm NOTE: DIMENSIONS ARE TO ANCHOR PLATES MOUTED TO POSTS EXCEPT WHERE NOTED 4" 101mm 4 ANCHORS METAL ANCHOR PER POST PLATES 3 3/8" 86mm...
Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) ROOF SUPPORT- W4L15194 1"x3 3/8"x54 1/8" (24x86x1374) ROOF JOIST- W4L15195 1"x3 3/8"x61 1/4" (24x86x1556) ROOF JOIST - W4L15197 ROOF SUPPORT - W4L15201 1"x3 3/8"x22 7/8" (24x86x580) 1"x3 3/8"x38 13/16" (24x86x986) ROOF JOIST - W4L15203 ROOF JOIST - W4L15202 1"x3 3/8"x10 11/16"...
Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) PURLIN - W4L15222 1"x3 3/8"x43 11/16" (24x86x1110) PURLIN - W4L15223 PURLIN - W4L15224 1"x3 3/8"x54 9/16" (24x86x1385) 1"x3 3/8"x63 1/8" (24x86x1603) PURLIN- W4L15228 PURLIN - W4L15225 1"x3 3/8"x58 5/16" (24x86x1481) 1"x3 3/8"x51"...
Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) RAFTER- W4L15196 1 3/8"x3 3/8"x76 3/4" (36x86x1949) RAFTER- W4L15198 1 3/8"x3 3/8"x67 5/8" (36x86x1717) RAFTER- W4L15199 RAFTER- W4L15200 1 3/8"x3 3/8"x44 1/16" (36x86x1119) 1 3/8"x3 3/8"x20 1/2" (36x86x520) RAFTER - W4L15207 1 3/8"x3 3/8"x69"...
Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) CORBEL W/TAG- W2A03199 CORBEL- W2A03198 1 7/16"x6 7/16"x35 1/8" (36x163x893) 1 7/16"x6 7/16"x35 1/8" (36x163x893) BEAM - W4L15191 BEAM- W4L15192 1 3/8"x5 1/4"x45 3/16" (36x134x1148) 1 3/8"x5 1/4"x52 1/16" (36x134x1322) BEAM - W4L15193 BEAM - W4L15234 1 3/8"x5 1/4"x49 15/16"...
Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100792 LAG SCREW WH BLK H100460 LAG SCREW H100171 BOLT WH BLK (11) 1/4x3 WH BLK (16) 1/4x1 (32) 1/4x1 H100488 BOLT WH BLK (16) 1/4x2 H100471 LAG SCREW WH BLK (32) 5/16x1 1/2 T-NUT BLK H100398 H100379...
Page 9 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100385 SCREW PFH BLK (180) H100536 SCREW PWH BLK H100759 SCREW H100392 SCREW PWH BLK H100200 SCREW PFH BLK TAPPING 8x1 1/4 (36) (56) 8x3/4 (16) (18) 8x1 1/2 1/4x3/4 H101030 SCREW CONFIRMAT BLK H100382 SCREW PFH BLK H100833...
Page 10 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01193 A4M01191 PANEL BRACKET PANEL BRACKET FAN MOUNT A4M02501 BRACKET A4M01239 01238 PANEL BRACKET PANEL BRACKET ( 2) A4M01228 RAFTER CLIP (16) A4M01237 ROOF SUPPORT (12) SPLICE CLIP A4M01184 PANEL SUPPORT BRACKET A4M01794 STEEL POST A6P00308...
Page 11 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M02885 EDGE TRIM LONG A4M02869 EDGE TRIM SHORT A4M02821 EDGE TRIM MEDIUM A4M02825 EDGE TRIM CORNER SPLICE A4M01205 METAL SPACER A4M02886 RIDGE PEAK CAP A4M02822 EDGE TRIM SPLICE...
Page 12 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M02879-2 29 GA STEEL SHEETING A4M02880-1 29 GA STEEL SHEETING A4M02879-1 29 GA STEEL SHEETING A4M02880-2 A4M02881-1 29 GA STEEL SHEETING 29 GA STEEL SHEETING A4M02881-2 29 GA STEEL SHEETING A4M02882-2 29 GA STEEL SHEETING 9220409...
Page 13 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M02883-1 29 GA STEEL SHEETING A4M02883-2 29 GA STEEL SHEETING A4M02884-1 29 GA STEEL SHEETING A4M02850 A4M02867 RIDGE CAP CHANNEL SHORT RIDGE CAP SPLICE ASSEMBLY A4M02884-2 29 GA STEEL SHEETING A4M02847 RIDGE CAP CHANNEL A4M02826...
Page 14 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
Page 15 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver 3/8 &...
Page 16 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
Page 17 STEP 1 - 12FT POST ASSEMBLY POST - W2A03202 6"x6"x89 1/2" (152x152x2274) POST - W2A03203 A6P00308 6x6 POST FOOT 6"x6"x89 1/2" (152x152x2274) TIP: FOR EASE OF ASSEMBLY, SAW HORSES ARE • RECOMMENDED FOR STEPS 1 THROUGH 3 ALIGN POST FOOT AND DRILL 1/8"...
Page 18 STEP 2 - 12FT BEAM ASSEMBLY BEAM - W4L15240 BEAM - W4L15241 1 3/8"x5 1/4"x77" (36x134x1150) 1 3/8"x5 1/4"x67 13/16" (36x134x1723) INSERT T-NUTS FIRST TIP: SAW DUST CAN BE LEFT BEHIND IN BOLT HOLES. IF YOU HAVE TROUBLE WITH • BOLTS ENGAGING, USE A LONG SCREWDRIVER TO REMOVE THE DEBRIS.
Page 19 STEP 3 - 12FT BEAM ASSEMBLY BEAM- W4L15192 1 3/8"x5 1/4"x45 3/16" (36x134x1148) INSERT T-NUTS FIRST...
Page 20 STEP 4 - 12FT BEAM ASSEMBLY 12 FT BEAM ASSEMBLY FROM PREVIOUS STEPS...
Page 21 STEP 5 - 12FT BEAM ASSEMBLY 12FT BEAM ASSEMBLY FROM PREVIOUS STEPS INSERT T-NUTS FIRST...
Page 22 STEP 6 - 12FT BEAM ASSEMBLY CORBEL- W2A03198 1 7/16"x6 7/16"x35 1/8" (36x163x893) INSERT T-NUTS FIRST TIPS: • INSERT BOLTS FIRST FOLLOWED BY LAG SCREWS • TO AVOID WOOD SPLITTING, MAKE SURE LAG SCREWS GO INTO PILOT HOLES...
Page 24 STEP 7 - 14FT BEAM ASSEMBLY BEAM - W4L15193 BEAM - W4L15234 1 3/8"x5 1/4"x49 15/16" (36x134x1268) 1 3/8"x5 1/4"x77" (36x134x1956) INSERT T-NUTS FIRST...
Page 25 STEP 8 - 14FT BEAM ASSEMBLY CORBEL- W2A03198 1 7/16"x6 7/16"x35 1/8" (36x163x893) BEAM - W4L15191 CORBEL W/TAG- W2A03199 1 3/8"x5 1/4"x52 1/16" (36x134x1322) 1 7/16"x6 7/16"x35 1/8" (36x163x893) INSERT T-NUTS FIRST HAND TIGHTEN ONLY...
Page 26 STEP 9 - 14FT BEAM ASSEMBLY 14FT BEAM ASSY FROM PREVIOUS STEPS...
Page 27 STEP 10 - 14FT BEAM ASSEMBLY (x2) 12FT POST ASSEMBLY (x2) 14FT BEAM ASSEMBLY TIPS: THREE PEOPLE ARE HELPFUL FOR THIS STEP. • MOVE THE 12FT POST ASSEMBLIES TO THEIR FINAL LOCATION WITH SOMEONE HOLDING EACH ASSEMBLY UPRIGHT. • USING A THIRD PERSON, CONNECT THE 14FT BEAM ASSEMBLY TO THE POSTS TO MAKE THE GAZEBO FRAME. •...
Page 29 STEP 11 CRITICAL: SQUARE UNIT BEFORE PROCEEDING TO NEXT STEPS. ONCE SQUARE, TIGHTEN ALL HARDWARE.
Page 30 STEP 12 - ROOF SUPPORT ASSEMBLY A4M01234 POST CLIP DO NOT OVERTIGHTEN...
Page 31 STEP 13 - ROOF SUPPORT ASSEMBLY ROOF SUPPORT- W4L15160 1"x3 3/8"x24" (24x86x610) A4M01184 PANEL SUPPORT BRACKET INSERT T-NUTS FIRST...
Page 32 STEP 14 - ROOF SUPPORT ASSEMBLY ROOF SUPPORT- W4L15194 ROOF SUPPORT - W4L15201 1"x3 3/8"x54 1/8" (24x86x1374) 1"x3 3/8"x38 13/16" (24x86x986) A4M01237 ROOF SUPPORT SPLICE CLIP REPEAT FOUR TIMES INSERT T-NUTS FIRST...
Page 33 STEP 15 - ROOF SUPPORT ASSEMBLY (x4) ROOF SUPPORT FROM PREVIOUS STEP REPEAT ON OPPOSITE END OF ROOF SUPPORT BOARD...
Page 34 STEP 16 - ROOF SUPPORT ASSEMBLY A4M01205 METAL SPACER A4M02886 RIDGE PEAK CAP TIPS: REMOVE PROTECTIVE BLUE FILM BEFORE ASSEMBLY • 2886...
Page 35 STEP 17 - SUPPORT ASSEMBLY • THREE PEOPLE ARE HELPFUL FOR THIS STEP. • POSITION A PERSON ON A LADDER IN THE CENTER OF THE BASE. • LIFT ROOF SUPPORT UP AND OVER THE 14FT SIDE AND INSERT INTO CORNER POST CLIPS.
Page 36 STEP 18 - ROOF SUPPORT ASSEMBLY REPEAT ON ALL POSTS...
Page 37 STEP 19 - 14FT ROOF PANEL ASSEMBLY ROOF JOIST - W4L15197 1"x3 3/8"x22 7/8" (24x86x580) A4M01193 A4M01191 PANEL BRACKET PANEL BRACKET INSERT T-NUTS FIRST HAND TIGHTEN ONLY...
Page 38 STEP 20 - 14FT ROOF PANEL ASSEMBLY STEP 20 - 14FT ROOF PANEL ASSEMBLY STEP 20 - 14FT ROOF PANEL ASSEMBLY ROOF JOIST- W4L15195 ROOF JOIST- W4L15195 ROOF JOIST- W4L15195 1"x3 3/8"x61 1/4" (24x86x1556) 1"x3 3/8"x61 1/4" (24x86x1556) 1"x3 3/8"x61 1/4" (24x86x1556) ROOF JOIST- W4L15213 ROOF JOIST- W4L15213 ROOF JOIST- W4L15213...
Page 39 STEP 21 - 14FT ROOF PANEL ASSEMBLY RAFTER- W4L15196 1 3/8"x3 3/8"x76 3/4" (36x86x1949) RAFTER- W4L15198 1 3/8"x3 3/8"x67 5/8" (36x86x1717) RAFTER- W4L15199 1 3/8"x3 3/8"x44 1/16" (36x86x1119) RAFTER - W4L15210 1 3/8"x3 3/8"x67 5/8" (36x86x1717) RAFTER- W4L15200 RAFTER - W4L15211 RAFTER- W4L15212 1 3/8"x3 3/8"x20 1/2"...
Page 40 STEP 22A - 14FT ROOF PANEL ASSEMBLY ROOF JOIST- W4L15215 1"x4 7/16"x84 1/4" (24x112x2140) TIP: • RAFTERS MAY NEED TO BE LOOSENED TO ATTACH Q02 TO H05/H10...
Page 41 STEP 22B - 14FT ROOF PANEL ASSEMBLY TIPS: USING THE Q02 BOARD AS A GUIDE AND A 1/8" DRILL BIT, DRILL PILOT HOLES INTO THE H05 BOARD • USING THE DIMENSION BELOW. REPEAT ON OPPOSITE END WITH H10 BOARD. •...
Page 42 STEP 22C - 14FT ROOF PANEL ASSEMBLY TIP: • LOOSEN HARDWARE TO ADJUST FOR SQUARING IF NEEDED CRITICAL: • SQUARE UNIT BEFORE PROCEEDING TO NEXT STEPS. • THE BELOW DIMENSIONS ARE CRITICAL TO THE FINAL ROOF ASSEMBLY. • MEASUREMENTS SHOULD BE WITHIN +/- 1/4". •...
Page 43 STEP 23 - 14FT ROOF PANEL ASSEMBLY PURLIN - W4L15227 PURLIN - W4L15223 PURLIN- W4L15235 1"x3 3/8"x54 9/16" (24x86x1385) 1"x1 5/16"x27 1/2" (24x34x698) 1"x3 3/8"x51 3/16" (24x86x1299) PURLIN - W4L15224 PURLIN - W4L15225 PURLIN - W4L15222 1"x3 3/8"x63 1/8" (24x86x1603) 1"x3 3/8"x51"...
Page 44 STEP 24 - 14FT ROOF PANEL ASSEMBLY A4M02884-1 29 GA STEEL SHEETING A4M02881-1 29 GA STEEL SHEETING A4M02880-1 A4M02879-1 29 GA STEEL SHEETING 29 GA STEEL SHEETING A4M02883-1 A4M02882-1 29 GA STEEL SHEETING 29 GA STEEL SHEETING TIPS: REMOVE PROTECTIVE BLUE FILM •...
Page 45 STEP 25 - 14FT ROOF PANEL ASSEMBLY A4M02847 RIDGE CAP CHANNEL A4M02850 RIDGE CAP CHANNEL SHORT TIPS: POSITION THE RIDGE CAP CHANNEL OVER THE EDGE OF THE ROOF PANELS • WITH THE WIDER SIDE OF THE CHANNEL ON THE BOTTOM. MAKE SURE THE PANELS ARE FULLY SEATED INTO THE CHANNEL.
Page 46 STEP 26 - 14FT ROOF PANEL ASSEMBLY...
Page 48 STEP 27 - 12FT ROOF PANEL ASSEMBLY 01238 PANEL BRACKET A4M01239 ( 1) PANEL BRACKET ROOF JOIST - W4L15203 1"x3 3/8"x10 11/16" (24x86x272) INSERT T-NUTS FIRST HAND TIGHTEN ONLY...
Page 49 STEP 28 - 12FT ROOF PANEL ASSEMBLY ROOF JOIST- W4L15216 1"x3 3/8"x44 1/2" (24x86x1130) ROOF JOIST- W4L15220 1"x3 3/8"x44 1/2" (24x86x1130) ROOF JOIST - W4L15206 1"x3 3/8"x53 3/16" (24x86x1351) ROOF JOIST - W4L15205 A4M01237 ROOF SUPPORT 1"x3 3/8"x53 3/16" (24x86x1351) SPLICE CLIP INSERT T-NUTS FIRST...
Page 50 STEP 29 - 12FT ROOF PANEL ASSEMBLY RAFTER- W4L15219 RAFTER - W4L15207 RAFTER- W4L15209 1 3/8"x3 3/8"x21 15/16" (36x86x557) 1 3/8"x3 3/8"x69" (36x86x1752) 1 3/8"x3 3/8"x21 15/16" (36x86x557) RAFTER- W4L15217 RAFTER - W4L15208 1 3/8"x3 3/8"x69" (36x86x1752) 1 3/8"x3 3/8"x45 7/16" (36x86x1155) RAFTER W4L15218 1 3/8"x3 3/8"x45 7/16"...
Page 51 STEP 30A - 12FT ROOF PANEL ASSEMBLY ROOF JOIST- W4L15221 ROOF JOIST- W4L15204 1"x4 7/16"x80 1/2" (24x112x2044) 1"x4 7/16"x65 15/16" (24x112x1675) TIP: • RAFTERS MAY NEED TO BE LOOSENED TO ATTACH Q03 AND Q01 TO H11/H12...
Page 52 STEP 30B - 12FT ROOF PANEL ASSEMBLY TIPS: USING THE Q03 BOARDS AS A GUIDE AND A 1/8" DRILL BIT, DRILL PILOT HOLES INTO THE H12 • BOARD USING THE DIMENSION BELOW. REPEAT ON OPPOSITE END USING Q01 AS A GUIDE TO DRILL PILOT HOLES INTO THE H11 BOARD. •...
Page 53 STEP 30C - 12FT ROOF PANEL ASSEMBLY TIP: • LOOSEN HARDWARE TO ADJUST FOR SQUARING IF NEEDED CRITICAL: • SQUARE UNIT BEFORE PROCEEDING TO NEXT STEPS. • THE BELOW DIMENSIONS ARE CRITICAL TO THE FINAL ROOF ASSEMBLY. • MEASUREMENTS SHOULD BE WITHIN +/- 1/4". •...
Page 54 STEP 31 - 12FT ROOF PANEL ASSEMBLY PURLIN- W4L15239 PURLIN W4L15232 1"x1 5/16"x12 3/4" (24x34x324)) 1"x3 3/8"x27 1/4" (24x86x692) PURLIN- W4L15228 PURLIN- W4L15229 PURLIN- W4L15231 1"x3 3/8"x58 5/16" (24x86x1481) 1"x3 3/8"x43 7/8" (24x86x1114) 1"x3 3/8"x51 7/16" (24x86x1307) PURLIN- W4L15230 1"x3 3/8"x75 11/16" (24x86x1922) PURLIN- W4L15237 1"x3 3/8"x56"...
Page 55 STEP 32 - 12FT ROOF PANEL ASSEMBLY A4M02884-2 A4M02882-2 A4M02883-2 29 GA STEEL SHEETING 29 GA STEEL SHEETING 29 GA STEEL SHEETING A4M02879-2 29 GA STEEL SHEETING A4M02881-2 A4M02880-2 29 GA STEEL SHEETING 29 GA STEEL SHEETING TIPS: • REMOVE PROTECTIVE BLUE FILM •...
Page 56 STEP 33 - 12FT ROOF PANEL ASSEMBLY A4M02847 RIDGE CAP CHANNEL A4M02850 RIDGE CAP CHANNEL SHORT TIPS: POSITION THE RIDGE CAP CHANNEL OVER THE EDGE OF THE • ROOF PANELS WITH THE WIDER SIDE OF THE CHANNEL ON THE BOTTOM. MAKE SURE THE PANELS ARE FULLY SEATED INTO THE •...
Page 57 STEP 34 - 12FT ROOF PANEL ASSEMBLY...
Page 59 STEP 35A - 12FT ROOF PANEL ATTACHMENT TIPS: THREE PEOPLE ARE HELPFUL FOR THIS STEP. • POSITION A PERSON ON A LADDER IN THE CENTER OF THE GAZEBO TO HELP • SUPPORT THE ROOF PANEL. WITH TWO PEOPLE, WORK THE PANEL UP WITHOUT SLIDING OR DRAGGING, •...
Page 60 STEP 35B - 12FT ROOF PANEL ATTACHMENT TIPS: IF NECESSARY, USE A LONG SCREWDRIVER OR CLAMPS TO HOLD PANELS IN PLACE. • INSERT BOLTS INTO THE FIRST HOLE FROM THE TOP OF THE H07 & H08 BOARDS. • HAND TIGHTEN ONLY...
Page 62 STEP 36A - 14FT ROOF PANEL ATTACHMENT TIPS: THREE PEOPLE ARE HELPFUL FOR THIS STEP. • • POSITION A PERSON ON A LADDER IN THE CENTER OF THE GAZEBO TO HELP SUPPORT THE ROOF PANEL. • WITH TWO PEOPLE, WORK THE PANEL UP, WITHOUT SLIDING OR DRAGGING, UNTIL IT MEETS THE ROOF SUPPORT FRAME.
Page 63 STEP 36B - 14FT ROOF PANEL ATTACHMENT TIPS: IF NECESSARY, USE A LONG SCREWDRIVER OR CLAMPS TO HOLD PANELS IN PLACE. •...
Page 64 STEP 37A - 14FT ROOF PANEL ATTACHMENT TIPS: • REPEAT STEPS 36A FOR SECOND 14FT ROOF PANEL. • IF NECESSARY USE A LONG SCREWDRIVER OR CLAMPS TO HOLD PANEL IN PLACE. HAND TIGHTEN ONLY...
Page 65 STEP 37B - 14FT ROOF PANEL ATTACHMENT STEP 37B - 14FT ROOF PANEL ATTACHMENT HAND TIGHTEN ONLY...
Page 66 STEP 38 - ROOF PANEL ATTACHMENT TIGHTEN ALL THE HARDWARE IN THE ORDER SHOWN BELOW. START AT THE TOP AND WORK YOUR WAY DOWN.
Page 67 STEP 39 - ROOF ASSEMBLY A4M01228 RAFTER CLIP (16) TIPS: ATTACH RAFTER CLIPS FIRST WITH 2" BOLTS. • USING THE BRACKET AS A TEMPLATE AND A 1/8" DRILL BIT, • DRILL PILOT HOLES FOR THE H100536 SCREWS. DRILL PILOT HOLES APPROXIMATELY 1/2" DEEP. •...
Page 68 STEP 40 - ROOF ASSEMBLY A4M01185 CORNER BRACKET...
Page 69 STEP 41 - 14FT ROOF TRIM A4M02885 EDGE TRIM MEDIUM A4M02869 EDGE TRIM SHORT A4M02822 A4M02825 EDGE TRIM CORNER EDGE TRIM SPLICE SPLICE TIPS: • START ON THE LEFT SIDE OF A 14FT PANEL. • SLIDE EDGE TRIM PIECES TOGETHER AS SHOWN BELOW. •...
Page 70 STEP 42 - 12FT ROOF TRIM A4M02821 EDGE TRIM LONG A4M02822 EDGE TRIM SPLICE TIPS: • START ON THE LEFT SIDE OF A 12FT PANEL. • SLIDE EDGE TRIM PIECES TOGETHER AS SHOWN BELOW. • MAKE SURE ALL PANELS ARE COVERED BEFORE INSTALLING SCREWS. •...
Page 71 STEP 43 - ROOF ASSEMBLY A4M02826 CORNER RIDGE CAP LONG TIPS: • SLIDE CORNER RIDGE CAP ONTO ROOF RIDGE CAP CHANNEL AS SHOWN. • DO NOT PUSH ALL THE WAY TO THE TOP. FLUSH WITH CORNER OF GAZEBO AS SHOWN. •...
Page 72 STEP 44 - ROOF ASSEMBLY A4M02867 RIDGE CAP SPLICE ASSEMBLY 2867...
Page 73 STEP 45 - ROOF ASSEMBLY...
Page 74 STEP 46 - GAZEBO ASSEMBLY A4M01794 STEEL POST STEEL POST PLATE A4M01793 ANCHORING PLATE...
Page 75 STEP 47 - GAZEBO ASSEMBLY o�o QTY PART NUMBER DESCRIPTION � H100536 SCREW PWH 8x1 1/4 BLK -uTSCOVER"Y" A4M02158 BYD ID TAG PATIO (x1) ..536 (x4) SCREW - 1 1/4" 2158 (x1) BYD ID TAG PATIO...
Page 76 STEP 48 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H100630 WASHER FLAT 8x19 BLK H100120 CONCRETE ANCHOR 1/4"x2" • • 120 (x16) CONCRETE SCREW-2" 630 (x16) WASHER - 8x19...
Page 77 STEP 49 - GAZEBO ASSEMBLY (OPTIONAL) "' "' "' QTY PART NUMBER DESCRIPTION H100382 SCREW PFH 8x1 3/4 BLK A4M02501 FAN MOUNT BRACKET (x1) -ATTACH YOUR ELECTRICAL BOX (SOLD SEPERATELY) WITH THE PROVIDED HOLES IN FAN MOUNT BRACKET. -PLACE FAN MOUNT BRACKET ON RIDGE BEAMS AND MOVE TO DESIRED FAN LOCATION. -ROTATE BRACKET UNTIL MOUNTING FLANGES ALIGHN BEST WITH RIDGE BEAMS.
Page 78 PowerPort™ 9220409 POWERPORT (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
