WiMiUS Q2 Manual

PACKAGE LIST

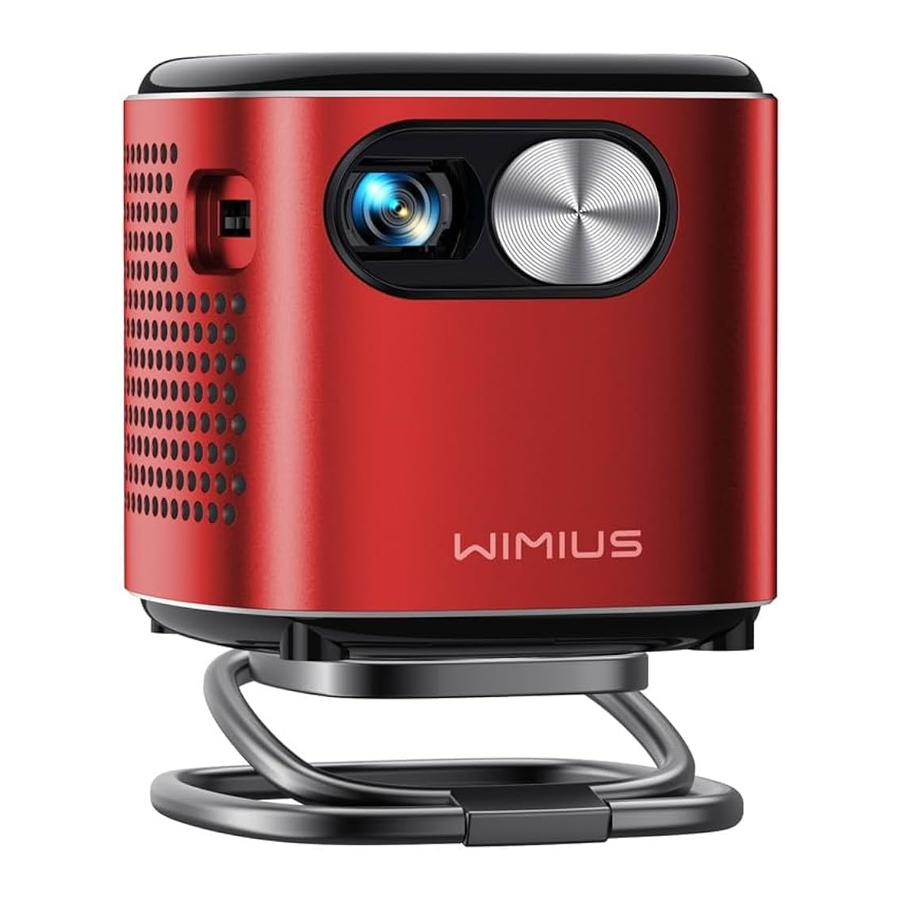

PRODUCT STRUCTURE

	Volume
	Touch Screen
	Menu (with lock screen function)
	Homepage
	Return

REMOTE CONTROL

Note: Install 2 pieces of AAA batteries(not included) into the remote before using.

PROJECTOR SPECIFICATIONS

IMAGE ADJUSTMENT

Focus Adjustment

Slide pinion on the left of the device to adjust sharpness.

Projection Mode

Select [Settings] menu -- Select [Projection] -- Select [Projection Mode], Press the arrow key to select and press "OK" to confirm the projection position.
There have 4 modes: Rotate Rear Ceiling/Rear/Front/Rotate Ceiling.

Keystone Correction

Auto Keystone Correction
Select [Settings] menu - Select [Projection] - Select [Keystone Correction] -Select [Auto Keystone Correction], and press "OK" to confirm.
The projector can auto adjust the vertical plane to get the rectangle image. The tilted angle doesn't exceed ±30°.

Manual Keystone Correction
Select [Settings] menu - Select [Projection] - Select [Keystone Correction] - Select [Manual Keystone Correction], press "OK" to pick the point you want to adjust at first, and then press the button "►" or " ▼ " to set the value (Horizontal and Vertical ±30°) needed as shown below.

Initial Angle Correction
Place the device on the horizontal plane and press the OK to correct it. Don't move the device during the correction.

Zoom Mode

There has 2 modes of Aspect Ratio: 16:9 or 4:3.
Select [Settings] menu - Select [Projection] - Select [Zoom Mode], the projection screen can be zoomed 50%~100%. Press the button "" to set the value needed.

Brightness Adjustment

Select [Settings] menu - Select [Projection] - Select [Brightness Adjustment], press "" or "" to adjust the brightness you need.

Other Setting

Pointer Speed

Select [Settings] menu - Select [Projection] - Select [Pointer Speed], press "" or "" to adjust the mouse pointer move speed you need.

Prevention of Accidental Contact

Select [Settings] menu - Select [Projection] - Select [Prevention of Accidental Contact], to choose the time period you need, prevent accidental operation.

SETTING UP THE PROJECTOR

Select The Input Signal Source
Choose the "Source" on the home page, select the desired input signal source (USB/HDMI/AV)
The device will detect the USB stick automatically, need to confirm whether to open.
When playing a video, you can press the "" button, to set the sound and mode of playback.

WIRELESS CONNECTION

For IOS System (Airplay)

Attention: Your device and the projector should be in the same Home WiFi.

1. Turn on the Network setting of projector.
2. Choose your Home WiFi to connect and enter the right password, then click "Link", please wait 3 seconds to establish the connection. Once connected, it will remember the password of the connected WiFi. (or turn on the Hotspot of projector directly)
3. Turn on the WiFi setting of your mobile device, then connect to the same Home WiFi (or the Hotspot of projector)
4. Then click "Airplay" on the smartphone
5. Select"Projector-7935"from the search results to connect.
6. Succeed.

For Android System (Miracast)

Attention: Your device and the projector should be in the same Home WiFi.

1. Turn on the Network setting of the projector.
2. Choose your Home WiFi to connect and enter the right password, then click "Link", please wait 3 seconds to establish the connection. Once connected, it will remember the password of the connected WiFi.
3. Turn on the WiFi setting of your mobile device, then connect to the same Home WiFi
4. Then click "Miracast" on the smartphone
5. Select"Projector-7935"from the search results to connect.
6. Succeed.

Note: the Hotspot can't support Android devices.

Eshare

Use your phone as the wireless mouse, keyboard, remote control, transform the way you control and engage with large-screen devices.

1. Connect your device to Home WiFi
2. Visit "http://192.168.43.1:8000" with a web browser or scan the QR-code to download app.
3. Launch Eshare and click "Projector-7935"to connect.

BLUETOOTH SETTINGS

Connect Bluetooth Speakers

1. Turn on your Bluetooth Speaker.
2. Turn on the [Bluetooth Settings] of your projector
3. Select your Bluetooth speaker to connect.
4. Succeed.

SIGNAL LINES CONNECTION

WiMiUS Q2 projector has 3 interfaces, HDMI ports/USB ports/3.5mm headphone output. Please select the correct connecting port to connect your device (PC, Phone, DVD Player, Sound bar, USB, PS4,etc.)

USB Multimedia Connecting

For USB devices, no need to choose the signal source. The machine will detect them automatically.

• Select the icon at the top right corner of the home page

Note: Support USB drive storage capacity max. To 32GB, and HDD storage capacity max to 1TB.

Connecting with Laptop

• Connect the projector with PC by HDMI cable.
• Choose the media signal channel:"HDMI".

Connecting with MacBook or Mac Book Air

Choose the media signal channel:"HDMI".

• Use a Type-C to HDMI adapter to connect your MacBook, or a Mini Display to HDMI adapter to connect with your MacBook Air (adapter not included).

Connecting with Sound bar

• Use the 3.5mm audio cable coming with the projector to connect with sound bar.
• Turn on the projector and the sound bar(choose AUX mode).
• For more details, please contact the seller at support01@wimius.com.

Connecting with Fire TV Stick

• Plug the TV stick into the HDMI port of the projector.
• Choose the media signal channel:"HDMI".

Connecting with XBOX/PS4

• Choose the media signal channel:"HDMI".
• Use HDMI cable to connect to XBOX/PS4.

LANGUAGE SETTING

Choose Language

• There has more than 50 languages for choose, English, French, German, Italian, Spanish, Japanese, ect.

Input Selector

• Choose the keyboard to install according to your own needs and habits.

OTHER SETTING

Application Setting

• In the other settings menu, you can find the "Application Setting" option, click it to view all installed applications and configure them.

Factory Reset Setting

• Reset and delete all data

Developer Opinions

• It is mainly provided for developers to use during software development and debugging of devices. Normally it is turned off by default.

DATE AND TIME SETTING

ABOUT US

FAQ

1. No image on the screen.
   1. Is the channel set-up correct?
   2. Is there an input signal?
   3. Is the input cable plugged well?
   4. Under PC mode, is the refresh rate > 75KHz?
2. Blue screen no picture and no sound.
   Input device doesn't connect well with the projector.
3. Picture right, no sound.
   1. Please turn off the Dolby of the input device, and then it will have sound.
   2. The decode system of the video is not supported by the projector.
4. Auto-off after working for a while.
   1. The projector ventilation is blocked.
   2. The voltage is not stable.
   3. The over-heat protection system.
5. WiFi connection is not stable?
   1. Please check whether the network of your phone is well.
   2. Make the distance of phone and projector within 1 meter.
6. Not compatible with your Bluetooth speaker?
   1. The projector may not be compatible with some kinds of Bluetooth speakers.
   2. Contact our after-sales email at support01@wimius.com immediately and tell us the brand and model of your Bluetooth speaker.
7. Black spot on the picture
   Contact our after-sales service support01@wimius.com immediately
8. When turning on the power switch, the indicator light does not work.
   1. The power might not be connected well.
   2. Check the over-heat protection system.
9. Can't play the movies.
   1. The format of the video is right?
   2. Files are broken?
   3. Device broken?
10. Can't access the website successfully to download the application?
    Please contact us immediately at our after-sales email address: support01@wimius.com and tell us about the page prompt that appeared during your application download.
