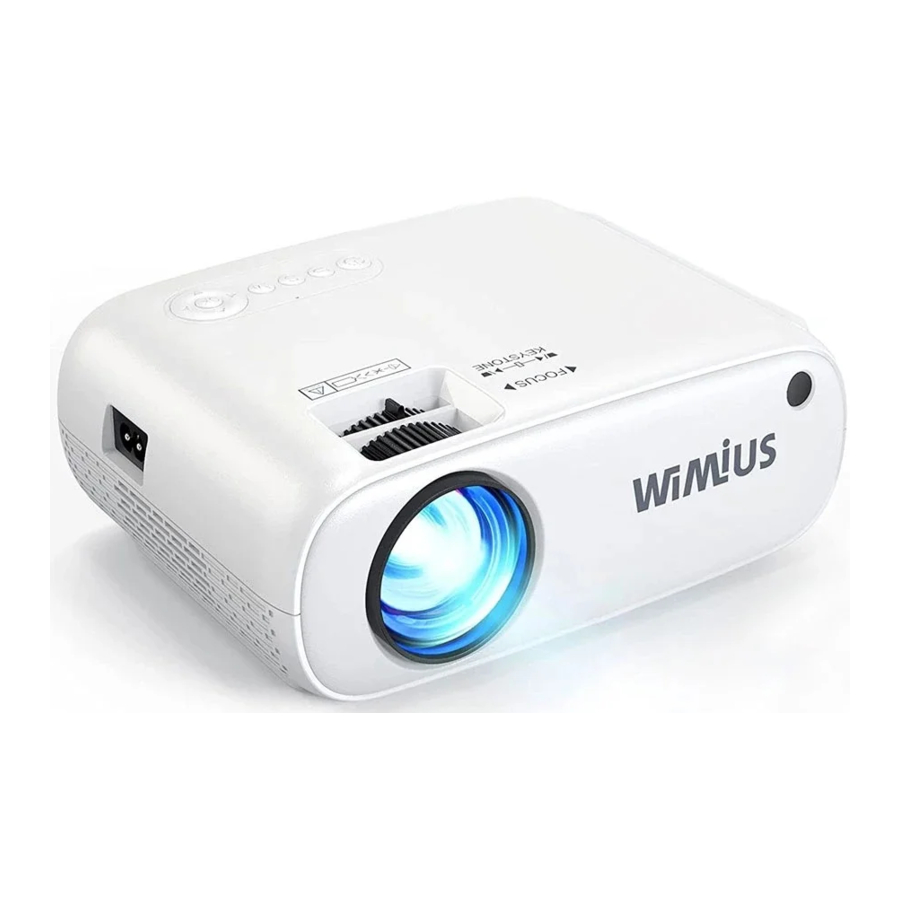

WiMiUS W2 Manual

Structural Diagram

Package Lists

Product Specifications

Multimedia Supported Files

If you play the above files, it still can't work properly, don't hesitate to contact us via support02@wimius.com

Product Overview

1. 3.5mm Headphone Jack (Used to connect your external speaker)
2. AV Jack/Video input terminal: Press the S button on the main body and the Source button on the remote control, select the AV function on the pop-up screen, and use the 3.5mm device to input video and sound.
3. Micro SD card slot: Select the multimedia function on the home screen. It can support up to 64GB Micro SD card
4. HDMI Jack
5. USB interface: Insert a USB memory, select the multimedia function on the homepage screen. It can support hard drives up to 1TB.
6. VGA Jack
7. Exhaust port: Do not block the suction port and exhaust port of the machine. If the suction port and exhaust port are blocked, it is easy to malfunction

Remote Control

Note:

1. Install 2 pieces of AAA batteries into the remote before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply.
2. When using the remote control, please make sure that the signal transmitter of the remote controller aims at infrared signal receiver of the.
3. When you are not using there mote controller for an extended period. Please take out batteries to prevent batteries leakage.

Installation

Installation Method

The projector can be hanged on the ceiling with special hanger fame. and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with following methods
Note: Keep the projector at a height where its lens is axial symmetry to the screen. If it is not possible, use the keystone correction ring to adjust the image.

Projection Size Chart

If you don't know how to purchase the appropriate accessories, please contact us at: support02@wimius.com.

Recommended projection distance: 2.4-3M.
The image size depends on the distance between projector and screen. there may be 3% deviation among above listed data. Different settings cause various distance.

Installing the Device

Keep the projector vertical with projector screen and keep it on the same level or attach it to a hanging bracket.

1. Tri-pod Stand: There is an hole at the bottom of the projector, it is perfect to be fixed on a tri-pod stand!(M6*8mm Screw Size).

2. Ceiling Mounted: Fixed by bottom screw hole.(M6*8mm Screw Size).


NOTE: The hanging bracket is an accessory that is not supplied

NOTE: The hanging bracket is an accessory that is not supplied

How to clean the "Black Spot"?

Open the Dusting Mouth Cover relation with a screwdriver.

Method 1: Exert yourself to flap the body of projector.

Method 2: Use the cold wind to blow the dusting mouth

NOTE: Please contact our e-mail support02@wimius.com for a video if you need detailed steps!

Power On/Power Off

1. First connect the power cord to the projector, then connect the power cord to the outlet before the power is turned on
2. Once the projector is plugged in, it will be in Standby mode
3. If not use for a long time or encounter thunder and lightning, please unplug the power cord

Power on: Press the power button on the remote control once to tum the projector on.
Power off: Press the power button on the remote control again to turn the projector off.

Keystone Correction & Focus

To get the clearest pictures: Firstly use the remote control to adjust the keystone correction to make image rectangle, then slowly rotate the focus lens to make the picture clear.
Note: Keep the projector vertical with projector screen and keep it on the same level.

1. Keystone Correction
   1. The projector has only vertical keystone correction and no horizontal correction. Make sure your projector is level with the screen
   2. Adjust the "2" keystone dial ring until the image is displayed rectangularly!
      Note: The projected image may be blurry or difficult to see, this is due to lack of focus adjustment with the lens, please follow the processes below to adjust the focus.

2. Focus
   Rotate the focus ring slowly. At the same time, check the resolution point carefully. The best focus point for the lens would be where the image most clear.
   Note: If it is still blurry, please try to adjust the projector distance


Device Setting

Select Projection Mode to obtain a front and upward image: HOME > Setup > Projection(10)
Press arrow key to select and press "OK" to confirm

1. Front Desktop
2. Rear Desktop
3. Front Ceiling
4. Rear Ceiling

Signal Source & Multimedia & Zoom

1. When connect with USB reader: click "Movie" to play video format files, click "Music" to play audio format files, click "Photo" to play picture format files, click "TEXT" to play txt format files. (This projector can't play PPT by USB reader)
2. Digital Zoom: (Zoom to 50% by step)
   Easy to Reduce the Display Size: Default menu interface Setting - Picture Menu - Reduce Display Size - Adjust the display size by your needs.

NOTE: The default interface size will not be changed when using the "Zoom function", you can find the change when "Screen Mirroring"

Wireless Connection

Warming Tips:

1. The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
2. Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
3. Some mobile devices may not support screen mirroring due to the compatibility.
4. Any questions, please feel free to contact WiMiUS support02@wimius.com.
5. How to Back to the default interface: Click "Source Key" - DMP

Wireless Mirroring Projection
Synchronize your mobile devices to the projector. (iPhone/ Android phone/ iPad/ Android Tablets)

NOTE:

1. Fits for: IOS device requires IOS 7 and above, Android device, system requires Android 4.2 and above.
2. Due to the HDCP copyright, all the LCD projectors don't support protected videos when "Mirroring" with smartphones, such as "Netflix and Hulu". You can play Netflix app or Prime video directly when connected with laptop, Macbook, fire tv stick and the other TV box!

Wireless Mirroring with Android Devices

(For Android Phone / Android Tablets)

NOTE:

1. It is no need to connect your home wifi network with the projector.
2. Just open the "Mirroring" function key on your device, then find the projector's wifi name and connect it.

Easy to Screen Mirroring: Enter "Screen Mirroring" - Click Screen Mirroring function on your device - Find the Projector's Wifi and connect it

1. Enter "Screen Mirroring" on your projector.
2. Open the "Screen Share" setting on your Android Mobile/Pad, find the projector's wifi "WiMiUSW2" and click to connect it.
3. The Screen Mirroring is successful.

Tips: If there is a freeze or delay during playback, you can restart your mobile device. Because too much software running on the phone will affect the smoothness of the projection.

Wireless Mirroring with iOS Devices

(For iOS iPhone / iPad)

NOTE:

1. Enter "Screen Mirroring" on your projector.
2. Open the "Wifi Setting" on your iOS device, then find the projector's wifi name and connect it.
3. Find the "Mirroring" on your iOS device, click into it and find the projector's wifi name and connect it.

1. Enter "Screen Mirroring" on your projector.
2. Open the "Wifi setting" on your iPhone or iPad, find the projector's wifi "WiMiUSW2" and click to connect it, the password: 12345678.
3. Open the "Screen Mirroring" setting on your iPhone or iPad, find the projector's wifi "WiMiUSW2" and click to connect it.
4. The Screen Mirroring is successful.

Tips: If there is a freeze or delay during playback, you can close the other apps on your IOS device. Because too much software running on the phone will affect the smoothness of the projection.

Bluetooth Function

Tips: W2 projector can connect with Bluetooth headsets, Bluetooth speakers and Airpods, But not Bluetooth keyboards or Bluetooth phones.

How to Connect Bluetooth Devices

1. ln the "Sound Set" menu and switch the "Sound Mode" to Bluetooth.

2. The projector will automatically tar searching for available Bluetooth devices.
3. When the desired Bluetooth device name appears in the search list select it and press button "OK" to connect.


Any questions please fell free to contact WiMiUS via support02@wimius.com.

Tips:

1. The Bluetooth function has distance requirement, please keep the distance by 8ft.
2. The Bluetooth function can only connect one Bluetooth speaker during the use.
3. If you cannot find the Bluetooth device, please re-start your Bluetooth device and re-search again. Or you can contact our official e-mail for support.

Main Menu Function

1. Select "Setting" in the first projection screen.
2. Select the adjust interface, use "OK" key to choose the wanted item

Picture Setting

Sound Setting

System Setting

When you are using mirroring function, the setting will be temporarily unavailable

FAQ

Common problems can be found in the table below, we suggest you read the manual careful by first time use. If there is any question, that you couldn't solve with this manual, please contact us.

Warnings

1. High brightness lamp! Please don't look directly into the lamp.
2. Adjusting the contrast, brightness and focal length according to different input signals is the key to make the picture clear; otherwise, the picture will be blurred;
3. There is high voltage inside the projector. It is forbidden to open the cover and touch the internal parts of the machine.

Precautions

1. Clean
   when clean this projector, please pull out the power cable. Use a wet cloth to clean, don't use any detergent that may damage the unit.
2. Accessory
   please use our recommended accessory. Or it will damage the projector.
3. Correct environment
   do not place the projector in a wet environment, like damp basement or near the swimming pool, etc.
4. Ventilation
   the ventilation is equipped for the projector to work stably. Do not put anything around the vents. Or it will cause the projector heating up.
5. Power
   please make sure the power is within the required power range.
6. Thunder
   for thunder day, please unplug the power cable from the projector.
7. Repair
   due to high voltage inside, please do not open or try to repair the projector by yourself. Don't disassemble the projector without authorize, otherwise any warranty will be invalid. Seek help from an authorized agent or qualified professionals when needed
8. Keep away from heat device
   please make sure the projector is far away from any heat devices which will damage the projector.

Contact US

Thank you for your purchase with WiMiUS W2 mini video projector. If any questions during using it, feel free to contact us at below, so that we can service you further.
support02@wimius.com (optimal) http://www.wimius.com/support.html

To obtain the Use and Maintenance videos please contact:
support02@wimius.com
