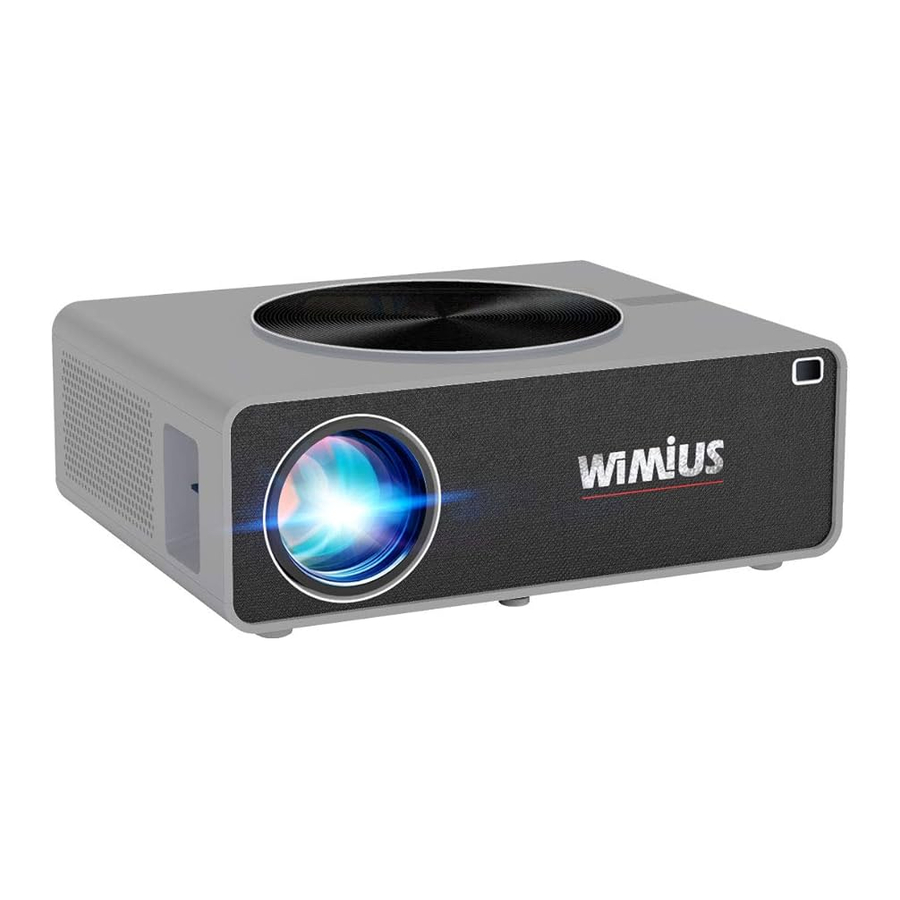

WiMiUS K3 Manual

Accessories

Product Overview

Product Overview - Part 1

Product Overview - Part 2

warning Note: If you want to return to the previous menu or signal source operation, please press M or S to return to the previous step.

warning Note: Please refer to the product appearance, this figure is for reference only.

Remote overview

Remote overview

warning Note: Batteries are not supplied in the package, you must purchase two additional cAAA batteries by yourself.

*warning Note:

  1. While using the remote control, point it toward IR receiver.
  2. To avoid battery leakage corrosion, please take the batteries out if not use it for a long time.

Specifications

Model No.: K3

Imaging System LCD Power 110-240V ~ 50/60HZ
Light source LED Dimension 31*23.6*11.5CM
Color 16.8M full color Resolution Native 1920*1080 Full HD
Projection Distance 1.5 ~7M Input Interface HDMI*2/VGA/AV/ USB*2/AUDlO IN
Projection size 50-300" Zoom Function 100% - 75%
Aspect Ratio 16:9 / 14:3 Output Interface AUDIO OUT
Keystone Correction ± 150 Vertical Manual Projector Weight 2.5kg

Projection Size Chart

Distance Screen size
1.5m 35"
1.75m 50"
2.4m 72"
3.3m 100"
3.9m 120"
5.5m 180"
7m 300"

* Optimum projection distance: 3m

Operating Instructions

Getting Started

  1. Connect the projector with the power through power supply cable.
  2. After power on, the indicator light on the projector turns red.
  3. Press the "power" button on the back of the projector, or the power button on the remote control, it starts work. (Red light turns white)
  4. Then boot screen appears, like the picture.
    Operating Instructions - Getting Started

Focus and Keystone Correction

Two steps to get clear images:

  1. Adjust the keystone correction to make picture rectangle first.
    Focus and Keystone Correction - Step 1
  2. Adjust the focus ring to make the picture clear
    Focus and Keystone Correction - Step 2

Connect input devices

Connect input devices and then choose signal source button to choose corresponding signal source ( VGA, HDMII, HDM12, AV, USBI, USB2,etc)

  1. Operate through the remote control: Press " and then press "" or "" to choose the right source, then press "OK" to confirm.
  2. Operate through the projector button: press "S" on the machine to call up the input source selection menu, press "" or "" to select the required signal input channel, and then press "OK" to confirm.

warning Note: The port USB2 is designed only for iPhone's Screen Mirroring of cable connection, it doesn't support Android devices.

Connecting with Smartphones and iPad

Wireless Connection

P.S: The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended screen mirroring. Make sure your mobile device is closed to the projector when using wireless connection. A distance within 1 meter is recommended.

For IOS System

Method 1: Setting with cellular data

  1. Turn on the projector, select
    ""
    as the input source on the projector for the connection at first. It will enter the interface of Screen Mirroring for IOS system.
  2. Go to the settings of your IOS mobile device and connect it to the Wi-Fi of PROJECTOR -XXXXXX (password: 12345678). Please ignore the exclamation mark before it.
  3. Swipe up the screen of your IOS mobile device, then tap Screen

Method 2: Setting with Home Wi-Fi

  1. Turn on the projector, select "Screen Mirroring" of IOS as the input source. Connect iPhone/iPad to K3 projector's Wi-Fi. Wi-Fi name: PROJECTOR-XXXXXX (password: 12345678)
  2. Visit the setting address of projector: 192.168.0.XXX (please put in the IP showed on the screen) from a browser on your mobile device, click 【Wi-Fi AP】 -- 【Scan】, select your router's Wi-Fi and enter the right password, then tap Connect to continue, please wait 3-5 seconds to establish the connection.
  3. Get back to the Wi-Fi setting of your iOS mobile device, then connect it to the same router's Wi-Fi.
  4. Swipe up the screen of your iOS mobile device and tap "Screen Mirroring" to search for the projector, then select from the searching results to connect.

For Android System

To activate this function, your android device must support Multi-Screen/ Wireless display. Name of "Multi-Screen" may vary depending on various brands of Android devices.

warning Note: Before connecting, please confirm that your mobile personal hotspot is turned off.

  1. Turn on the projector, select
    ""
    as the input source on the projector for the connection at first.
  2. Turn on your home Wi-Fi, connect your Android, tablet to your own Wi-Fi.
    • Wi-Fi is necessary for Android Device wireless connection.
  3. Use the "Mufti-Screen" function to search and connect.
    Connecting with Smartphones - For Android System

Wired Connection For IOS System Only

(There are 2 USB ports, please only plug USB cable to "USB-2" port)

  1. Turn on the projector, connect your iPhone or iPad to the projector "USB-2" port via ORIGINAL Lightning to USB cable( Charging cable).
  2. Select "Trust" in the pop-up window. Then it works.

For Android System: It doesn't support cable connection. Please use the method of wireless connection only.

Connecting with Other Devices

Connecting with PC

  1. Connect projector with PC by VGA cable or HDMI cable.
  2. Choose the media signal channel

USB Multimedia Connecting

  1. Insert the flash disk to USB interface.
  2. Choose the media signal channel
  3. According to the programs to choose:"photos""music""movie" or "text'!
  4. Choose the file you want to play, press the key "play pause" to play or pause the file.

Connecting with MacBook or Mac Book Air

  1. Choose the media signal channel:"HDMI"
  2. Use a Type-C to HDMI adapter to connect your MacBook, or a Mini Display to HDMI adapter to connect with your MacBook Air (adapter not included).

Connecting with Sound bar

  1. Use the AV cable coming with the projector to connect with sound bar.
  2. Turn on the projector and the sound bar.
  3. More details, please contact seller at support@wimius.com.

Connecting with DVD

  1. Use the AV cable coming with the projector to connect with DVD.
  2. Turn on the projector and DVD player
    Connecting with Other Devices - Connecting with DVD

Connecting with Amazon fire TV Stick

  1. Plug the TV stick into HDMI port of the projector.
  2. Choose the media signal channel: "HDMI"

P.S: It only supports 1080P TV stick, not 4K TV stick

Connecting with XBOX/PS4

  1. Choose the media signal channel: "HDMI"
  2. Use HDMI cable connect to XBOX/PS4

Warm tips

information If you want to make the projection screen full screen during video/picture playback, you can press the "" button on the projector or remote control.

Installing the projector

  1. We provide a screw in the packaging, there is a screw hole at the bottom of the projector, you can install it to lift the base of the projector on the plate to get a better projection angle. See below (1).
    Installing the projector - Step 1
  2. For Ceiling mount, there are 4 holes at the bottom of the projector(M4*10mm). Please slowly rotate it out first. See below (2) (3).

    Installing the projector - Step 2

warning NOTE: The hanging bracket is an accessory that is not supplied.

Picture Menu

Press "M"on the projector or press "" on the remote control to make some personal settings.
Main Menu Function - Picture Menu

Picture Menu included Function
Picture Mode Standard/Soft/User/Vivid 4 image mode to adjust the "Contrast/Brightness/Color /Sharpness" of the image
Color temperature Medium/warm/User/Cool 4 image mode to adjust the color temperature
Aspect Ratio Auto/4:3/16:9 Aspect ratio let you configure how images are displayed
Noise Reduction Off/Low/Middle/High/Default Adjust picture noise
Projection Mode Front/Front on Desk/Front on Ceiling/ Rear on ceiling Choose the projection methods, flip the image
Reduce Display 100%-75% Reduce the size of projection size

warning Note:

  • During the video playback, when you press the menu button to make the setting, a menu box will pop up, you need to press the ok button again to make the video screen and the menu screen on the same interface.
  • The menu of "Reduce Display" shows grey when there is no video play.
  • If the menu icon is gray, it means that this option is not adjustable.

Sound Menu

Main Menu Function - Sound Menu

Sound Menu included Function
Sound Mode Standard/music/movie/Sports/User Adjust the sound

Time Menu

Main Menu Function - Time Menu

Time Menu included Function
Clock Date, Month, Year, Hour, Minute Set the correct time of the day
Off time off Off/Once/Every day/Mon~Fri./Mon~Sat./Sat.~Sun./Sunday Set different Off time in different time periods Set different runtime in different
On time off Off/Once/Every day/Mon~Fri./Mon~Sat./Sat.~Sun./Sunday time periods
Sleep Timer Off OFF/10min/20min/30min/60min/ 90min/120min/180min/240min Set different Sleep Time for the projector

Option Menu

Main Menu Function - Option Menu

OPTION Menu included Function
OSD Language Spanish, Japanese etc. English, French, German, Italian, Choose a language
Restore Factory Default Reset Restore all settings to their original factory settings
OSD Duration OFF/5Sec/10Sec/15Sec The time of the duration of the menu
Software Update (USB) Update software Update software

FAQ

Questions Solutions
Can't play video in App Netflix, Hulu, Amazon Prime Those APPs are limited with HDCP. This model doesn't support this function. So it can't support these APPs.
Wi-Fi connection is not stable?
  • Please check whether the network of your phone is well.
  • Make the distance of phone and projector within 1meter.
  • If still has a problem? Contact our after-sales service support@wimius.com immediately.
Indicator light is off when plug into power supply
  • The power cable not connected well.
  • The power button on the back of the projector is off.
Press the power button on the remote control and the projector does not turn on
  • The remote control's batteries are depleted.
  • Something obstructing the signal between the remote and R.
  • Strong light on IR directly.
No image on the screen
  • Is the channel set-up correct?
  • Is there input signal?
  • Is the input cable plugged well or in the wrong position?
  • Under PC mode, is the refresh rate > 75 KHz?
Picture right, no sound
  • Input cables connected right?
  • Volume at minimum or on Mute.
  • Turn Off the dolby Of the input devices.
It will shut off automatically after turn on for a while
  • Is there a barrier around the ventilation?
  • Low voltage or big voltage fluctuations.
  • Check the over-heat protection system.
Can't find devices when connected with hard drive or flash drive?
  • Re-plug the device.
  • Check if the device is broken.
Can't play the movies
  • The format of the video is right?
  • Files are broken?
  • Dev•ce is broken?

Contact us

Support Email:
Sales@wimius.com
support@wimius.com

Website: www.wimius.com

Safety Precautions


High brightness lamp! Don't look straight into the lens when the projector is on.

  1. Clean
    When clean this projector, please pull out the power cable. Use a wet cloth to clean, don't use any detergent that may damage the unit.
  2. Accessory
    Please use our recommended accessory. Or it will damage the projector.
  3. Correct environment
    Do not place the projector in a wet environment, like damp basement or near the swimming pool, etc.
  4. Ventilation
    The ventilation is equipped for the projector to work stably. Do not put anything around the vents. Or it will cause the projector heating up.
  5. Power
    Please make sure the power is within the required power range.
  6. Thunder
    For thunder day, please unplug the power cable from the projector.
  7. Repair
    Due to high voltage inside, please do not open or try to repair the projector by yourself.
    Please ask a professional technician to repair the projector.
  8. Keep away from heat device
    Please make sure the projector is far away from any heat devices which will damage the projector.
