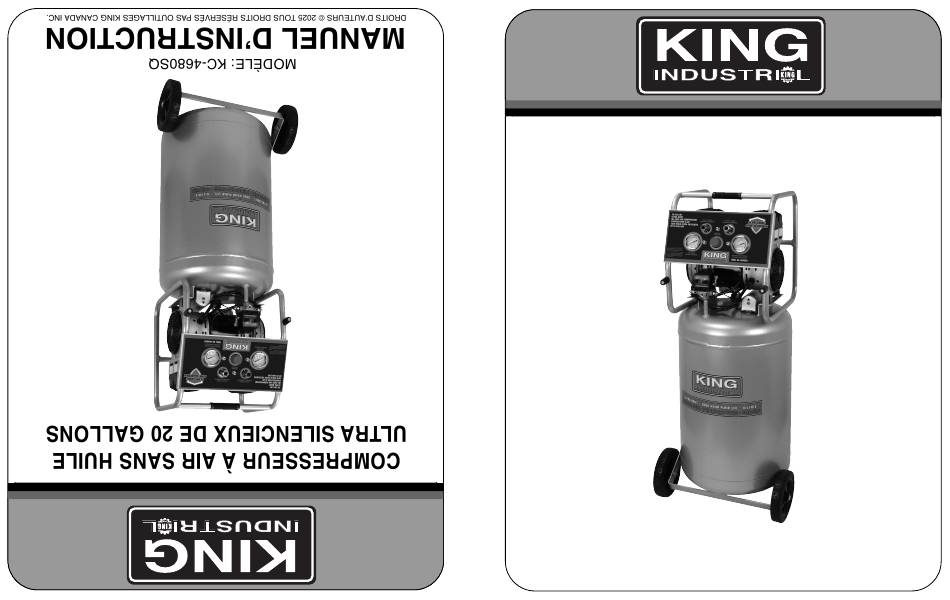

- Page 1 20 GALLON ULTRA QUIET OIL-FREE AIR COMPRESSOR MODEL: KC-4680SQ INSTRUCTION MANUAL COPYRIGHT © 2025 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 3: Warranty Information
WARRANTY INFORMATION 2-YEAR LIMITED WARRANTY FOR THIS 20 GALLON OIL-FREE AIR COMPRESSOR PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of It is normal for electrical contacts within the motor and pressure combustible materials, gasoline or solvent vapors. If spraying flammable materials, spray material at least 20 feet away from switch to spark. - Page 5 SPECIFICATIONS & ELECTRICAL INFORMATION SPECIFICATIONS Model ......................................KC-4680SQ Voltage ........................................120V Horsepower......................................3 Peak HP Amperage ........................................14A RPM (no load speed) ....................................1,680 Phase ..........................................1 Hertz ..........................................60Hz Operating pressure ..................................90-125 PSI CFM @ 40 PSI ......................................5.6 CFM @ 90 PSI ......................................4.4 Tank size ......................................20 Gallon...
- Page 6 ASSEMBLY & OPERATIONAL CONTROLS ASSEMBLY OF THE AIR COMPRESSOR Your compressor requires minor assembly. 1. Install both air filters (A) Fig.3 to the pump castings as shown. FIGURE 3 2. Pivot the compressor down towards the front and lay the compressor down on the front rubber stoppers. Install wheel (A) Fig.4 to the rear wheel bracket.
- Page 7 OPERATIONAL CONTROLS & OPERATION TANK PRESSURE GAUGE (A) FIG.7. The tank pressure gauge indicates the reserve air pressure in the tank. REGULATOR (B) FIG.7. The air pressure coming from the air tank is controlled by the regulator. Turn the regulator knob clockwise to increase pressure or counterclockwise to decrease pressure.
- Page 8 OPERATION, MAINTENANCE & TROUBLESHOOTING After Use: 1. Set the switch (A) Fig.8 to the Off position. Disconnect power cord from power source. 2. Turn the regulator (B) Fig.7 counterclockwise to set the outlet pressure to zero. 3. Disconnect the air tool or accessory. 4.
- Page 9 PARTS DIAGRAM MODEL: KC-4680SQ...
- Page 10 PARTS LIST MODEL: KC-4680SQ Order# Description Order# Description Tapping screw Armature 9156800010 9156800020 Cover Ball bearing 9156800030 Fan (left) Anti-vibration rubber Hex. nut Flange hd hex. nut 9156800040 Muffler 9156800050 Left crankcase 9156800060 Spacer Elbow 9156800070 Hex. bolt 41-1 Exhaust valve...
