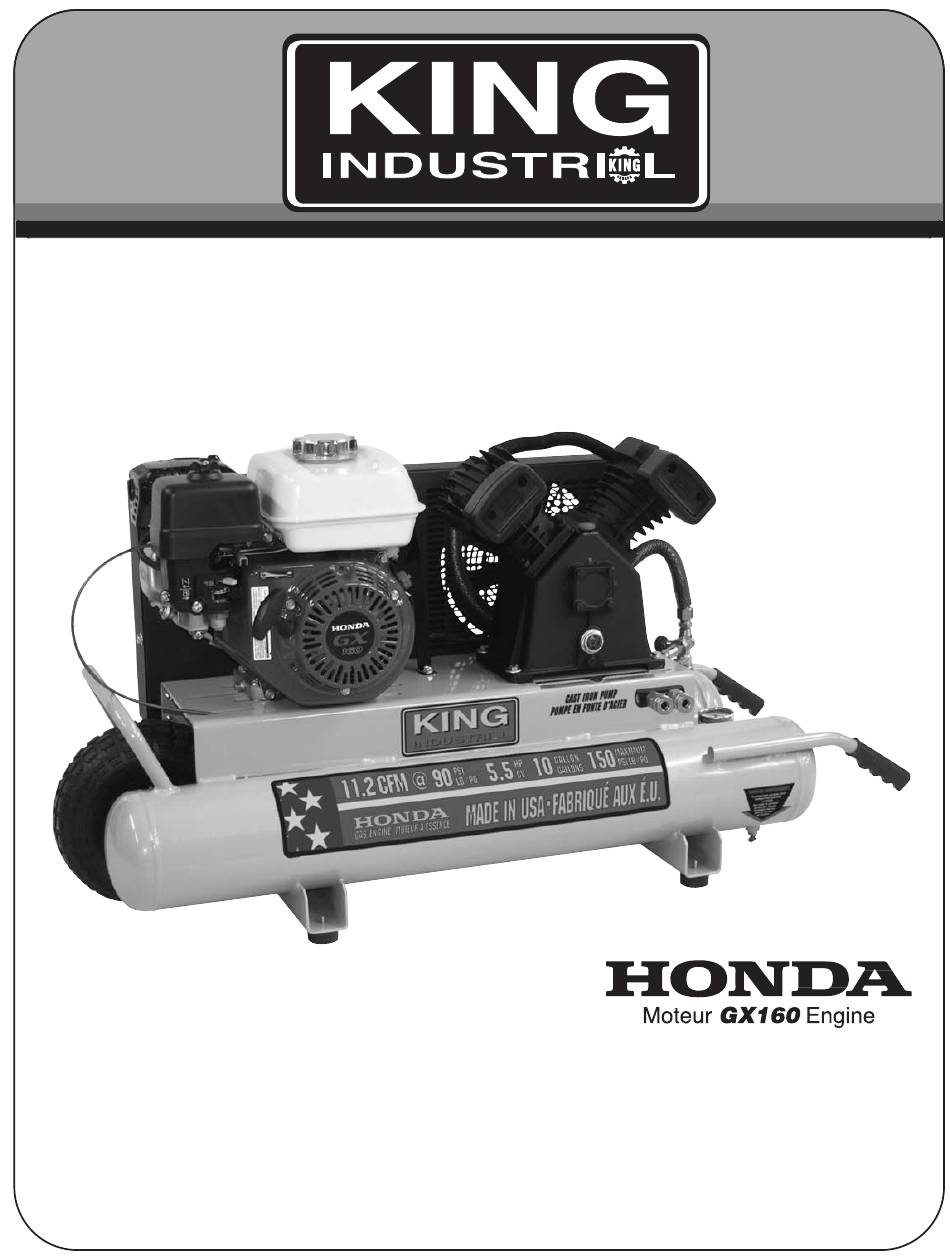

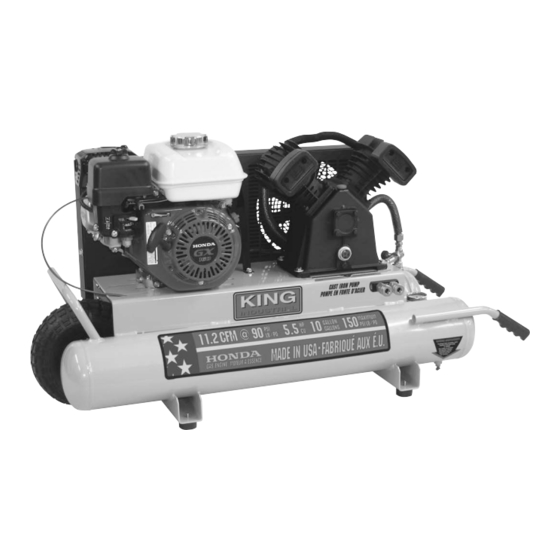

- Page 1 10 GALLON 5.5 HP GAS (HONDA) WHEELBARROW AIR COMPRESSOR MODEL: KC-5510G1 INSTRUCTION MANUAL COPYRIGHT © 2012 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 1-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 1-YEAR LIMITED WARRANTY FOR THIS GAS 10 GALLON AIR COMPRESSOR FOR INDUSTRIAL USE. IMPORTANT WARRANTY INFORMATION KING CANADA AIR COMPRESSOR SERVICE INFORMATION IF YOU ARE EXPERIENCING PROBLEMS WITH ONLY THE AIR COMPRESSOR, DO NOT RETURN TO THE RETAILER, CALL KING CANADA AT THE TOLL-FREE NUMBER BELOW FOR SERVICE INFORMATION. - Page 3 IMPORTANT SAFETY INSTRUCTIONS FOR AIR COMPRESSORS RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of combustible materials, gasoline or solvent vapors. If spraying It is normal for electrical contacts within the motor and pressure flammable materials, spray material at least 20 feet away from switch to spark.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS FOR GAS ENGINES BASIC SAFETY INFORMATION where the temperature exceeds 40° C ambient (such as storage rooms or garages) can interfere with its proper ventilation features EXHAUST FUMES ARE DANGEROUS causing overheating and possible ignition of the materials or •Never operate the engine in a closed area or it may cause uncon- buildings.
-
Page 5: Specifications
SPECIFICATIONS & BREAK-IN PROCEDURES SPECIFICATIONS Model ....................................KC-5510G1 Honda engine ................................5.5 HP (GX160) Engine no load speed ................................3,600 RPM Displacement ....................................163 cc Fuel ..................................Unleaded gasoline Fuel tank ......................................3.1 L Maximum tank pressure ................................150 PSI Operating pressure ......................95-125 PSI (field adjustable to 150 PSI) CFM @ 40 PSI ....................................14.1... -
Page 6: Compressor Controls
COMPRESSOR CONTROLS ADDITIONAL REGULATORS AND CONTROLS Since the air tank pressure is usually greater than that which is needed, an air pressure regulator is employed to control the air pressure ahead of any individual driven device. Seperate air transformers which combine the function of air regulation, moisture and dirt removal should be used where applicable. - Page 7 OPERATIONAL GUIDELINES & MAINTENANCE OPERATIONAL GUIDELINES Factory Pressure Setting & Adjustment This compressor comes with a factory operating pressure setting of 95-125 PSI (cut-in and cut-out), the cut-out pressure setting may be increased up to 150 PSI by making an adjustment to the load master valve assembly Fig.6. Caution! We strongly recommend keeping the cut-out pressure setting between 125-135 PSI.
-
Page 8: Maintenance And Troubleshooting
MAINTENANCE & TROUBLESHOOTING REPLACING/TENSIONING DRIVE BELT If the drive belt needs tensioning, the belt should be adjusted so when pressure is applied in the centre, there is approximately 1/2” slack. See Fig.8. 1) To install a new belt, remove belt guard. Loosen engine mount bolts and slide engine towards the pump, remove belt.
