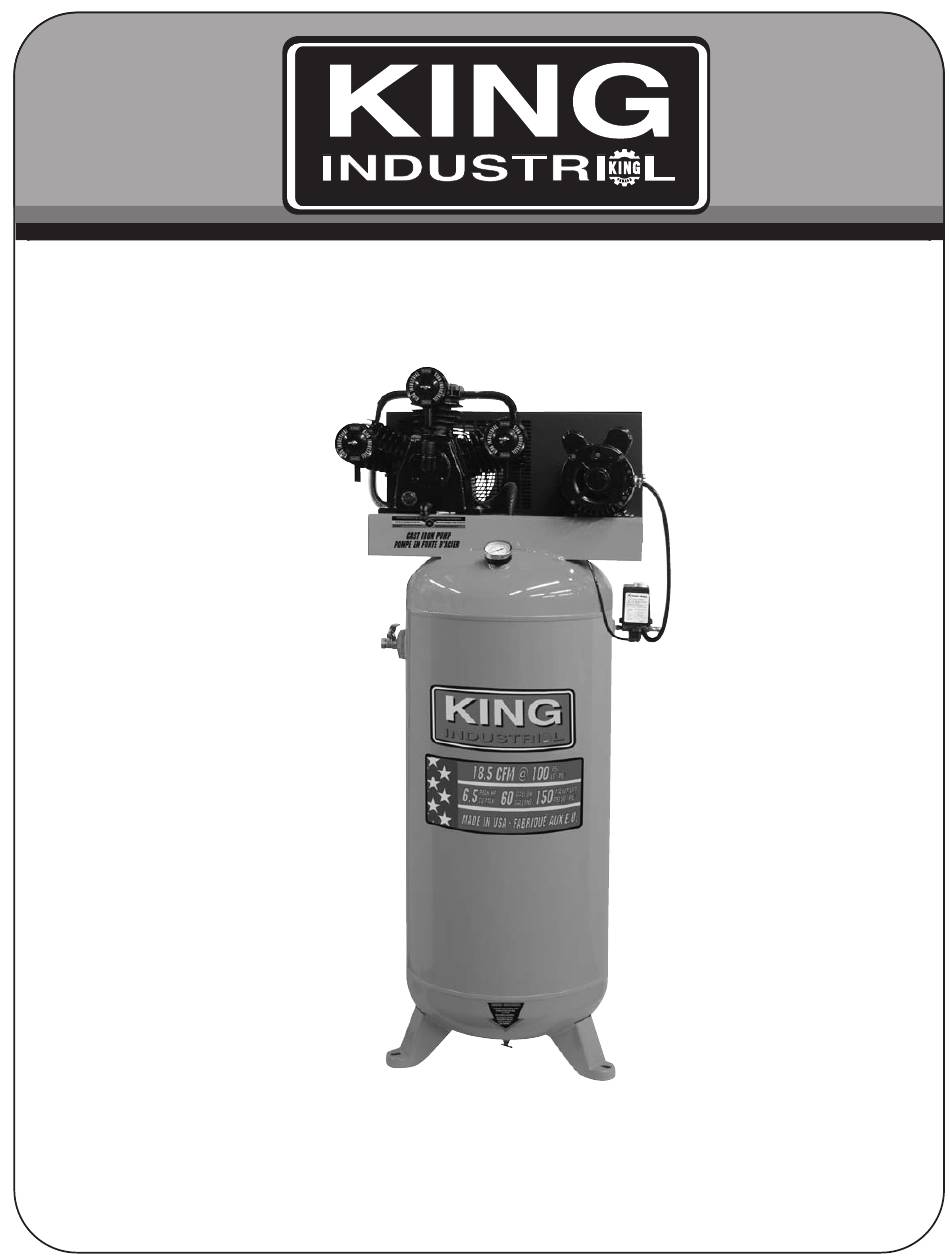

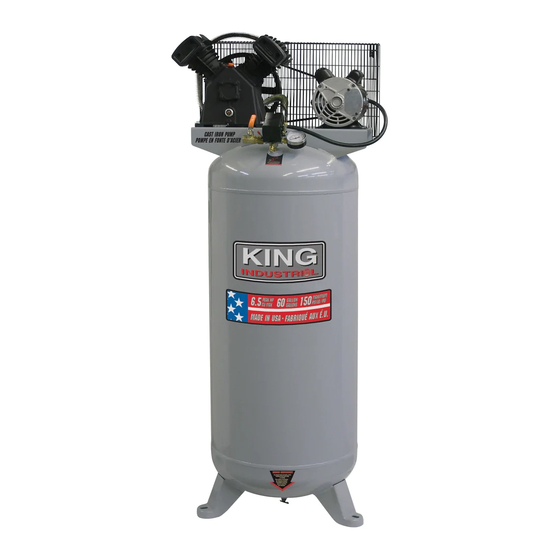

- Page 1 HIGH OUTPUT STATIONARY 6.5 PEAK HP 60 GALLON AIR COMPRESSOR MODEL: KC-5160V1 INSTRUCTION MANUAL COPYRIGHT © 2011 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 1-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 1-YEAR LIMITED WARRANTY FOR THIS 60 GALLON AIR COMPRESSOR FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of combustible materials, gasoline or solvent vapors. If spraying It is normal for electrical contacts within the motor and pressure flammable materials, spray material at least 20 feet away from switch to spark. -
Page 4: Specifications
SPECIFICATIONS & ELECTRICAL INFORMATION SPECIFICATIONS Model ......................................KC-5160V1 Voltage........................................208/240V Horsepower ....................................6.5 Peak HP Amperage ........................................23A RPM (no load speed) ....................................3,450 Phase ..........................................1 Hertz ..........................................60Hz Operating pressure ..........................95-125 PSI (field adjustable to 135 PSI) CFM @ 40 PSI ......................................22.6 CFM @ 100 PSI ......................................18.5 Tank size ......................................60 Gallon... - Page 5 MOUNTING AND BREAK-IN PROCEDURES MOUNTING Warning! This compressor is not intended for outdoor installation. Never use the transport skid for mounting purposes. Make sure you mount the air compressor in a clean, well ventilated area where the surrounding air temperature will not exceed 40 celcius.
-
Page 6: Additional Regulators And Controls
PIPING & COMPRESSOR CONTROLS PIPING Warning! Never use plastic (PVC) pipe for compressed air. Serious injury or death could result. Any tube, pipe, or hose used must have a pressure rating higher than 150 PSI. Minimum recommended pipe size, keep in mind that a larger diameter pipe is always better: Up to 50 feet long use 1/2”. -
Page 7: Maintenance
OPERATIONAL GUIDELINES & MAINTENANCE OPERATIONAL GUIDELINES Moisture in compressed air When humidity is high or when the compressor is in continuous use for an extended period of time, this moisture will collect in the air tank. When using a spray gun or sandblast gun, this water will be carried from the tank through the hose and out of the gun as droplets mixed with the spray material. -
Page 8: Troubleshooting
TROUBLESHOOTING TROUBLE POSSIBLE CAUSE CORRECTIVE ACTION No start condition Fuse blown or circuit breaker tripped Check voltage or eliminate extension cord or reset Loose electrical connections Check wiring connections Overheated motor Wait for motor to cool, then press the reset button, restart Tank is at full pressure Drain tank of air pressure Low pressure...
