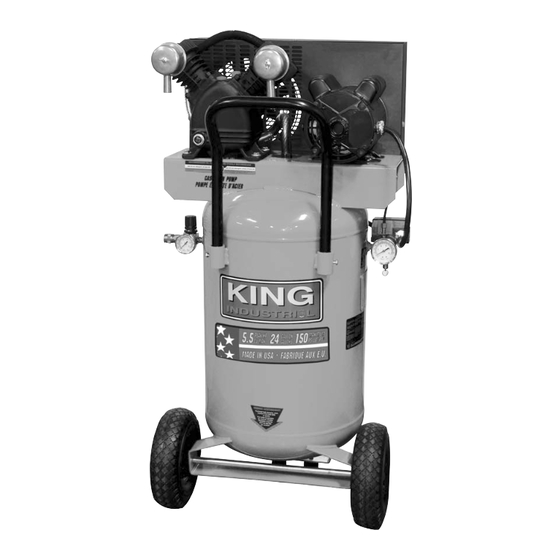

5.5 peak hp 24 gallon air compressor

Advertisement

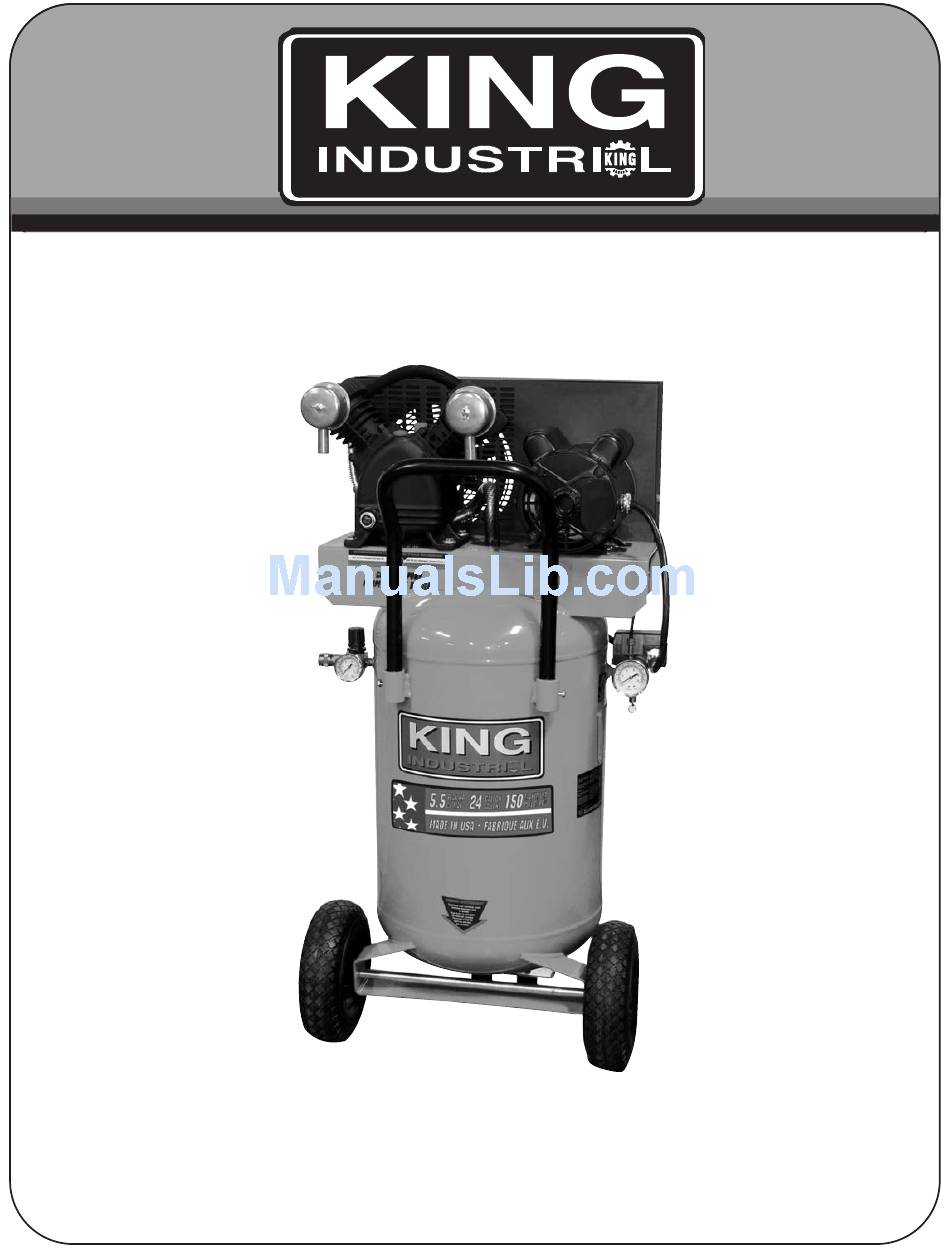

5.5 PEAK HP 24 GALLON

AIR COMPRESSOR

09/2013
MODEL: KC-3124V1

INSTRUCTION MANUAL

COPYRIGHT © 2013 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC-3124V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for King Industrial KC-3124V1

  • Page 1: Air Compressor

    5.5 PEAK HP 24 GALLON AIR COMPRESSOR 09/2013 MODEL: KC-3124V1 INSTRUCTION MANUAL COPYRIGHT © 2013 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
  • Page 2: Warranty Information

    WARRANTY INFORMATION 1-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 1-YEAR LIMITED WARRANTY FOR THIS 24 GALLON AIR COMPRESSOR FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of combustible materials, gasoline or solvent vapors. If spraying It is normal for electrical contacts within the motor and pressure flammable materials, spray material at least 20 feet away from switch to spark.
  • Page 4: Specifications

    SPECIFICATIONS & ELECTRICAL INFORMATION SPECIFICATIONS Model ......................................KC-3124V1 Voltage ......................................120V/240V Horsepower ....................................5.5 Peak HP Amperage ......................................15A/7.5A RPM (no load speed) ....................................3,600 Phase ..........................................1 Hertz ..........................................60Hz Operating pressure ..........................95-125 PSI (field adjustable to 135 PSI) CFM @ 40 PSI ......................................7.6 CFM @ 90 PSI ......................................6.0 Tank size ......................................24 Gallon...
  • Page 5 ASSEMBLY & BREAK-IN PROCEDURES ASSEMBLY AND LOCATION OF THE AIR COMPRESSOR Your compressor requires some minor assembly. Install both 9-1/2” wheels (A) Fig.3 using wheel shaft and cotter pins supplied. Then install the rubber feet (B) using pan head screws and flange head hex. nuts. Install handle (C) to the tank and secure handle using 2 hex.
  • Page 6: Compressor Controls

    COMPRESSOR CONTROLS ADDITIONAL REGULATORS AND CONTROLS Since the air tank pressure is usually greater than that which is needed, an air pressure regulator is employed to control the air pressure ahead of any individual driven device. Seperate air transformers which combine the function of air regulation, moisture and dirt removal should be used where applicable.
  • Page 7: Maintenance

    OPERATIONAL GUIDELINES & MAINTENANCE OPERATIONAL GUIDELINES Moisture in compressed air When humidity is high or when the compressor is in continuous use for an extended period of time, this moisture will collect in the air tank. When using a spray gun or sandblast gun, this water will be carried from the tank through the hose and out of the gun as droplets mixed with the spray material.
  • Page 8: Troubleshooting

    TROUBLESHOOTING TROUBLE POSSIBLE CAUSE CORRECTIVE ACTION No start condition Fuse blown or circuit breaker tripped Check voltage or eliminate extension cord or reset Loose electrical connections Check wiring connections Overheated motor Wait for motor to cool, then press the reset button, restart Tank is at full pressure Drain tank of air pressure Low pressure...
