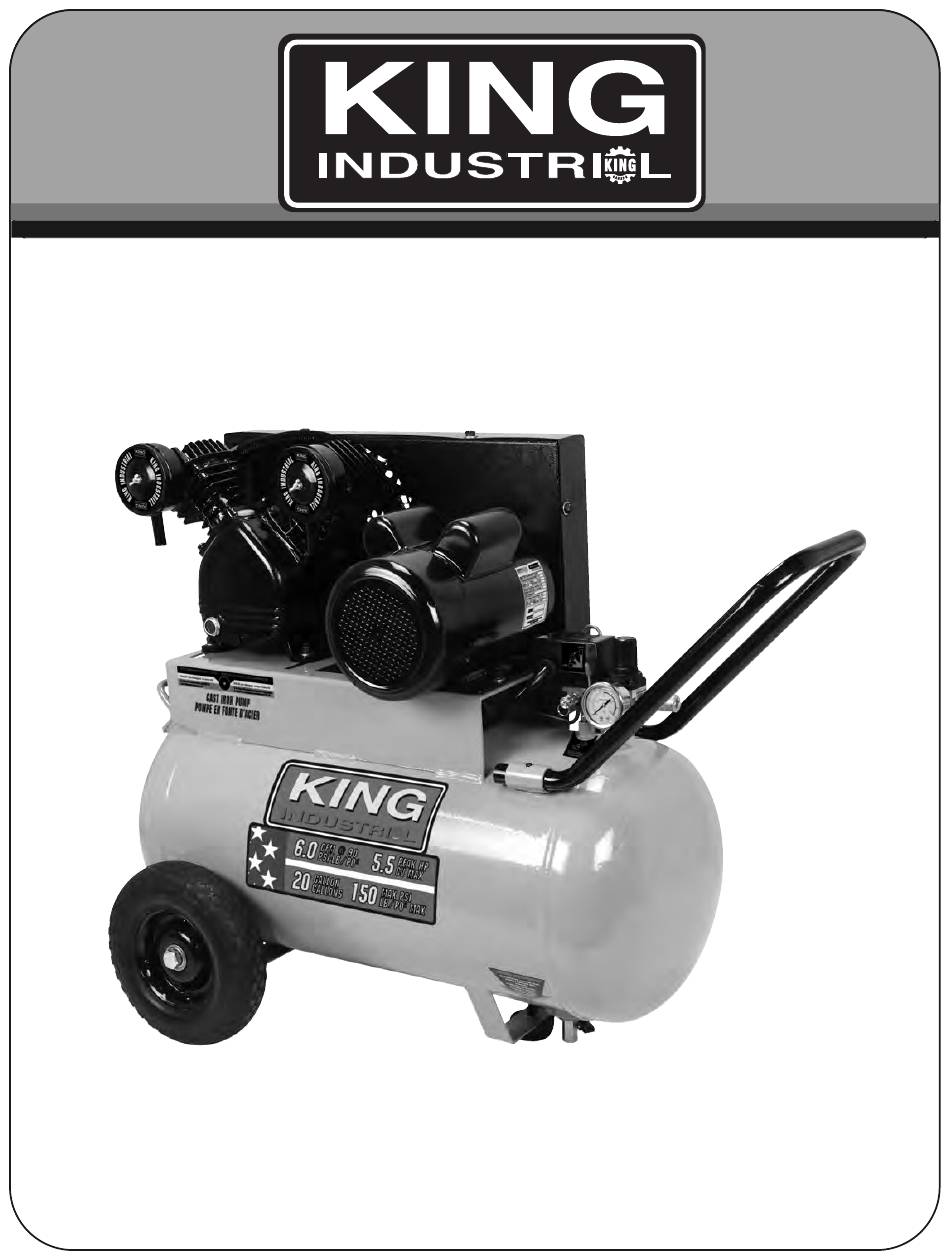

- Page 1 5.5 PEAK HP 20 GALLON AIR COMPRESSOR MODEL: KC-2051H2 INSTRUCTION MANUAL COPYRIGHT © 2018 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 1-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 1-YEAR LIMITED WARRANTY FOR THIS 20 GALLON AIR COMPRESSOR FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of combustible materials, gasoline or solvent vapors. If spraying It is normal for electrical contacts within the motor and pressure flammable materials, spray material at least 20 feet away from switch to spark. -
Page 4: Specifications
SPECIFICATIONS & ELECTRICAL INFORMATION SPECIFICATIONS Model ......................................KC-2051H2 Voltage ........................................120V Horsepower ....................................5.5 Peak HP Amperage ........................................15A RPM (no load speed) ....................................3,450 Phase ..........................................1 Hertz ..........................................60Hz Operating pressure ..........................95-125 PSI (field adjustable to 150 PSI) CFM @ 40 PSI ......................................7.6 CFM @ 90 PSI ......................................6.0 Tank size ......................................20 Gallon... - Page 5 ASSEMBLY & BREAK-IN PROCEDURES ASSEMBLY AND LOCATION OF THE AIR COMPRESSOR Your compressor requires some minor assembly. Install both 10” wheels (A) Fig.3 using axle bolts, spring washers, washers and hex. nuts supplied. Then install the rubber foot (B) using a large hex. bolt and hex. nut. Install handle (C) to the tank and secure handle using 2 set screws (D).
-
Page 6: Compressor Controls
COMPRESSOR CONTROLS ADDITIONAL REGULATORS AND CONTROLS Since the air tank pressure is usually greater than that which is needed, an air pressure regulator is employed to control the air pressure ahead of any individual driven device. Seperate air transformers which combine the function of air regulation, moisture and dirt removal should be used where applicable. -
Page 7: Maintenance
OPERATIONAL GUIDELINES & MAINTENANCE OPERATIONAL GUIDELINES Moisture in compressed air When humidity is high or when the compressor is in continuous use for an extended period of time, this moisture will collect in the air tank. When using a spray gun or sandblast gun, this water will be carried from the tank through the hose and out of the gun as droplets mixed with the spray material. -
Page 8: Troubleshooting
TROUBLESHOOTING TROUBLE POSSIBLE CAUSE CORRECTIVE ACTION No start condition Fuse blown or circuit breaker tripped Check voltage or eliminate extension cord or reset Loose electrical connections Check wiring connections Overheated motor Wait for motor to cool, then press the reset button, restart Tank is at full pressure Drain tank of air pressure Low pressure...
