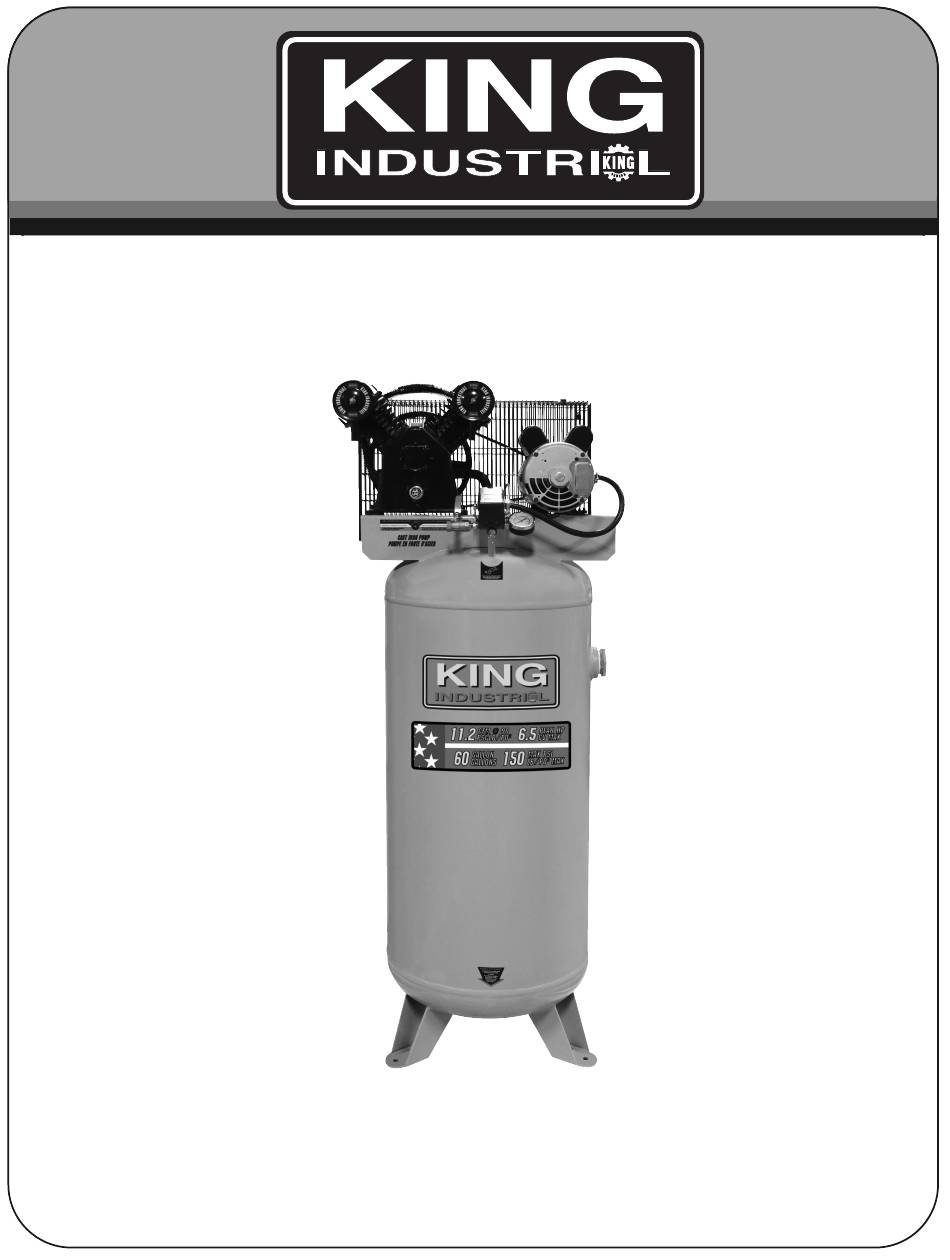

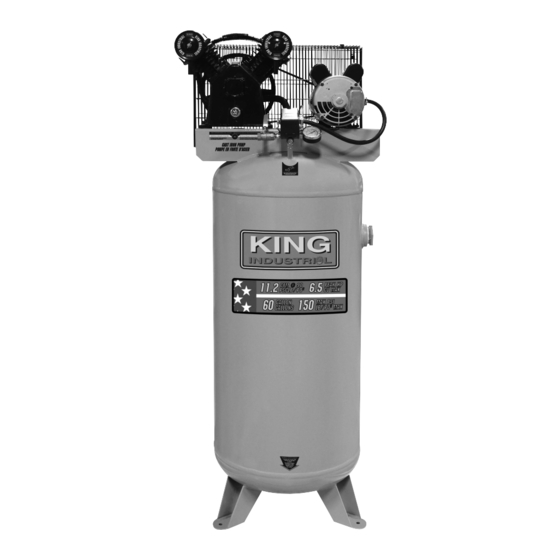

- Page 1 STATIONARY 6.5 PEAK HP 60 GALLON AIR COMPRESSOR MODEL: KC-6160V2 INSTRUCTION MANUAL COPYRIGHT © 2022 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 1-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 1-YEAR LIMITED WARRANTY FOR THIS 60 GALLON AIR COMPRESSOR FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE HOW TO PREVENT IT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of combustible materials, gasoline or solvent vapors. If spraying It is normal for electrical contacts within the motor and pressure flammable materials, spray material at least 20 feet away from switch to spark. -
Page 4: Specifications
SPECIFICATIONS & ELECTRICAL INFORMATION SPECIFICATIONS Model ......................................KC-6160V2 Voltage........................................208-240V Horsepower ....................................6.5 Peak HP Amperage ........................................13A RPM (no load speed) ....................................3,480 Phase ..........................................1 Hertz ..........................................60Hz Operating pressure ..........................95-125 PSI (field adjustable to 135 PSI) CFM @ 40 PSI ......................................13.4 CFM @ 90 PSI ......................................11.2 Tank size ......................................60 Gallon... - Page 5 MOUNTING AND BREAK-IN PROCEDURES MOUNTING Warning! This compressor is not intended for outdoor installation. Never use the transport skid for mounting purposes. Make sure you mount the air compressor in a clean, well ventilated area where the surrounding air temperature will not exceed 40 Celsius.
-
Page 6: Compressor Controls
COMPRESSOR CONTROLS ADDITIONAL REGULATORS AND CONTROLS Since the air tank pressure is usually greater than that which is needed, an air pressure regulator should be employed to control the air pressure ahead of any individual driven device. An air control unit which combines the function of air regulation, moisture and dirt removal should be used. -
Page 7: Operational Guidelines
OPERATIONAL GUIDELINES & MAINTENANCE OPERATIONAL GUIDELINES Moisture in compressed air When humidity is high or when the compressor is in continuous use for an extended period of time, this moisture will collect in the air tank. When using a spray gun or sandblast gun, this water will be carried from the tank through the hose and out of the gun as droplets mixed with the spray material. -
Page 8: Troubleshooting
TROUBLESHOOTING TROUBLE POSSIBLE CAUSE CORRECTIVE ACTION No start condition Fuse blown or circuit breaker tripped Check voltage or eliminate extension cord or reset Loose electrical connections Check wiring connections Overheated motor Wait for motor to cool, then press the reset button, restart Tank is at full pressure Drain tank of air pressure Low pressure...
