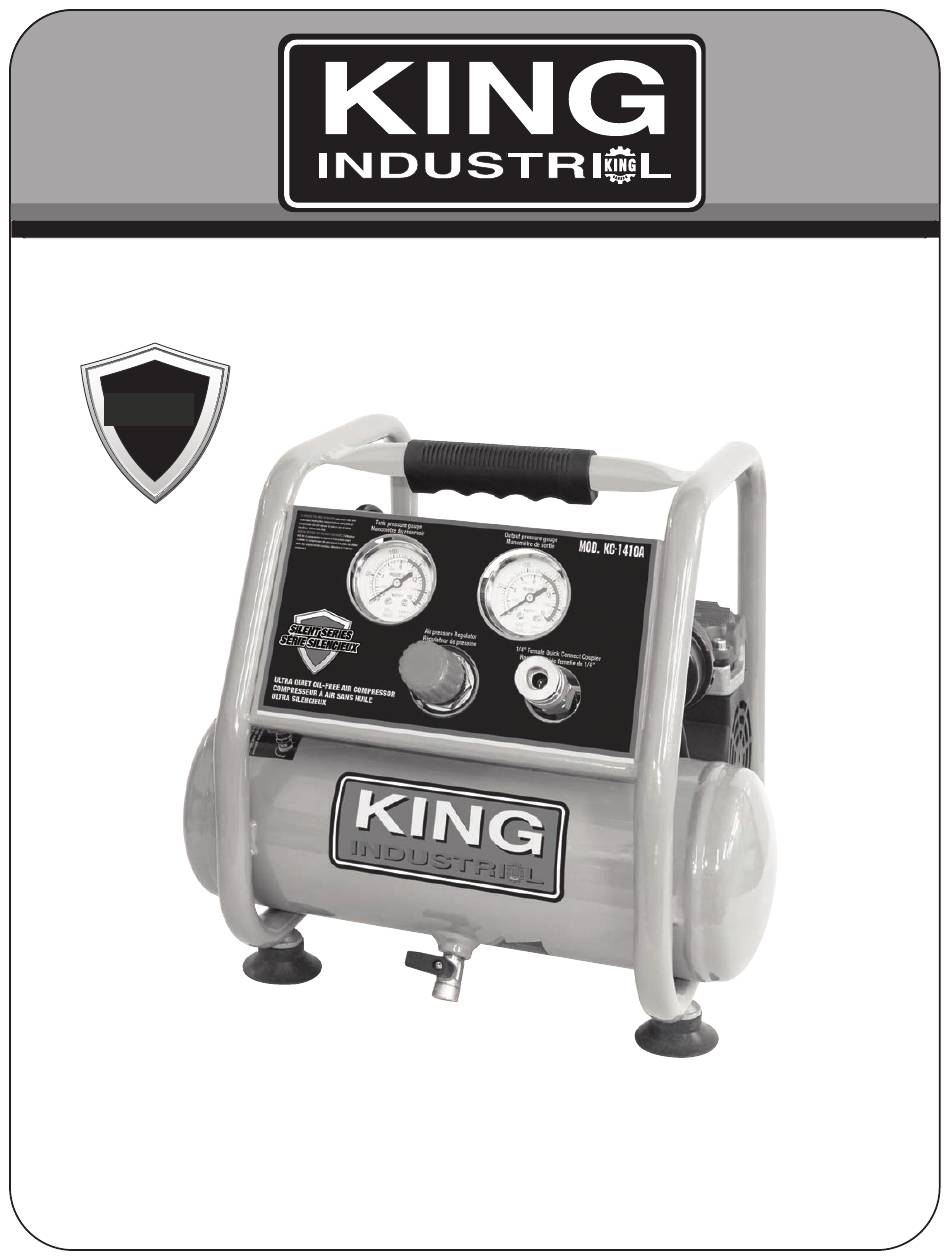

- Page 1 SILENT SERIES SILENT SERIES SILENT SERIES SILENT SERIES SILENT SERIES SÉRIE SILENCIEUX SÉRIE SILENCIEUX SÉRIE SILENCIEUX SÉRIE SILENCIEUX SÉRIE SILENCIEUX 09/2017 iNstructioN maNual moDel: Kc-1410a COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 WarraNtY iNformatioN 2-Year limiteD WarraNtY for tHis 1 galloN oil-free air compressor proof of purcHase Please keep your dated proof of purchase for warranty and servicing purposes. replacemeNt parts Replacement parts for this product are available at our authorized King Canada service centers across Canada. limiteD tool WarraNtY King Canada makes every effort to ensure that this product meets high quality and durability standards.
- Page 3 importaNt safetY iNstructioNs risK of explosioN or fire HoW to preVeNt it WHat caN HappeN Always operate the compressor in a well ventilated area free of combustible materials, gasoline or solvent vapors. If spraying It is normal for electrical contacts within the motor and pressure flammable materials, spray material at least 20 feet away from switch to spark.
- Page 4 & electrical iNformatioN specificatioNs model ........................................KC-1410A Voltage ........................................120V Horsepower ......................................0.75 HP amperage ........................................2.8A rpm (no load speed) ....................................1,750 phase ..........................................1 Hertz ..........................................60Hz operating pressure ..................................90-125 PSI cfm @ 40 psi ......................................1.8 cfm @ 90 psi ......................................1.2 tank size ......................................1 Gallon...
- Page 5 assemblY & compressor coNtrols assemblY aND locatioN of tHe air compressor Your compressor requires minor assembly. Install the air filter (A) Fig.3 to the pump casting as shown. Insert the muffler tube (B) into the muffler. Operate the air compressor in a dry, clean, cool, well ventilated area. The air compressor pump and case are designed to allow for proper cooling.
- Page 6 operatioNal guiDeliNes & maiNteNaNce operatioN coNtrols continued... DraiN ValVe (a) fig.7. The drain valve is located at the base of the air tank and is used to drain condensation at the end of each use. Turn drain valve counterclockwise to open (no pressure build-up) or clockwise to close it (permits pressure build-up).
- Page 7 troublesHootiNg trouble possible cause correctiVe actioN No start condition. Fuse blown or circuit breaker tripped. Check for cause of blown fuse/breaker and replace. Loose electrical connections. Check wiring connections. Overheated motor. Turn compressor off, wait until total cool-down before restarting. Low pressure. Air leak in safety valve.
