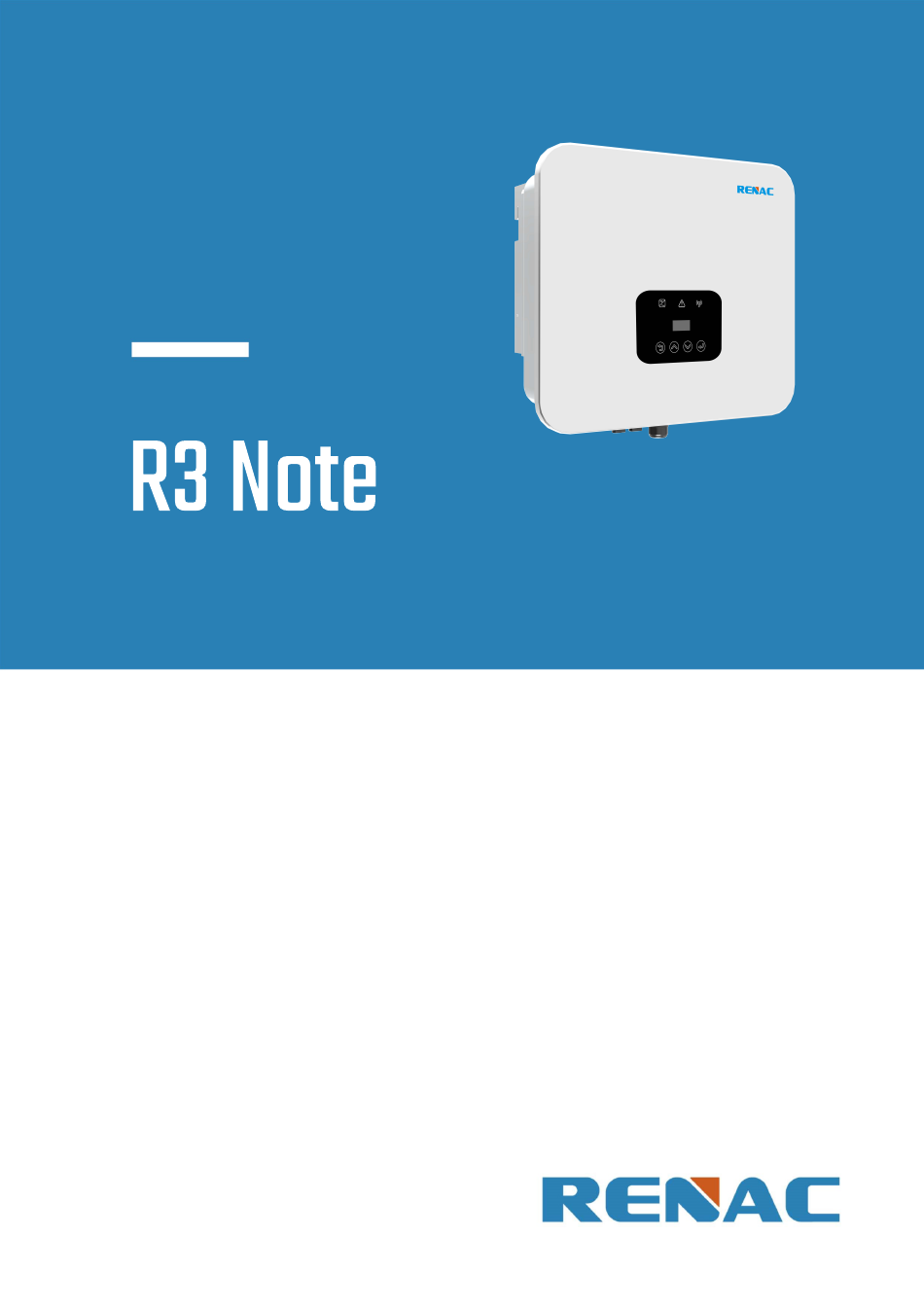

- Page 1 Series User Manual R3-4K R3-5K R3-6K R3-8K R3-10K-A R3-10K R3-12K...
-
Page 3: Table Of Contents
Contect 1. Introduction ..................................... 4 1.1 Introduction ..................................4 1.2 Applied designations ................................ 4 1.3 Important safety information ............................5 1.4 System sizing ................................... 5 2. Technical description of inverters ..............................6 2.1 Mechanical design ................................6 2.2 Electrical system design ..............................6 2.3 Technical data ................................. - Page 4 5.2.11 DRM0 setting ............................... 28 5.2.12 AFCI setting ................................ 28 5.2.13 PID setting ................................28 5.2.14 RCR setting ................................ 29 5.2.15 Software update ..............................29 5.2.16 New password setting ............................29 5.2.17 Reset setting ..............................30 5.3 Self-Test in accordance with CEI 0-21 (Applies to Italy only) ..................... 30 6.
-
Page 5: Copyright Declaration
Copyright Declaration All rights to the content of this manual are owned by RENAC Power Technology Co., Ltd. (hereinafter called as ‘RENAC Power’). Any corporation or individual should not plagiarize, partially or fully copy it, and reproduce or distribute it in any form or means without prior written permission from RENAC Power. -
Page 6: Introduction
R3 Note Series User manual 1. Introduction 1.1 Introduction This manual describes solar inverters: R3-4K / R3-5K / R3-6K / R3-8K / R3-10K-A / R3-10K / R3-12K. These inverters are transformerless based inverter. Please read the safety instructions in this manual first. Throughout the manual it is assumed that the reader is familiar with AC and DC installations and knows the rules and regulations for electrical equipment and connecting it to the utility AC grid. -
Page 7: Important Safety Information
The inverter incorporates an input power limiting device, which automatically keeps the power at levels that are safe for the inverter. The limitation depends mainly on internal and ambient temperatures. The limitation is calculated continuously and always allows the maximum possible amount of energy to be produced. Please use the tool supplied by Renac Power when dimensioning a photovoltaic system. -
Page 8: Technical Description Of Inverters
R3 Note Series User manual 2. Technical description of inverters 2.1 Mechanical design Figure 2-1 shows the outline dimensions of R3-4K / R3-5K / R3-6K / R3-8K / R3-10K-A / R3-10K / R3-12K: Figure 2-1 Outline dimensions Description Description DC Switch... -
Page 9: Technical Data
R3 Note Series User manual 2.3 Technical data R3-10K- Model R3-4K R3-5K R3-6K R3-8K R3-10K R3-12K DC Input Max. Recommended PV Power [Wp] 6000 7500 9000 12000 15000 15000 18000 Max. PV Power for Single MPPT [Wp] 3000 3750 4500... -
Page 10: Certifications & Standards
R3 Note Series User manual R3-10K- Model R3-4K R3-5K R3-6K R3-8K R3-10K R3-12K AC Surge Protection Integrated (Type II) General Data Size(Width*Height*Depth) [mm] 428*385*185 Weight [kg] Display LED + OLED Communication RS485 and USB(Standard), Wifi or 4G or Ethernet(Optional) Ambient Temperature Range [℃]... - Page 11 R3 Note Series User manual National/Regional Grid Code Description Greece Island Greece Island power Grid. EN50549-CZ Czech Republic power Grid. IEC61727-IN India power Grid. Korea Korea power Grid. EN50549-SW Sweden power Grid. China power Grid, Grid voltage range: 160-264.5V. China-W Grid frequency range: 47-52Hz.
-
Page 12: Installation And Startup
R3 Note Series User manual National/Regional Grid Code Description Australia C Australia C power Grid. EN50549-SIST Slovenia Grid. EN50549-HUN Hungary Grid. Pakistan Pakistan Grid. 3. Installation and startup WARNING! Before installation and maintenance, AC and DC side doesn't carry electricity, but if DC side is just disconnected, capacitance still contains electricity, so please wait for at least 5 minutes to ensure the capacitors completely release the energy and inverter is not electrified. -
Page 13: Installation Position
R3 Note Series User manual 4) Product label and warning symbol shall be clear to read after installation. 5) Please do not install inverter under direct sunlight, rain and snow. Figure 3-2 Installation environment 3.3 Installation position 1) The installation method and mounting location must be suitable for the inverter's weight and dimensions. -
Page 14: Mounting Procedure
R3 Note Series User manual 3.4 Mounting procedure 1. Drill 4 Fix φ11 holes in the wall according to the dimensions. 220mm Φ 11mm Figure 3-5 2. Fix the wall mounting bracket on the wall with 4 expansion bolts in accessory bag. -
Page 15: Electrical Connection
R3 Note Series User manual 3.5 Electrical connection 3.5.1 Earth connection One can additionally earth the inverter enclosure of a second earthed or equipotential bonding, which is required under local regulations. This prevents touch current if the original protective conductor fails. - Page 16 R3 Note Series User manual 2. Crimp the terminals with crimping pliers and Set the parts on the cable. Figure 3-10 3. Fully insert the conductors to the corresponding terminal and tighten the screws with the torque 2.0±0.1N·m. Pull cables outward to check whether they are firmly installed.
- Page 17 R3 Note Series User manual Disassembly the inverter from the Grid: 1. Use a screwdriver to press against the unlocked position and hold the wire nut and pull it back to complete the separation of the male and female ends.
-
Page 18: Connection To Pv String (Dc Input)
R3 Note Series User manual 3.5.3 Connection to PV string (DC input) 1) Before connecting PV string, make sure DC switch is turned off. 2) Make sure PV string polarity confirms with DC connector, otherwise, it will cause damage to inverter. -
Page 19: Rcr Port (Europe Standard)
R3 Note Series User manual 3.7 RCR Port (Europe Standard) In Europe, the grid company uses the Ripple Control Receiver (RCR) to convert the grid dispatching signal and send it as a dry contact signal. The wiring of the ripple control receiver dry contact cables is shown in the figure below. - Page 20 R3 Note Series User manual 4. The cables are inserted into the terminal according to the wire sequence (K1/K2/K3/K4/+3.3V), so that the insulating terminal is flush with the surface of the terminal, and the crimping screw torque is 0.2N·m. 0.2N.m Figure 3-26 5.
-
Page 21: Com Port
Insert a USB flash disk for local software upgrade. Please contact after-sales personnel for details. 3.10 Meter connection Renac R3 4-12kW series inverter has the function of anti-reverse current, which can control the power exported to the grid by connecting an intelligent electricity meter. -
Page 22: Rs485 Connection
R3 Note Series User manual CT direction Grid SDM630MCT Load Meter 230V AC Power supply Grid Meter+ R3 4-12kW series Meter- inverter PV Panels Figure 3-31 The meter communication port needs to be connected correctly, otherwise it will not be able to communicate. -
Page 23: Afci Function (Optional)
R3 Note Series User manual (2) Multi-inverter communication system: Inverter 1 Inverter 2 Inverter 16 Group 1 …… Inverter 1 Inverter 2 Inverter 16 …… Group 2 Inverter 16 Inverter 2 Inverter 1 Group N …… …… N≤7 Figure 3-33 In a large power plant, the EMB-100 (Optional) enables the networking of 112 inverters and it has monitoring and export limit function. -
Page 24: Commissioning
R3 Note Series User manual 4. Commissioning 4.1 Check before operation 1) Three phases of five wires (PE/L1/L2/L3/N) cable correctly connected to the inverter AC side through the AC circuit breaker; 2) The DC cable is connected correctly to the inverter DC side through the DC circuit breaker. Please pay attention to the cable connected to the string correctly and its polarity;... -
Page 25: User Interface
R3 Note Series User manual 5. User interface 5.1 Led and key Figure 5-1 LED display Name Description The inverter has connected to the grid and is operating normally. 1. The inverter is powered on and in the waiting stage. -
Page 26: Lcd Operation
R3 Note Series User manual 5.2 LCD operation Mean Structure: Normal =====Solar===== =====Solar===== =====Solar===== =====Grid===== INV-P: PV1-V: 0.0V PV2-V: 0.0V PV Conf:IND PhaseA-V: 0.0V PV1-I: 0.0A PV2-I: 0.0A PhaseA-I: 0.0A XX-XX XX:XX:XX PV1-P: 0.0KW PV2-P: 0.0KW =====Menu===== =====Grid===== >Status PhaseB-V: 0.0V... - Page 27 R3 Note Series User manual ====On-Grid==== ===Grid Code=== >Grid Code >VDE4105-DE Grid Feed in limit ===Advanced*=== ======Grid====== ==Volt Protect== ==Volt Protect== >On-Grid >Volt Protect >Level-1 OV >Level-1 UV Feature Freq Protect 000.0V 000.0V New Password Normal INV-P: ==Volt Protect== ==Volt Protect==...
-
Page 28: Setting
R3 Note Series User manual 5.2.1 Setting There are two types of confirmation in the setting function. 1. Press and hold the OK button for 2~3 seconds to confirm the selection. If the setting is successful, ‘Set Succeed’ will be displayed below;... -
Page 29: Date And Time Setting
R3 Note Series User manual 5.2.4 Date and time setting =====Menu===== ====Settings==== ===Date&Time=== Status Language Date: xx-xx-xx History >Date&Time Time: xx:xx:xx >Settings PV Config 5.2.5 PV configuration setting =====Menu===== ====Settings==== ===PV Config=== ===PV Config=== Status Language >IND >Parallel History Date&Time >Settings... -
Page 30: Grid Code Setting
R3 Note Series User manual 5.2.10 Grid code setting =====Menu===== ====Settings==== ====Password==== Status PV Config History Comm Addr 0 0 0 0 >Settings >Advanced* ===Advanced*=== ====On-Grid==== ===Grid Code=== >On-Grid >Grid Code >VDE4105-DE Feature Grid New Password Feed in limit 5.2.11 DRM0 setting... -
Page 31: Rcr Setting
>No< >No< Step 1: Please contact Renac technicians to obtain the upgrade program. Step 2: Insert the USB disk into the computer and copy the upgrade program to the USB disk. Step 3: Insert the USB disk into the USB port of the inverter. -
Page 32: Reset Setting
R3 Note Series User manual 5.2.17 Reset setting =====Menu===== =====Settings===== ====Password==== ===Advanced*=== Status PV Config Feature History Comm Addr 0 0 0 0 New Password >Settings >Advanced* >Reset =====Reset===== =====Reset===== =====Reset===== >Reset Energy Reset Energy Reset Energy Reset ErrLogs >Reset ErrLogs... -
Page 33: Service After Warranty Expiration
R3 Note Series User manual 5) Documentation of previous claim/exchanges (if applicable). In the case of an exchange, the remainder of the warranty entitlement will be transferred to the replacement device. In this event, you will not receive a new certificate, as this replacement will be noted by factory. - Page 34 • Check if the fan is stopped by dust or other foreign. • Or seek help from us, if cannot go back to normal state. PLL Error The errors are internal faults of Renac inverter Island Error • Turn off PV and grid, wait for 5 minutes, then reconnect.
-
Page 35: Maintenance
Restart the inverter only after removing the fault that impairs safety performance. As the inverter NOTICE contains no component parts that can be maintained, never arbitrarily replace any internal components. For any maintenance need, please contact Renac Power. Otherwise, Renac Power shall not be held liable for any damage caused. 8.1 Routine Maintenance... - Page 36 R3 Note Series User manual User Manual Download Centre www.renacpower.com 422-00161-04...
