Renac R3 Lv Series Quick Installation Manual

Quick Installation Guide
R3 Lv Series

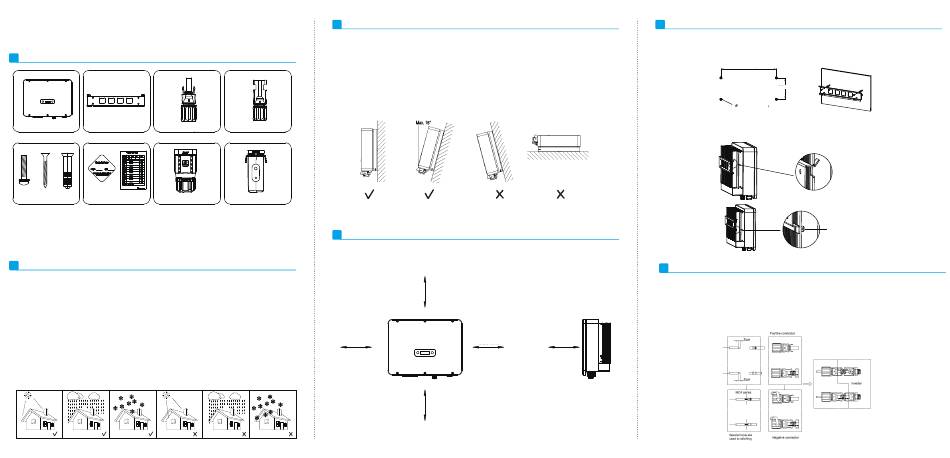

Package Information
I
INVERTER*1 MOUTING PANEL*1
PV CONNETOR(+)*4
QIG*1
SCREW*1 QC PASS*1
FACTORY REPOER*1
EXPAMSION TUBE*4 AC connector*1
Installation Environment
Ⅱ
1) In order to achieve optimal performance, the ambient temperature should be kept lower than 45 °C.
2) For the convenience of checking the LCD display and possible maintenance activities,
please install the inverter at eye level.
3) Inverters should not be installed near inflammable or explosive items. Any strong electro-magnetic
equipment should be kept away from installation site.
4) Product label and warning symbol shall be clear to read after installation.
5) Please do not install inverter under direct sunlight, rain and snow.
No sun No rain No snow Sunlight
01
Installation Position
Ⅲ
1) The installation method and mounting location must be suitable for the inverter's weight and
dimensions.
2) Mount on a solid surface.
3) Select a well-ventilated place sheltered from direct sun radiation.
PV CONNETOR(-)*4
GPRS/WIFI(OPT.)
Installation Space
Ⅳ
The installation minimum clearances around the inverter should be no less than the following
value:
300mm
Rain Snow
500mm
300mm
300mm
500mm
Figure 3-3 Distance required of Invertors
02
Mounting The Inverter
Ⅴ
1) Drill 4 Fix Ø11 holes in the wall according to the dimensions, fix the wall mounting bracket on
the wall with 4 expansion bolts in accessory bag.
400mm
50mm
4- 11Holes,Depth 50mm
2) Place the inverter on the wall-mounted bracket and install the fix screws.
fix screw
Electrical Connection
Ⅵ
PV connection
1) Connect the PV strings to DC input port of inverter; make sure the maximum open circuit voltage
(Voc) of each PV string does not exceed the inverter input voltage Vmax under any condition.
03
