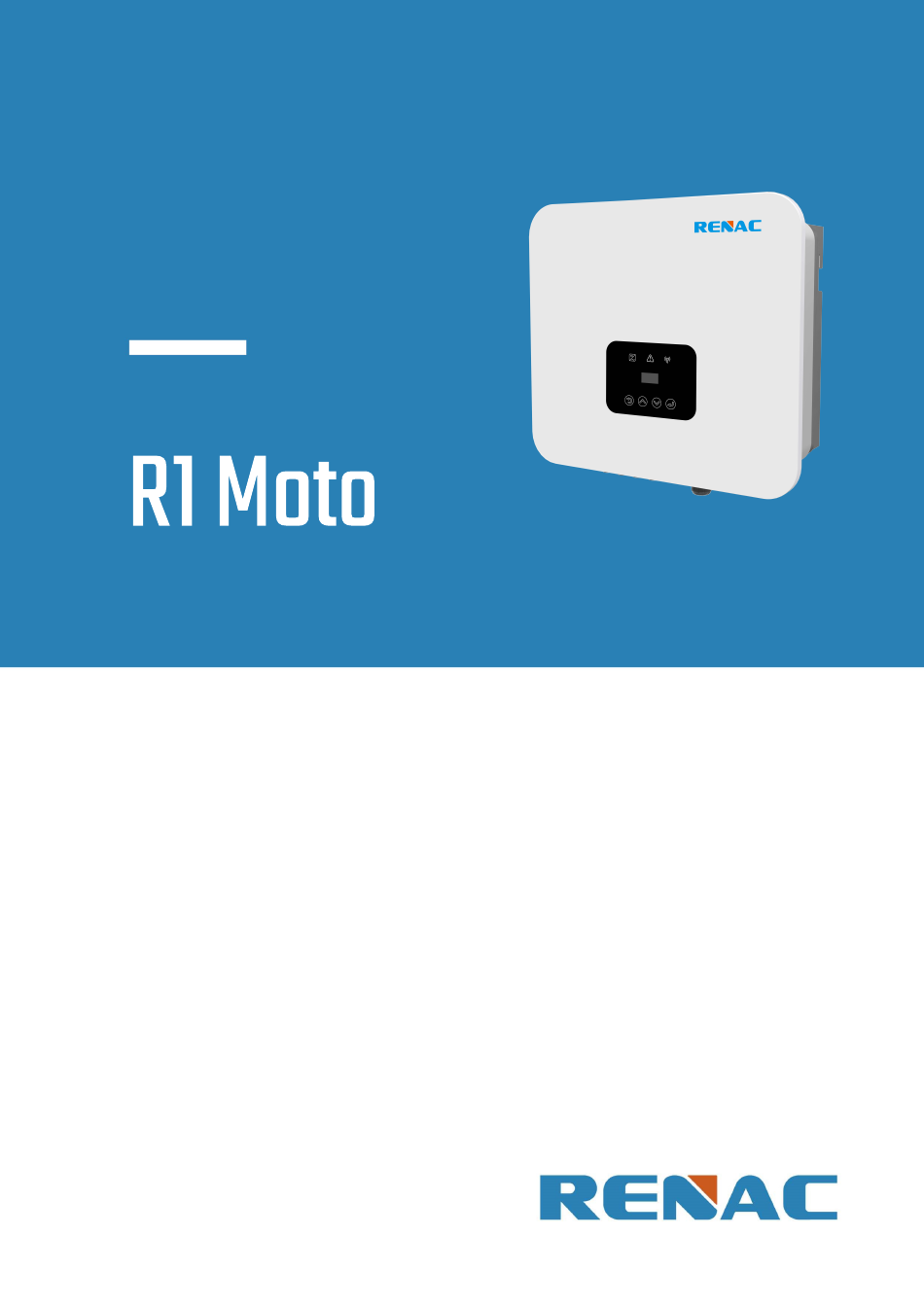

- Page 1 Series User Manual R1-7K5 R1-8K R1-10K R1-10K5...
-
Page 3: Table Of Contents
Content 1. Introduction ................................. 4 1.1 Introduction ..................................4 1.2 Applied designations ................................ 4 1.3 Important safety information ............................5 1.4 System sizing ................................... 5 2. Technical description of inverters ..........................6 2.1 Mechanical design ................................6 2.2 Electrical system design ..............................7 2.3 Technical data ................................. - Page 4 4.2.8 System switch setting ............................26 4.2.9 Inverter information checking ..........................26 4.2.10 Grid Code ................................26 4.2.11 DRM0 setting ............................... 26 4.2.12 AFCI setting ................................ 27 4.2.13 Software update ..............................27 4.2.14 New password setting ............................27 4.2.15 Reset Setting ..............................27 4.3 Self-Test in accordance with CEI 0-21 (Applies to Italy only) .....................
-
Page 5: Copyright Declaration
Copyright Declaration All rights to the content of this manual are owned by RENAC Power Technology Co., Ltd. (hereinafter called as ‘RENAC Power’). Any corporation or individual should not plagiarize, partially or fully copy it, and reproduce or distribute it in any form or means without prior written permission from RENAC Power. -
Page 6: Introduction
R1 Moto Series User Manual 1. Introduction 1.1 Introduction This manual describes solar inverters: R1-7K5 / R1-8K / R1-10K / R1-10K5. These inverters are transformerless based inverter. Please read the safety instructions in this manual first. Throughout the manual it is assumed that the reader is familiar with AC and DC installations and knows the rules and regulations for electrical equipment and for connecting it to the utility grid. -
Page 7: Important Safety Information
The inverter incorporates an input power limiting device which automatically keeps the power at levels that are safe for the inverter. The limitation depends mainly on internal and ambient temperatures. The limitation is calculated continuously and always allows the maximum possible amount of energy to be produced. Please use the tool supplied by Renac Power when dimensioning a photovoltaic system. -
Page 8: Technical Description Of Inverters
R1 Moto Series User Manual 2. Technical description of inverters 2.1 Mechanical design Figure 2-1 shows the outline dimensions of R1-7K5 / R1-8K / R1-10K / R1-10K5. 428mm 185mm Figure 2-1 Outline dimensions Figure 2-2 shows the electrical terminals of R1-7K5 / R1-8K / R1-10K / R1-10K5. -
Page 9: Electrical System Design
R1 Moto Series User Manual 2.2 Electrical system design For safety reasons, the use of a DC switch is recommended. Between the PV modules and the power modules may be mandatory in some countries. Figure 2-3 Block diagram of the inverter system 2.3 Technical data... - Page 10 R1 Moto Series User Manual Model R1-7K5 R1-8K R1-10K R1-10K5 Inrush Current (Peak and Duration) (A) Maximum Output Overcurrent 68.2 Protection (A) Efficiency Max. Efficiency 98.1% 98.1% 98.1% 98.1% Euro Efficiency 97.5% 97.5% 97.5% 97.5% Protection DC Insulation Monitoring Integrated...
-
Page 11: Grid Codes
R1 Moto Series User Manual 2.4 Grid codes National/Regional Grid Code Description VDE4105-DE Germany power Grid, meet Grid standards “VDE-AR-N-4105”. CEI0-21 Italy power Grid. Australia A Australia A power Grid. RD1699 Spain power Grid. EN50549 Default EN50549 Grid setting. EN50549-DK-W West Denmark power Grid. -
Page 12: Installation And Startup
R1 Moto Series User Manual National/Regional Grid Code Description Thailand power Grid. Thailand power Grid. Grid voltage range: 160-280V. MEA-W Grid frequency range: 47-52Hz. Brazil-LV 120V 60Hz voltage of grid L to N (R3-10-15K-LV only, others reserved). EN50549-DK-E East Denmark power Grid. -
Page 13: Package Information
R1 Moto Series User Manual 3.1 Package information PV cable terminal(-) with PV cable terminal(+) with Inverter * 1 Mounting Panel * 1 a corrugated pipe * 4 a corrugated pipe * 4 Expansion tube M6 & screw AC terminal & related... -
Page 14: Installation Position
R1 Moto Series User Manual 3.3 Installation position 1) The installation method and mounting location must be suitable for the inverter's weight and dimensions. 2) Mount on a solid surface. 3) Select a well-ventilated place sheltered from direct sun radiation. -
Page 15: Mounting Procedure
R1 Moto Series User Manual 3.4 Mounting procedure 1. Drill 4 fixedΦ11 holes in the wall according to the dimensions. 319mm 4-Φ11 Holes Depth 50mm Figure 3-5 2. Fix the wall mounting bracket on the wall with 4 expansion bolts in accessory bag. -
Page 16: Electrical Connection
R1 Moto Series User Manual Fix screw 3N.m Figure 3-8 Mounting the inverter 2 3.5 Electrical connection 3.5.1 Earth connection One can additionally earth the inverter enclosure of a second earthed or equipotential bonding, which is required under local regulations. This prevents touch current if the original protective conductor fails. - Page 17 R1 Moto Series User Manual Connect the inverter to the grid as follows: 1. Strip off L/N/PE cables. Figure 3-10 Strip off PE/N/L cables Description Remark Protective layer Diameter ranges : 15 - 19mm Length of stripped off 12mm Insulate layer...
- Page 18 R1 Moto Series User Manual Figure 3-14 Figure 3-15 5. Insert the main part of AC connector into the terminal and hear a "click" sound. Complete the installation. Figure 3-16 Figure 3-17 Unlock AC terminal instructions 1. Use the unlocking tool to press and pull the female end back against the unlocked position to separate it from the inverter end.
-
Page 19: Connection To Pv String (Dc Input)
R1 Moto Series User Manual 3. Use the rubber core removal tool to peel off the red circle position on both sides to complete the removal. Figure 3-21 3.5.3 Connection to PV string (DC input) 1) Before connecting PV string, make sure DC switch is turned off. -
Page 20: Communication
R1 Moto Series User Manual 3.5.4 Communication Overview of communication ports: Figure 3-23 Communication ports *The RSV_485A and RSV_485B ports are occupied when the AFCI function of the inverter is enabled. 3.5.4.1 WIFI / 4G / Ethernet communication (Optional) Connect the WIFI / 4G / Ethernet module produced by manufacturer to the COM port of inverter. After successful connection, information such as power generation and running state of the inverter can be viewed via the App on the phone. -
Page 21: Ct Or Meter Connection (Optional)
R1 Moto Series User Manual Local mode Ethernet WIFI Bluetooth Router Base Station Internet Wireless Mobile App Figure 3-24 3.5.4.2 CT or Meter Connection (Optional) The inverter is equipped with the feed-in power limit function, and the communication port on inverter is "CT / Meter"... -
Page 22: Drm Connection
R1 Moto Series User Manual Gird Meter Loads Figure 3-26 3.5.4.3 DRM connection The inverter supports the demand response modes as specified in the standard AS/NZS4777. The inverter has integrated a terminal for connecting to a DRED. The details please refer to figure 3-23, and for CEI standard, DRM0 is the Dl port. -
Page 23: Starting The Inverter
R1 Moto Series User Manual 3.6 Starting the inverter Before turning on the inverter, please confirm: 1) Three AC wires (PE/L/N) cable correctly connected to the inverter AC side through AC circuit breaker; 2) The DC cable connected correctly to the inverter DC side through DC circuit breaker, please be attention to the cable connected to the two string correctly and its polarity;... -
Page 24: User Interface
R1 Moto Series User Manual 4. User interface 4.1 LED and key Figure 4-1 LED display Name Description The inverter has connected to the grid and is operating normally. 1. The inverter is powered on and in the waiting stage. -
Page 25: Lcd Display
R1 Moto Series User Manual 4.2 LCD display Menu Structure:... - Page 26 R1 Moto Series User Manual...
-
Page 27: Setting
R1 Moto Series User Manual 4.2.1 Setting There are two types of confirmation in the setting function. 1. Press and hold the OK button for 2~3 seconds to confirm the selection. If the setting is successful, ‘Set Succeed’ will be displayed below;... -
Page 28: Pv Configuration Setting
R1 Moto Series User Manual 4.2.5 PV configuration setting 4.2.6 Communication address setting 4.2.7 Checking error logs 4.2.8 System switch setting 4.2.9 Inverter information checking The AFCI hardware and software versions are displayed only when the AFCI function is enabled. -
Page 29: Afci Setting
R1 Moto Series User Manual 4.2.12 AFCI setting To enable the AFCI function, you need to set it up. When electric arcs occur, the inverter will alarm and lock out to provide protection. You need to manually clear the alarm on the inverter so that it can work properly. -
Page 30: Warranty
R1 Moto Series User Manual There are two ways to execute the self-test: Self-Test from screen: 5. Warranty 5.1 Warranty claim procedure Please report defective device with a brief error description and SN code to our service mail or service hotline for registration. -
Page 31: Troubleshooting And Maintenance
R1 Moto Series User Manual 6. Troubleshooting and Maintenance 6.1 Troubleshooting Once a fault occurs in the inverter, the fault information can be displayed on screen or the App interface. Fault codes and check methods are as follows: LCD display Possible actions Grid voltage too low. -
Page 32: Maintenance
Restart the inverter only after removing the fault that impairs safety performance. As the inverter NOTICE contains no component parts that can be maintained, never arbitrarily replace any internal components. For any maintenance need, please contact Renac Power. Otherwise, Renac Power shall not be held liable for any damage caused. 6.2.1 Routine Maintenance... - Page 33 R1 Moto Series User Manual Maintenance Instruction Cleaning Air Inlet and Outlet A huge amount of heat is generated in the process of running the inverter. The inverter adopts a controlled forced-air cooling method. In order to maintain good ventilation, please check to make sure the air inlet and outlet are not blocked. Clean the air inlet and outlet with soft brush or vacuum cleaner if necessary.
- Page 36 R1 Moto Series User Manual...
