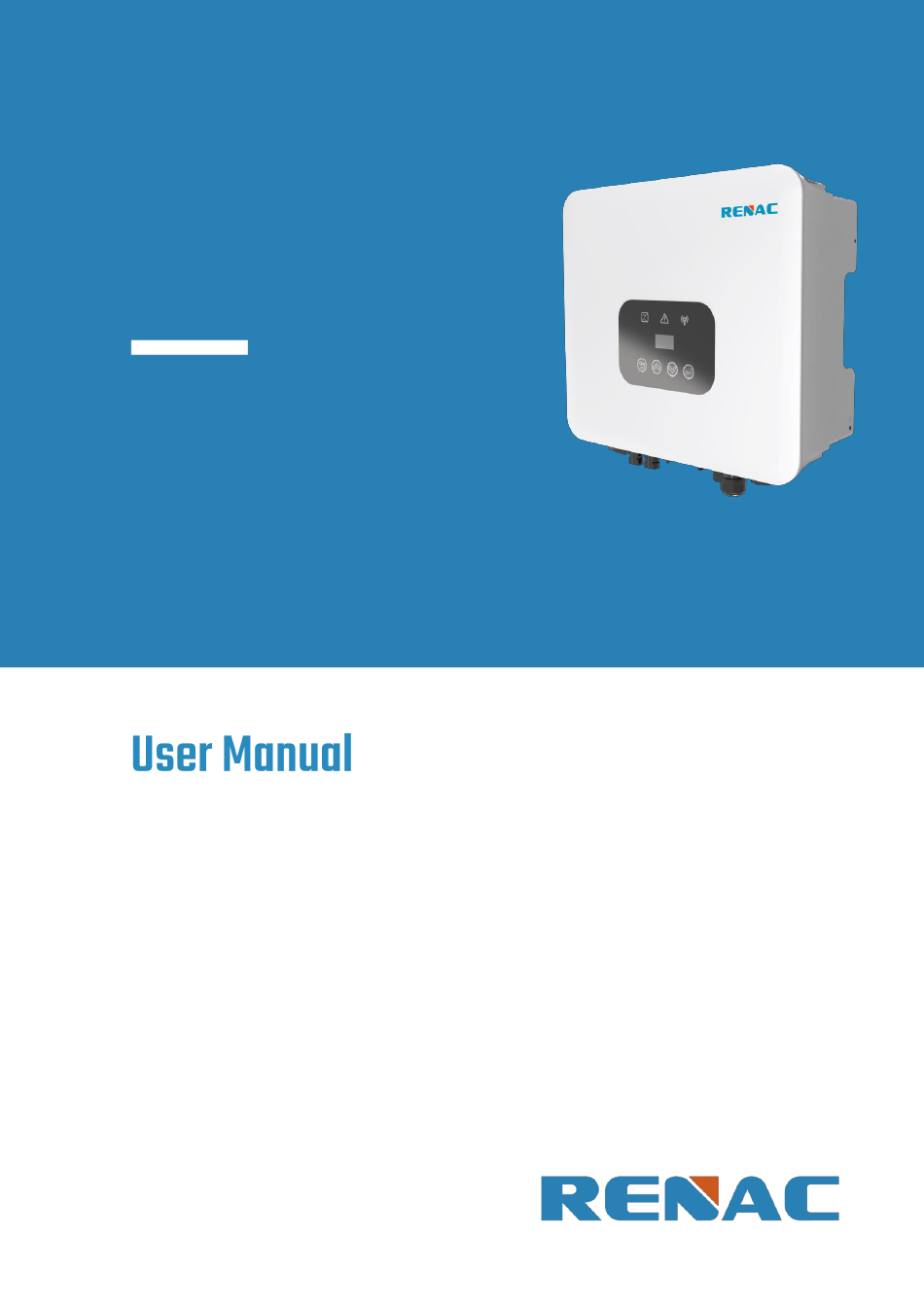

- Page 1 R1 Macro Series R1-3.68K R1-4K R1-5K-A R1-5K R1-6K...
-
Page 3: Table Of Contents
Content 1. Introduction ................................3 1.1 Introduction ..............................3 1.2 Applied designations ............................3 1.3 Important safety information ........................... 4 1.4 System sizing ..............................4 2. Technical description of inverters ..........................5 2.1 Mechanical design ............................5 2.2 Electrical system design ..........................5 2.3 Technical data ............................... - Page 4 5. Warranty ................................24 5.1 Warranty claim procedure ..........................25 5.2 Service after warranty expiration ........................25 6. Troubleshooting and Maintenance ......................... 25 6.1 Troubleshooting ............................25 6.2 Maintenance ..............................27 6.2.1 Routine Maintenance ...........................27...
-
Page 5: Introduction

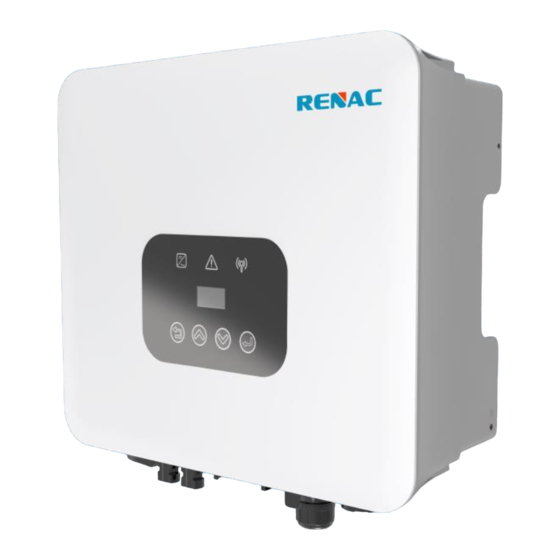

R1 Macro Series User Manual 1. Introduction 1.1 Introduction This manual describes solar inverters：R1-3.68K / R1-4K / R1-5K-A / R1-5K / R1-6K. These inverters are transformerless based inverter. Please read the safety instructions in this manual first. Throughout the manual it is assumed that the reader is familiar with AC and DC installations and knows the rules and regulations for electrical equipment and for connecting it to the utility AC grid. -
Page 6: Important Safety Information
The limitation depends mainly on internal and ambient temperatures. The limitation is calculated continuously and always allows the maximum possible amount of energy to be produced. Please use the tool supplied by Renac Power when dimensioning a photovoltaic system. -
Page 7: Technical Description Of Inverters
R1 Macro Series User Manual 2. Technical description of inverters 2.1 Mechanical design Figure 2-1 shows the outline dimensions of R1-3.68K / R1-4K / R1-5K-A / R1-5K / R1-6K. Figure 2-1 Outline dimensions Figure 2-2 shows the electrical terminals of R1-3.68K / R1-4K / R1-5K-A / R1-5K / R1-6K. -
Page 8: Technical Data
R1 Macro Series User Manual Figure 2-3 Wiring diagram of the inverter system 2.3 Technical data Model R1-3.68K R1-4K R1-5K-A R1-5K R1-6K PV Input Data Max. Recommended PV Power 5500 6000 7500 7500 9000 [Wp] Max. PV Power for Single... - Page 9 R1 Macro Series User Manual Model R1-3.68K R1-4K R1-5K-A R1-5K R1-6K Duration) (A) Maximum Output Overcurrent 43.4 54.6 Protection (A) Efficiency Max. Efficiency 97.9% 97.9% 97.9% 97.9% 97.9% Euro Efficiency 97.2% 97.2% 97.2% 97.2% 97.2% Protection DC Insulation Monitoring Integrated...
-
Page 10: Grid Codes
R1 Macro Series User Manual 2.4 Grid codes National/Regional Grid Code Description VDE4105-DE Germany power Grid, meet Grid standards “VDE-AR-N-4105”. CE10-21 Italy power Grid. AS4777 Australia power Grid. RD1699 Spain power Grid. EN50549 Default EN50549 Grid setting. EN50549-DK-W West Denmark power Grid. -
Page 11: Installation And Startup
R1 Macro Series User Manual Thailand power Grid. Thailand power Grid, Grid voltage range: 160-280V, Grid frequency MEA-W range: 47-52HZ. Brazil-LV 120V 60Hz voltage of grid L to N(R3-10-15K-LV only, others reserved. EN50549-DK-E East Denmark power Grid. Tunisia-W Tunisia wide range. -
Page 12: Installation Environment
R1 Macro Series User Manual 3.2 Installation environment 1) In order to achieve optimal performance, the ambient temperature should be kept lower than 45℃. 2) For the convenience of checking the LCD display and possible maintenance activities, please install the inverter at eye level. -
Page 13: Mounting Procedure
R1 Macro Series User Manual above ≥ 800mm below ≥ 800mm the front ≥ 500mm both sides ≥ 500mm Figure 3-4 Distance required of inverters 3.4 Mounting procedure 1. Drill 2 fixed Φ11 holes in the wall according to the dimensions. -
Page 14: Electrical Connection
R1 Macro Series User Manual Figure 3-7 Mounting the inverter 3.5 Electrical connection 3.5.1 Connection to the grid (AC output) 1) Add breaker or fuse to AC side, the specification should be more than 1.25 times of rated AC output current. - Page 15 R1 Macro Series User Manual 2. Crimp the terminals with crimping pliers and Set the parts on the cable. Insert the terminal holes in sequence. Figure 3-9 3. Fully insert the conductors to the corresponding terminal and tighten the screws with the torque 0.8 N.m. Pull cables outward to check whether they are firmly installed.
-
Page 16: Connection To Pv String (Dc Input)
R1 Macro Series User Manual 3. Remove the female end of the cable to unlock the account. Figure 3-13 3.5.2 Connection to PV string (DC input) 1) Before connecting PV string, make sure DC switch is turned off. 2) Make sure PV string polarity confirms with DC connector, otherwise, it will cause damage to inverter. -
Page 17: Communication
R1 Macro Series User Manual 3.5.3 Communication Overview of communication ports: Figure 3-15 Communication ports *The RSV_485A and RSV_485B ports are occupied when the AFCI function of the inverter is enabled. 3.5.3.1 WIFI/4G/Ethernet Communication (Optional) Connect the WIF / 4G / Ethernet module produced by manufacturer to the COM port of inverter. After successful connection, information such as power generation and running state of the inverter can be viewed via the App on the phone. -
Page 18: Ct Or Meter Connection (Optional)
R1 Macro Series User Manual Local mode WIFI Ethernet Bluetooth Router Base Station Wireless Internet Mobile App Figure 3-16 3.5.3.2 CT or Meter Connection (Optional) The inverter is equipped with the feed-in power limit function, and the communication port on inverter is "CT/Meter"... -
Page 19: Drm Connection
R1 Macro Series User Manual Gird Meter Meter 485A Meter 485B Loads Figure 3-18 3.5.3.3 DRM connection The inverter supports the demand response modes as specified in the standard AS/NZS4777. The inverter has integrated a terminal for connecting to a DRED. The details please refer to figure 3-15, and for CEI standard, DRM0 is the Dl port. -
Page 20: User Interface
R1 Macro Series User Manual 2) The DC cable connected correctly to the inverter DC side through DC switch, please be attention to the cable connected to the two string correctly and its polarity; 3) The unused terminals are covered. -
Page 21: Lcd Display
R1 Macro Series User Manual 4.2 LCD display Mean Structure: Normal =====Menu===== =====Solar===== =====Solar===== =====Solar===== =====Grid===== Power: >Status Vpv1: 0.0V Vpv2: 0.0V PV Conf: Comm Vac: 0.0V History Ipv1: 0.0/0.0A Ipv2: 0.0/0.0A Iac: 0.0A Settings Ppv1: Ppv2: Pac: XX-XX XX:XX:XX... -
Page 22: Language Setting
R1 Macro Series User Manual =====Settings===== ====On-Grid==== ====Safety==== PV Config >Safety >AS4777 Comm Addr Grid >Advanced* Export Control ====Grid==== ==Volt Protect== ==Volt Protect== ==User Verify== >Voit Protect >Vac Upper Slow >Vac 10M Avg Freq Protect 260.0V 255.0V 0 0 0 0... -
Page 23: Export Power (Ct) Setting
R1 Macro Series User Manual 4.2.2 Export power (CT) setting Setting export control: 1 =====Menu===== Normal =====Settings===== ==User Verify== Power: Status PV Config History Comm Addr 0 0 0 0 XX-XX XX:XX:XX >Advanced* >Settings ===Advanced*=== ====On-Grid==== =Export Control= >On-Grid Safety >User Value... -
Page 24: System Switch Setting
R1 Macro Series User Manual 4.2.7 System switch setting =====Menu===== Normal ===SysSwitch=== ===SysSwitch=== Power: History >Turn On >Turn Off Settings XX-XX XX:XX:XX >SysSwitch 4.2.8 Inverter information checking The AFCI hardware and software versions are displayed only when the AFCI function is enabled. -
Page 25: Software Upgrade
R1 Macro Series User Manual 4.2.12 Software upgrade The AFCI can only be upgraded when the AFCI function is enabled. Normal =====Menu===== =====Settings===== ==User Verify== ===Advanced*=== Power: Status PV Config New Password History Comm Addr 0 0 0 0 Reset XX-XX XX:XX:XX >Settings... -
Page 26: Warranty
R1 Macro Series User Manual There are two ways to execute the self-test: Auto-Test from screen: Normal =====Menu===== ====Settings==== ==User Verify== Power: Status PV Config History Comm Addr 0 0 0 0 XX-XX XX:XX:XX >Settings >Advanced* ===Advanced*=== ====On-Grid==== ====Safety==== ====Safety==== >On-Grid... -
Page 27: Warranty Claim Procedure
R1 Macro Series User Manual 5.1 Warranty claim procedure Please report defective device with a brief error description and SN code to our service mail or service hotline for registration. Alternatively, please contact your specific dealer or installer if your unit is defective or faulty. To claim the... - Page 28 R1 Macro Series User Manual Fault ID LCD display Possible actions Disconnect PV, and grid, then reconnect. Inv SW OCP Fault • Or seek help from us, if not go back to normal state. DC component is out of limit in output current.
-
Page 29: Maintenance
Restart the inverter only after removing the fault that impairs safety performance. As the NOTICE inverter contains no component parts that can be maintained, never arbitrarily replace any internal components. For any maintenance need, please contact Renac Power. Otherwise, Renac Power shall not be held liable for any damage caused. 6.2.1 Routine Maintenance... - Page 32 R1 Macro Series User Manual...
