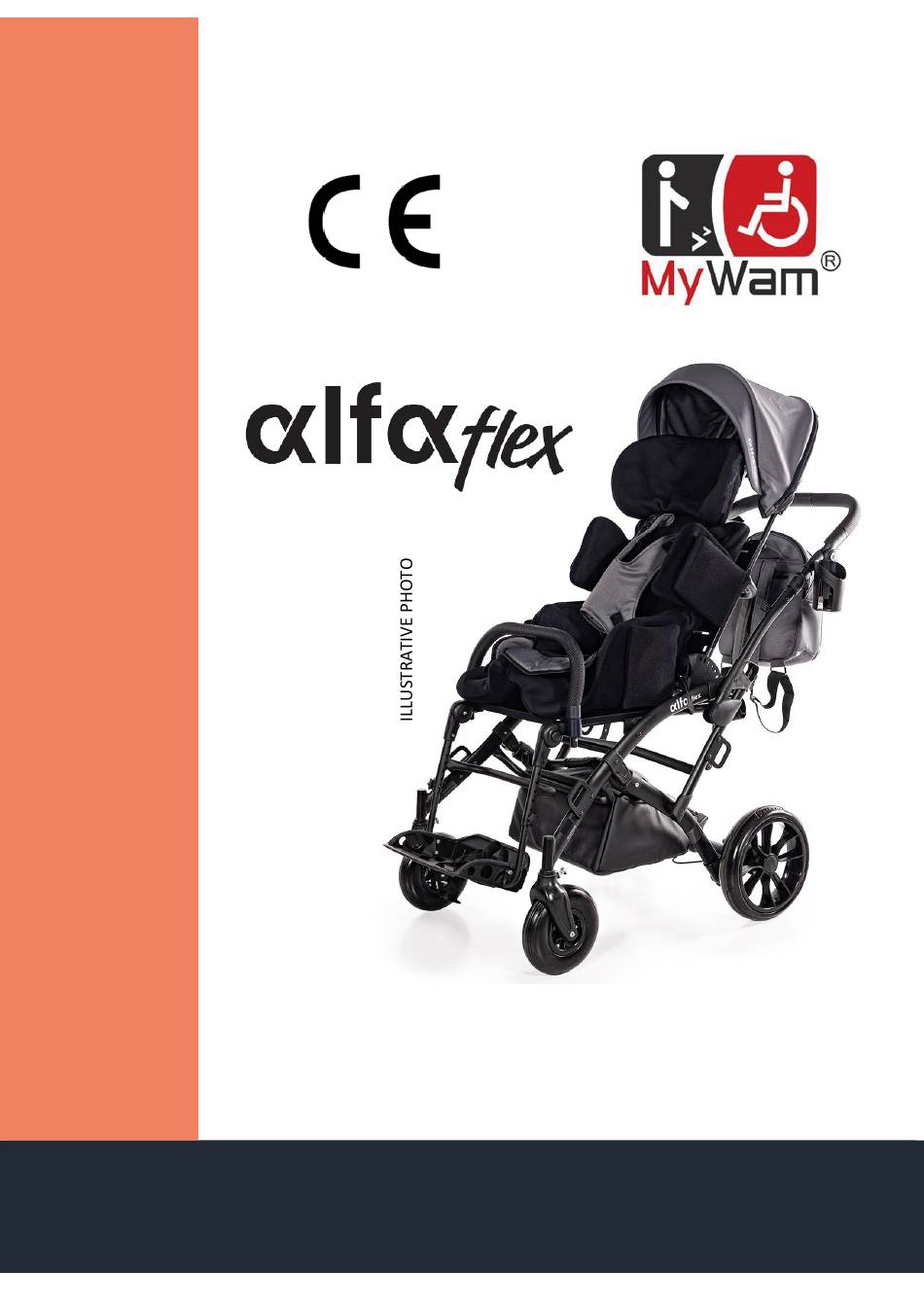

- Page 1 MANUFACTURER / MARKETING AND ADVERTISING: MyWam Sp. z o.o. OPERATION AND MAINTENANCE MANUAL Edition 1 / 2024-11-07 Special needs stroller ALFA flex THIS IS A MEDICAL DEVICE. USE IT ACCORDING TO THE INSTRUCTION MANUAL OR LABEL.
-
Page 2: Purpose Of The Manual
REMARK! Before starting to use the stroller, each User is obliged to read the content of this manual and follow it. REMARK! In the event of any medical incident related to the presence of the ALFA flex stroller, the manufacturer must be immediately notified in writing by registered letter or e-mail with acknowledgement of receipt. -
Page 3: Table Of Contents
Edition 1 / 2024-11-07 TABLE OF CONTENTS PURPOSE AND INDICATIONS FOR USE..................... 5 PLATES ..............................5 SYMBOLS DESIGNATION .......................... 5 IMPORTANT INSTRUCTIONS AND SAFETY RULES ..................6 GENERAL CONSTRUCTION OF THE STROLLER ..................7 STROLLER FUNCTIONS ..........................9 Unfolding the stroller frame ........................9 Folding the stroller frame ........................ - Page 4 Edition 1 / 2024-11-07 TECHNICAL SPECIFICATIONS OF THE ALFA flex STROLLER ..............34 Material composition of the stroller ....................... 34 DELIVERY AND TOOLS ..........................34 10. ASSEMBLY AND DISASSEMBLY OF THE STROLLER ................. 35 11. PREPARATION FOR USE .......................... 35 12.
-
Page 5: Purpose And Indications For Use
1. PURPOSE AND INDICATIONS FOR USE The special needs stroller ALFA flex is a class I medical device indicated for use by those disabled children who, due to their condition, cannot walk, stand or sit independently. The product is intended for transporting and moving the above people in a sitting or lying position and for posture correction. -
Page 6: Important Instructions And Safety Rules
This may cause the stroller to tip over and injure the user! Does not apply to original additional accessories dedicated to the ALFA flex stroller that do not exceed the permissible load. All additional elements attached to the stroller affect its stability. -
Page 7: General Construction Of The Stroller
Edition 1 / 2024-11-07 5. GENERAL CONSTRUCTION OF THE STROLLER Basic equipment 1- Canopy with window 17- Backrest height adjustment 2- STABILO headrest cushion 18- Hip pads 3- Corset backrest STABILO 19- Angle adjustment mechanism for the entire 4- Safety vest footrest 5- Safety barrier 20- Footrest length adjustment... - Page 8 Edition 1 / 2024-11-07 Accessories 1- Sunshade umbrella 5- Rain cover 2- Therapeutic table 6- Winter gloves 3- Sleeping bag for legs 7- Backpack 4- Mosquito net 8- Shopping basket 10 | P a g e...
-
Page 9: Stroller Functions
Edition 1 / 2024-11-07 6. STROLLER FUNCTIONS Unfolding the stroller frame Pull down the transport lock The backrest assembly mechanism is located at the back of the seat. Slide in the backrest Unlocked mechanism set at the height of the holes on both sides P a g e... - Page 10 Edition 1 / 2024-11-07 Slide the pins into the holes on both sides Lock the backrest attachment mechanism Pull the handle up and adjust the backrest angle 10 | P a g e...
-
Page 11: Folding The Stroller Frame
Edition 1 / 2024-11-07 Folding the stroller frame Unlock the backrest attachment mechanism Lower the mechanism down Remove the backrest Press the red button Simultaneously pull the handles on both sides of the frame upwards 11 | P a g e... -
Page 12: Transport Lock. Putting On And Taking Off The Transport Lock
Edition 1 / 2024-11-07 Attach the transport lock Transport lock. Putting on and taking off the transport lock Lock applied Removed lock Front swivel wheels. Front wheels directional lock Locking the front wheels 12 | P a g e... -
Page 13: Rear Wheels. Assembly And Removal Of The Rear Wheels On The Axle
Edition 1 / 2024-11-07 Unlocking the front wheels Rear wheels. Assembly and removal of the rear wheels on the axle Wheel assembly Press in at the recess 13 | P a g e... -
Page 14: Rear Wheel Amortization System
Edition 1 / 2024-11-07 Removal of wheels Rear wheel amortization system Hard suspension Soft suspension Push handle for the stroller Angle adjustment mechanism of the push handle Press the buttons on both sides and change the angle of the push handle. -
Page 15: Central Brake
Edition 1 / 2024-11-07 Angle adjustment of the push handle Central brake The central brake is only used to lock the wheels completely – there is no dynamic braking function. REMARK! Regularly check condition of the brake and remove any dirt and mud. Tilt Foot Using a tilt foot makes it easier to drive the stroller up small... -
Page 16: Mechanism For Attaching The Backrest To The Stroller Frame
Edition 1 / 2024-11-07 Mechanism for attaching the backrest to the stroller frame Assembly the backrest to the frame The backrest assembly mechanism is located at the back of the seat. Slide in the backrest Unlocked mechanism set at the height of the holes on both sides Slide the pins into the holes on both sides 16 |... - Page 17 Edition 1 / 2024-11-07 Lock the backrest attachment mechanism Pull the handle up and adjust the backrest angle Removing the backrest from the frame Unlock the backrest attachment mechanism 17 | P a g e...
-
Page 18: Seat Depth Adjustment
Edition 1 / 2024-11-07 Lower the mechanism down Remove the backrest Seat depth adjustment Pull the seat towards you or slide it in. Minimum seat depth Maximum seat depth REMARK! To adjust the seat depth, use an Allen key (included). 18 | P a g e... -
Page 19: Frame Adjustment For Changing The Seat Angle
Edition 1 / 2024-11-07 Frame adjustment for changing the seat angle Seat angle adjustment mechanism Make sure the pins have snapped both sides of stroller. Seat angle adjustment Backrest height adjustment Minimum setting Maximum setting Button indicating the highest backrest height backrest height backrest height 19 |... -
Page 20: Frame Adjustment Of The Backrest Tilt Angle
Edition 1 / 2024-11-07 REMARK! To adjust the height of the backrest, use an Allen key (included). Frame adjustment of the backrest tilt angle Backrest angle adjustment mechanism Make sure the pins have snapped on both sides of stroller. Backrest angle adjustment Remark! Each time you change the angle of of the backrest, you need to readjust the vest. -
Page 21: Footrest
Edition 1 / 2024-11-07 Footrest Footrest height adjustment Minimum height Maximum height Footrest angle adjustment Press the buttons on both sides change the angle of the footrest. Remark! During transport, storage, rehabilitation, getting in and out of the stroller, the footrest plate must be folded. -
Page 22: Safety Vest
Edition 1 / 2024-11-07 Safety vest Remark! When removing the backrest, unfasten the vest. Remember to fasten the vest when assembling the backrest. Assembling the vest to the stroller Remark! Each time you change the angle of inclination of the backrest, you need to readjust the vest. -
Page 23: Adjustable Headrest Pad
Edition 1 / 2024-11-07 Adjustable headrest pad Pad height adjustment Adjustable thoracolumbar pads 23 | P a g e... -
Page 24: Adjustable Hip Pads
Edition 1 / 2024-11-07 Backrest width adjustment Adjustable hip pads Seat width adjustment 24 | P a g e... -
Page 25: Abduction And Stabilization Belts
Edition 1 / 2024-11-07 Seat depth adjustment Abduction and stabilization belts Attaching the straps to the seat Attaching the straps to the stroller frame 25 | P a g e... -
Page 26: Safety Barrier
Edition 1 / 2024-11-07 Safety barrier Press the button on both sides and slide the barrier in or out. Adjustable canopy with window Mechanism for assembling the canopy to the stroller frame Slide the mount on the canopy into the mount on the stroller frame. -
Page 27: Cup Holder
Edition 1 / 2024-11-07 Window with mosquito net Cup holder Seat with gusset and side pads stabilizing the entire pelvis STABILO 27 | P a g e... -
Page 28: Corset Backrest Stabilo
Edition 1 / 2024-11-07 Forming the seat with a hand pump Form the seat and suck the air out with the pump until the desired firmness is achieved. To change the shape, screw the hose itself into the valve and wait for the seat to soften. REMARK! Temperature change affects the hardness of the seat (temperature increase –... -
Page 29: Stabilo Headrest Cushion
Edition 1 / 2024-11-07 Forming the backrest with a hand pump Form a backrest and pump out the air until the desired hardness is achieved. To change the shape, screw the hose itself into the valve and wait for the backrest to soften. REMARK! Temperature change affects the hardness of the backrest (temperature increase –... -
Page 30: Stabilo Stabilizing Belt
Edition 1 / 2024-11-07 Forming the headrest with a hand pump Form a headrest and pump the air out until the desired hardness is achieved. To change the shape, screw the hose itself into the valve and wait for the backrest to soften. REMARK! Temperature change affects the hardness of the headrest (temperature increase –... -
Page 31: Accessories
Edition 1 / 2024-11-07 7. ACCESSORIES Adjustable therapeutic table (placed in place of a safety barrier) The maximum load is 3kg. Backpack The maximum load of the backpack is 2kg. Shopping basket The maximum load of the shopping basket is 3kg. 31 | P a g e... -
Page 32: Winter Gloves
Edition 1 / 2024-11-07 Winter gloves Rain cover (put on an adjustable canopy with a window) Sleeping bag for legs (put on the safety barrier) 32 | P a g e... -
Page 33: Mosquito Net (Attached To Adjustable Canopy With A Window)
Edition 1 / 2024-11-07 Mosquito net (attached to adjustable canopy with a window) Sunshade umbrella 33 | P a g e... -
Page 34: Technical Specifications Of The Alfa Flex Stroller
Edition 1 / 2024-11-07 8. TECHNICAL SPECIFICATIONS OF THE ALFA flex STROLLER length of the stroller 100-145 cm width of the stroller 66 cm height of the stroller 94-147 cm total weight 26 kg effective seat depth 30-37 cm* seat width... -
Page 35: Assembly And Disassembly Of The Stroller
On the basis of the specification check the package content (in case of any missing elements contact your Seller). No tools are required to assemble and disassemble the ALFA flex stroller. To adjust the height of the backrest and the depth of the seat, use the 4mm Allen key included in the package. -
Page 36: Moving The Stroller
Edition 1 / 2024-11-07 o In the case of using any additional aids such as cannula, drains, bags, catheters, etc. it is important to ensure that they are well protected against falling out, pulling out, clamping and do not interfere with the use of the stroller. -
Page 37: Getting In And Out Of The Stroller
Edition 1 / 2024-11-07 13. GETTING IN AND OUT OF THE STROLLER When getting on and off the stroller, place the stroller as close as possible to a stable and safe place to which the user will be transferring. After making sure that the central brake is active and the footplate is raised lifted to avoid standing on it, the user can change their position. -
Page 38: Moving On Inclined Surfaces
The ALFA flex stroller should not be used as a seat to transport a child in a vehicle. 19. CLEANING AND CARE STABILO cushions can be washed in the washing machine at a temperature of up to 40°C. -
Page 39: Storing Your Stroller
Edition 1 / 2024-11-07 Make sure the product is always dry before use. If you use detergents dedicated to this type of material – follow the instructions of the agent used. Wash at 40° Do not bleach Do not tumble dryer Do not iron 20. -
Page 40: Disposal
Class I Medical Device compliant with Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 on medical devices. The manufacturer has issued an appropriate declaration of conformity for the product, which can be found on the website www.mywam.eu 40 | P a g e... -
Page 41: List Of Authorized Service Points
Edition 1 / 2024-11-07 24. LIST OF AUTHORIZED SERVICE POINTS POLAND MyWam sp. z o.o. Wiosny Ludów 91, 40-373 Katowice, Poland phone: +48 32 733 11 31 Website: www.mywam.eu E-mail address: mywam@mywam.eu 41 | P a g e... -
Page 42: Warranty Card
Edition 1 / 2024-11-07 25. WARRANTY CARD Series and number: ......... Date of purchase: ......- ......- ......Stamp and signature of the seller: ......................................................................................................Warranty conditions • The Seller provides the buyer with a warranty for the purchased stroller for a period of 24 months, counting from the date of purchase. -
Page 43: Notes
Edition 1 / 2024-11-07 26. NOTES 43 | P a g e...
