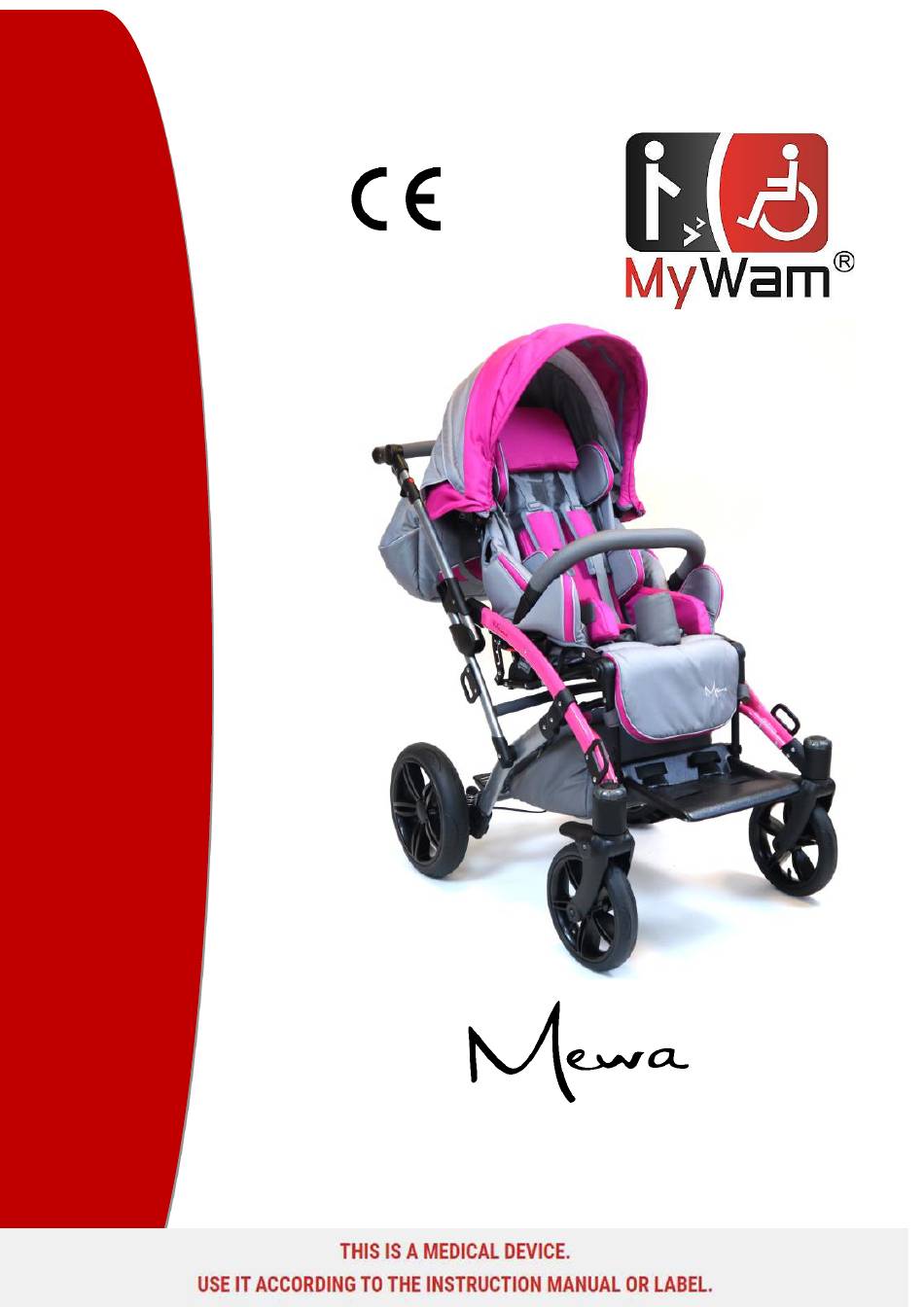

- Page 1 MANUF ACTURER / MARKETING AND ADVERTISING: MyWam LLC Ilustrative photo Operation and maintenance manual Edition no.:10 / 2023-12-05 The special stroller for children MEWA Users A modern stroller of excellent drivability with...
- Page 2 ATTENTION! Before using the stroller, each User is obliged to read the manual and act in accordance with its guidelines. ATTENTION! In the event of any medical incidents related to the presence of the Mewa stroller, the Manufacturer must be immediately notified in writing by contacting it via registered letter or e-mail with acknowledgment of receipt.
-
Page 3: Table Of Contents
MEWA Edition no. 10 / 2023-12-05 Table of contents Purpose and indications for the use of the Mewa stroller ............... 5 Quick start ............................5 Important instructions and safety rules................... 6 Plates ..............................7 Symbols designation ......................... 7 General construction of the stroller ....................8 Configuration and use –... - Page 4 MEWA Edition no. 10 / 2023-12-05 11.1. Material composition of the stroller ..................19 Delivery and tools ........................19 13. Assembly and disassembly of the stroller..................... 20 14. Preparation for use ..........................21 15. Using the stroller ........................... 21 15.1 Carrying the stroller ........................
-
Page 5: Purpose And Indications For The Use Of The Mewa Stroller
1. Purpose and indications for the use of the Mewa stroller The special needs stroller Mewa is a medical device class I indicated for use by disabled children who, due to their health condition, cannot walk or sit down on their own. The product is intended for the transport and movement of the above persons in a sitting or lying position and for posture correction and this is its intended use. -
Page 6: Important Instructions And Safety Rules
It is forbidden to put additional weight on the stroller, especially when it comes to placing an additional weight on the back of the backrest, e.g. a backpack or a bag. This may cause the Mewa stroller to tip over and injure the user! It does not apply to original additional accessories dedicated to the Mewa stroller that do not exceed the permissible load. -
Page 7: Plates
MEWA Edition no. 10 / 2023-12-05 4. Plates Identification plate Plate with UDI code Warning plate Symbols designation Product serial number The manufacturer's name Permitted total user weight The product is a medical device DESCRIPTION "WARNING!" and Date of manufacture... -
Page 8: General Construction Of The Stroller
MEWA Edition no. 10 / 2023-12-05 Product 6. General construction of the stroller • Standard equipment The basic elements of the stroller frame include: 1- Adjustable canopy with window - 11.3 2- Ergonomic handle for pushing the stroller - 9.7 3- Five-point belts - 11.1... -
Page 9: Configuration And Use - Stroller Frame
MEWA Edition no. 10 / 2023-12-05 Configuration and use – stroller frame 7.1. Frame folding mechanism • left and right joint – element allowing to fold the upper part of the frame in order to minimize its size • frame folding mechanism with transport lock Fig 7.1 Frame folding points... -
Page 10: Front Wheels. Front Wheels Swivel Lock, Mounting, Dismounting
MEWA Edition no. 10 / 2023-12-05 7.4. Front wheels. Front wheels swivel lock, mounting, dismounting • Mounting. slide the wheel from below. Correct placement of the wheel will be confirmed with the clear “click” sound. Dismounting. press the quick release clamp – see Pict. -
Page 11: Rear Wheel Suspension System
MEWA Edition no. 10 / 2023-12-05 7.6. Rear wheel suspension system Suspension works automatically. The adjustment is done by activating the up-down lever located from the bottom of the shock absorber. In order to facilitate the switchover of settings by the lever, simultaneous pressure on the shock absorber spring is allowed. -
Page 12: Footrest. Adjustment And Use
MEWA Edition no. 10 / 2023-12-05 7.11. Footrest. Adjustment and use. • Footrest height adjustment: use a Phillips screwdriver to remove the screws (Fig. 7.11), then set the footrest to the desired height and mount the footrest with the screws. -
Page 13: Configuration And Use - Therapeutic Seat With Backrest
MEWA Edition no. 10 / 2023-12-05 8. Configuration and use - therapeutic seat with backrest 8.1. Assembly and disassembly of the seat to the frame • Installing the seat: put the seat in the hooks of the frame. Tighten the seat until there are two clicks (Fig. -
Page 14: Basic Equipment
MEWA Edition no. 10 / 2023-12-05 NOTE! Every time you change the tilt of the backrest, you need to readjust the length of the five-point straps! Adjustments should be made with the brake on. Fig 8.3 Reclining backrest handle 9. Basic equipment 9.1. -
Page 15: Adjustable Canopy With Window
MEWA Edition no. 10 / 2023-12-05 9.3. Adjustable canopy with window • Canopy elements: frame (front and rear arch), canopy adjustment mechanism (right and left), two snaps with red buttons fastening the canopy to the frame, canopy upholstery, and a window with a mosquito net with a zipper. -
Page 16: Abduction Block (Wedge)
MEWA Edition no. 10 / 2023-12-05 9.6. Abduction block (Wedge) For certain indications, the abduction block provides inversion (side-to-side deviation) of the child's lower extremities from the center of the child's body. The abduction block has a two-stage adjustment level. Fig.9.6 9.7. -
Page 17: Therapy Table
MEWA Edition no. 10 / 2023-12-05 Fig 10.2.1 Fig 10.2.2 Fig 10.2.3 Fig 10.2.4 Unfasten the upholstery at both sides / Release the knobs / Fasten the upholstery 10.3. Therapy table Maximum load capacity of the table is 3kg – Fig.10.3. -
Page 18: Winter Sleeping Bag
MEWA Edition no. 10 / 2023-12-05 Fig 10.5 Fig 10.6 Fig 10.7 Travel bag Sun umbrella Winter gloves 10.8. Winter sleeping bag Requires mounting to another accessory - the safety barrier. Installation: put the sleeping bag from the bottom on the footrest, and from the top put it through the safety barrier and clip it to the frame of the stroller (Fig. -
Page 19: Technical Specification Of The Mewa Stroller
(if any of the components are missing, contact the vendor). No tools are required for assembly and disassembly of the Mewa stroller except for adjusting the height of the footrest, where a Phillips screwdriver is needed. -
Page 20: Assembly And Disassembly Of The Stroller
MEWA Edition no. 10 / 2023-12-05 13. Assembly and disassembly of the stroller • Stroller assembly. The product pre-packed in the original carton is already pre-assembled. Complete the installation by completing the following steps: a) mount the rear wheels on the axle... -
Page 21: Preparation For Use
MEWA Edition no. 10 / 2023-12-05 14. Preparation for use Before using the stroller: o Check that the stroller frame has been correctly unfolded and that the frame folding mechanism has been correctly closed (locked). o Verify that the seat has been properly mounted to the stroller frame and that the mechanism for attaching the seat to the stroller frame has been properly closed (locked). -
Page 22: Correct Position In A Stroller
The Mewa stroller should not be used as a seat to transport a child in a vehicle. P a g e... -
Page 23: Cleaning And Care
MEWA Edition no. 10 / 2023-12-05 15.8 Cleaning and care The upholstery can be washed in a washing machine at temperatures up to 40 The upholstery should be dried on the stroller structure. All stains should be cleaned immediately after. -
Page 24: Disposal
Class I medical device in accordance with the Regulation of the European Parliament and of the Council (EU) 2017/745 of April 5, 2017 on medical devices. The manufacturer issued an appropriate declaration of conformity for the product, which is available at www.mywam.eu P a g e... -
Page 25: List Of Authorized Service Points
MEWA Edition no. 10 / 2023-12-05 19 List of authorized service points POLAND MyWam LLC Wiosny Ludów 91 street, 40-373 Katowice, Poland tel: +48 32 733 11 31 www.mywam.eu adres e-mail: serwis@mywam.pl P a g e | 25... -
Page 26: Warranty Card
MEWA Edition no. 10 / 2023-12-05 20 Warranty Card Series and number: ......... Date of purchase: ......- ......- ......Seller stamp and signature Warranty conditions • The Seller grants the buyer a warranty on the purchased stroller, for a period of 24 months, starting from the date of purchase. - Page 27 MEWA Edition no. 10 / 2023-12-05 22. Notes P a g e | 27...
