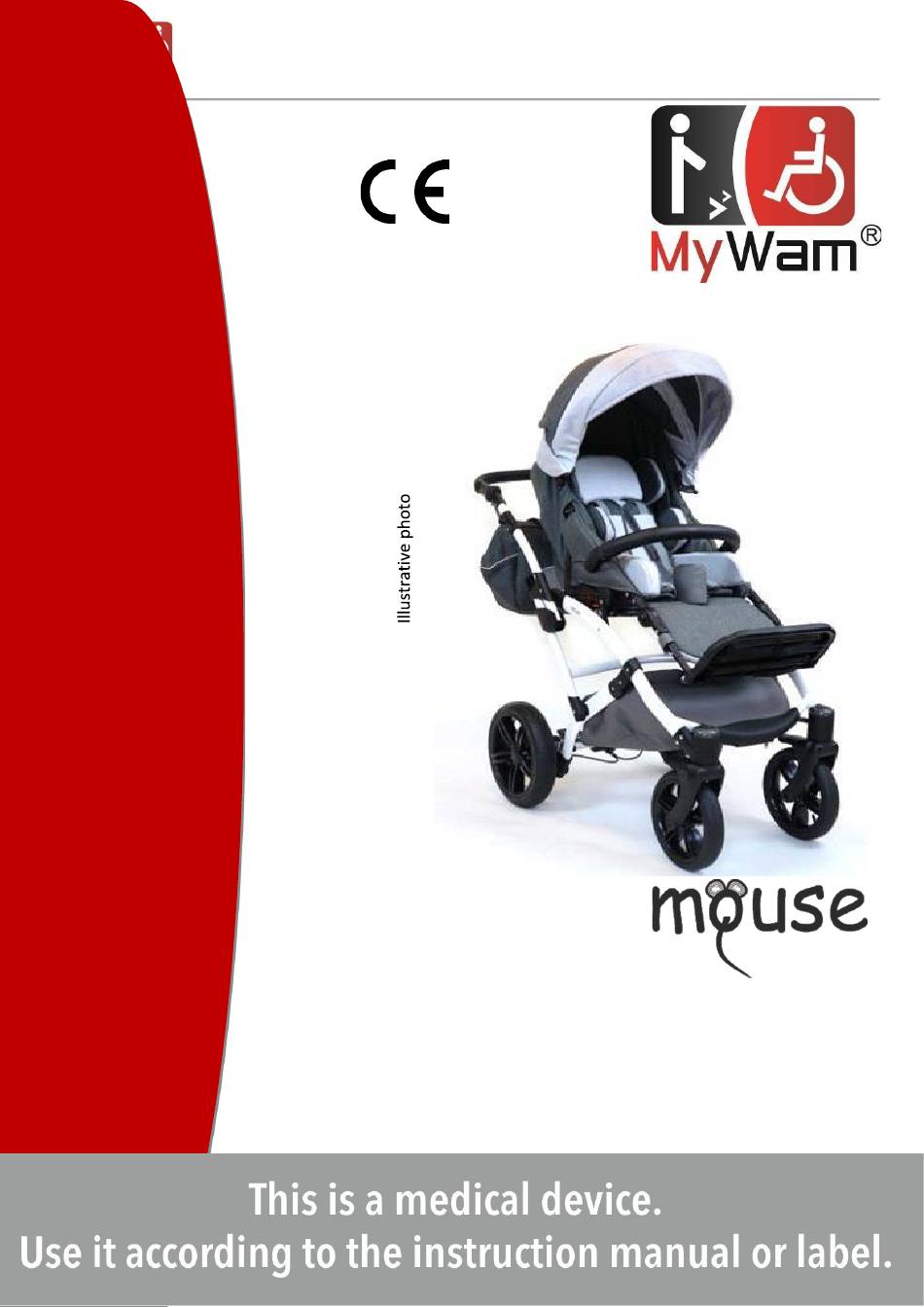

9th Edition /2023-12 -05
PRODUCER / ADVERTISEMENT PROVIDER: LLC
Operation and maintenance
manual
Edition 9/2023-12-05
Special needs stroller Mouse
Page
|
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mouse and is the answer not in the manual?

Questions and answers

Related Manuals for MyWam Mouse

Summary of Contents for MyWam Mouse

  • Page 1 9th Edition /2023-12 -05 PRODUCER / ADVERTISEMENT PROVIDER: LLC Operation and maintenance manual Edition 9/2023-12-05 Special needs stroller Mouse Page...
  • Page 2 ATTENTION! Before using the stroller, each User is obliged to read the manual and act in accordance with its guidelines. ATTENTION! In the event of any medical incidents related to the presence of the Mouse stroller, the Manufacturer must be immediately notified in writing by contacting it via registered letter or e-mail with acknowledgment of receipt.

  • Page 3: Table Of Contents

    9th Edition /2023-12 -05 Table of contents 1. Purpose and indications for the use of the stroller ....................... 5 2. Quick start ..................................5 3. Important safety tips and rules ............................6 4. Plates ....................................7 5. Symbol designation ................................. 7 6.
  • Page 4 9th Edition /2023-12 -05 10.1. Adjustable headrest - ↔ and ↕ ............................. 14 10.2. Adjustable chest and loin pads - ↔ and ↕ ........................14 10.3. Therapy table .................................. 15 10.4. Seat minimizing kit ................................15 10.5. Travel bag ..................................15 10.6.

  • Page 5: Purpose And Indications For The Use Of The Stroller

    1. Purpose and indications for the use of the stroller The special needs stroller Mouse is a medical device class I indicated for use by disabled children who, due to their health condition, cannot walk or sit down on their own. The product is intended for the transport and movement of the above persons in a sitting or lying position and for posture correction and this is its intended use.

  • Page 6: Important Safety Tips And Rules

    It is forbidden to put additional weight on the stroller, especially when it comes to placing an additional weight on the back of the backrest, e.g. a backpack or a bag. This may cause the Mouse stroller to tip over and injure the user! It does not apply to original additional accessories dedicated to the Mouse stroller that do not exceed the permissible load.

  • Page 7: Plates

    9th Edition /2023-12 -05 Plates Identification plate Plate with UDI code Warning plate Symbol designation Product serial number Manufacturer’s name The product is a medical device Permitted total user weight DESCRIPTION "WARNING!" and the symbol in this manual Date of manufacture are used to enhance the reader's attention to the content marked with this sign.

  • Page 8: Configuration And Use - Stroller Frame

    MOUSE Edition 9/2023-12-05 7.Configuration and use – stroller frame 7.1. Frame folding mechanism • left and right joint – element allowing to fold the upper part of the frame in order to minimize its size • frame folding mechanism with transport lock Fig.

  • Page 9: Front Wheels. Installation And Removal. Directional Locking Device

    MOUSE Edition 9/2023-12-05 7.4. Front wheels. Installation and removal. Swivel lock • Installation: Slide the axle into the hole of the wheel hub until it clicks. • Disassembly: press the button of the quick disassembly system and pull off the wheel ( Fig.

  • Page 10: Push Handle. Mechanism And Angular Adjustment

    MOUSE Edition 9/2023-12-05 7.7. Push handle. Mechanism and angular adjustment Adjustment mechanism. These are two buttons on the outside of the frame, located on the joints of the push handle (Pict. 7.7). • Angular adjustment: press both buttons of the push handle angle adjustment mechanism and change its angle.

  • Page 11: Footrest. Adjustment And Use

    MOUSE Edition 9/2023-12 - 05 7.11. Footrest. Adjustment and use. • Angle adjustment: press the buttons marked in the picture on both sides of the footrest, then set the desired position and release the buttons (Fig. 7.11.1). • Height adjustment: remove the footrest mounting screws and pull the footrest out of the joints.

  • Page 12: Adjustable Backrest

    MOUSE Edition 9/2023-12 - 05 8.3. Adjustable backrest The backrest can be adjusted to different reclining positions: from sitting to lying down. To change the recline of the backrest, first relieve it by slightly moving the entire backrest toward a more seated position. Then pull up the handle located on the back of the backrest and slowly change the tilt of the backrest.

  • Page 13: Safety Barrir

    MOUSE Edition 9/2023-12 - 05 9.2. Safety barrier • Installation install using the same mounts as for the therapy table ( it is impossible to use both at the same time). Slide the barrier into the left and right mount until it clicks.

  • Page 14: Abduction Block (Wedge)

    MOUSE Edition 9/2023-12 - 05 9.6. Abduction block (Wedge) For certain indications, the abduction block provides inversion (side-to-side deviation) of the child's lower extremities from the center of the child's body. The abduction block has a two- stage adjustment level. Fig.9.6 9.7.

  • Page 15: Therapy Table

    MOUSE Edition 9/2023-12 - 05 10.3. Therapy table Maximum load capacity of the table is 3kg – Fig.10.3. - Mounting: slide the table into the mount until it clicks-confirm proper installation. -Dismounting: press the two buttons located at the mount and slide the table out.

  • Page 16: Winter Sleeping Bag

    MOUSE Edition 9/2023-12 - 05 10.8. Winter sleeping bag Requires mounting to another accessory - the safety barrier. Installation: put the sleeping bag from the bottom on the footrest, and from the top put it through the safety barrier and clip it to the frame of the stroller (Fig. 10.8.) 10.9.

  • Page 17: Technical Specifications Of The Stroller

    MOUSE Edition 9/2023-12 - 05 11. Technical specifications of the stroller length of the stroller 95-124 cm the width of the stroller 60 cm the height of the stroller 122 - 134 cm total weight 17.2 - 23.2kg effective seat depth...

  • Page 18: Assembly And Disassembly Of The Stroller

    (if any of the components is missing, contact the vendor). No tools are required for assembly and disassembly of the Mouse stroller except for adjusting the height of the footrest, where a Phillips screwdriver is needed.

  • Page 19: Using The Stroller

    MOUSE Edition 9/2023-12 - 05 o Secure the child with any available stabilizing elements, such as five-point belts, seat minimizing kit, abduction/stabilizing belts, abduction block (wedge), footrest, footrest straps, safety barrier or therapy table. This is to prevent the child from falling and slipping out of the stroller and to prevent the child's feet from falling off the footrest.

  • Page 20: Riding In A Stroller

    MOUSE Edition 9/2023-12 - 05 15.4. Riding in a stroller When using the stroller, always hold the stroller by the push handle to prevent the stroller from rolling inertly. Release the central brake while holding the push handle of the stroller and push the stroller in a safe direction.

  • Page 21: Storage Of The Stroller

    MOUSE Edition 9/2023-12 - 05 Hand wash only Do not bleach Do not tumble dry Dry in position Do not iron 16. Storage of the stroller Clean stroller should be stored in a clean, dry and well-ventilated room, preferably at 0-35 degrees Celsius. For long-term storage, additionally follow the steps described in point.

  • Page 22: Compliance With Requirements For Medical Devices

    Class I medical device in accordance with the Regulation of the European Parliament and of the Council (EU) 2017/745 of April 5, 2017 on medical devices. The manufacturer issued an appropriate declaration of conformity for the product, which is available at www.mywam.eu Page...
  • Page 23 MOUSE Edition 9/2023-12 - 05 20. List of authorized service points POLAND MyWamLLC Wiosny Ludów 91 street, 40-373 Katowice, Poland tel: +48 32 733 11 31 www.mywam.eu adres e-mail: serwis@mywam.pl Page | 23...

  • Page 24: Warranty Card

    MOUSE Edition 9/2023-12 - 05 21. Warranty Card Series and number:......... Purchase date: ......- ......- ......Seller's stamp and signature: ......................................................................................................Warranty conditions • The Seller grants the buyer a warranty on the purchased stroller, for a period of 24 months, starting from the date of purchase.

  • Page 25: Notes

    MOUSE Edition 9/2023-12 - 05 22. Notes Page | 25...
