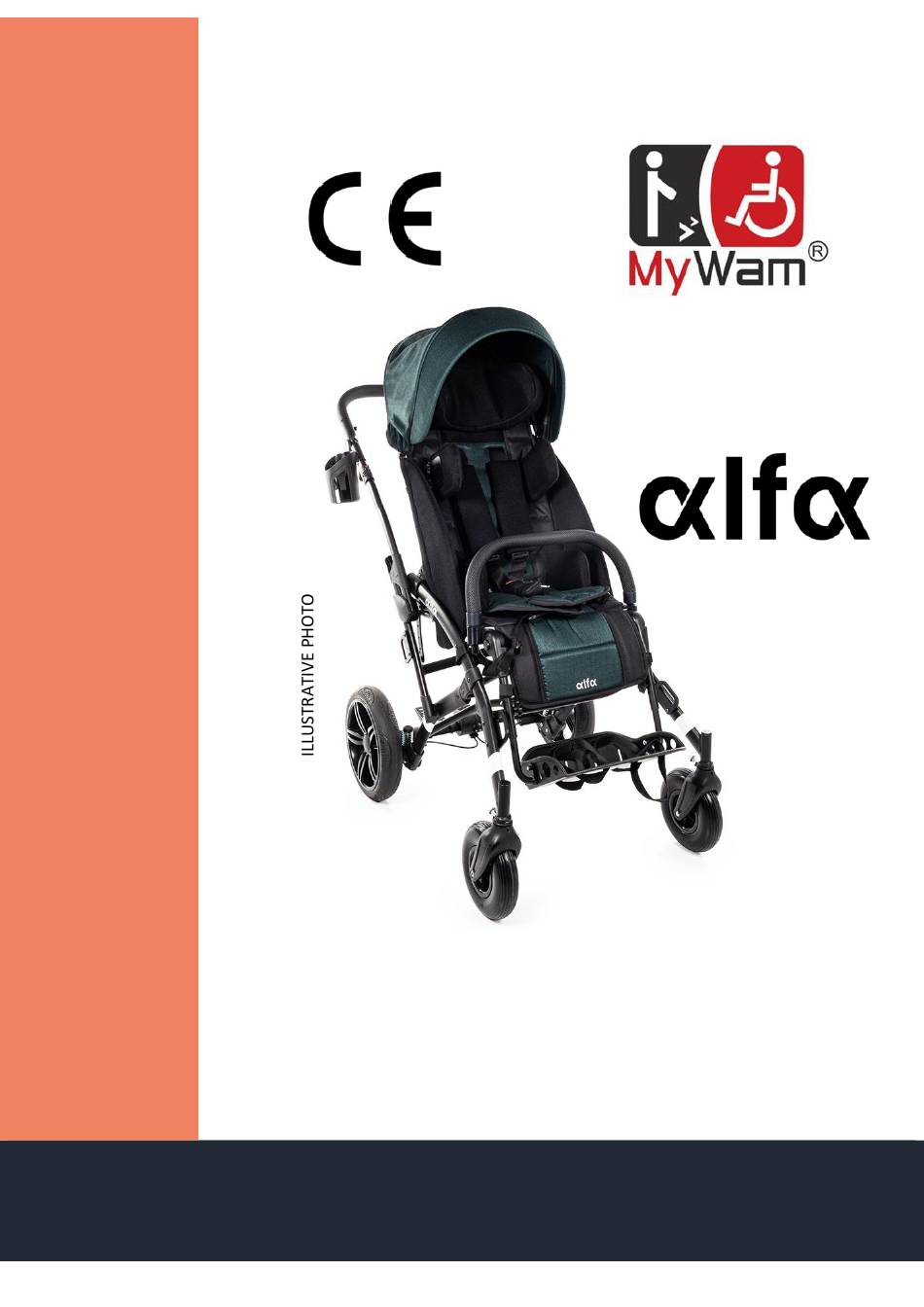

- Page 1 MANUFAKTURER / MARKETING AND ADVERTISING: MyWam Sp. z o.o. OPERATION AND MAINTENANCE MANUAL Edition 2 / 2024-06-03 Special needs stroller ALFA THIS IS MEDICAL DEVICE. USE IT ACCORDING TO THE INSTRUCTION MANUAL OR LABEL.
- Page 2 ATTENTION! Before using the stroller, each User is obliged to read the manual and act in accordance with its guidelines. ATTENTION! In the event of any medical incidents related to the presence of the ALFA stroller, the Manufacturer must be immediately notified in writing by contacting it via registered letter or e-mail with acknowledgment of receipt.
-
Page 3: Table Of Contents
Sleeping bag for legs (worn on the safety barrier) ................. 27 Mosquito net (attached to adjustable canopy with window) ..............28 Sunshade umbrella ..........................28 TECHNICAL SPECIFICATIONS OF THE ALFA STROLLER ................29 Material composition of the stroller ...................... 29 P a g e... - Page 4 Edition 2 / 2024-06-03 DELIVERY AND TOOLS ..........................29 10. ASSEMBLY AND DISASSEMBLY OF THE STROLLER ................. 30 11. PREPARATION FOR USE .......................... 30 12. MOVING THE STROLLER ......................... 31 13. GETTING IN AND OUT OF A STROLLER ....................32 14.
-
Page 5: Purpose And Indications For Use
1. PURPOSE AND INDICATIONS FOR USE The special needs stroller ALFA is a class I medical device indicated for use by disabled children who, due to their health condition, cannot walk, stand or sit down independently. The product is intended for the transport and movement of the above persons in a sitting or lying position and for posture correction and this is its intended use. -
Page 6: Important Instructions And Safety Rules
This may cause the stroller to tip over and injure the user! Does not apply to original additional accessories dedicated to the ALFA stroller that do not exceed the permissible load. All additional elements attached to the stroller affect its stability. -
Page 7: General Construction Of The Stroller
Edition 2 / 2024-06-03 5. GENERAL CONSTRUCTION OF THE STROLLER Basic equipment 1- Canopy with window 2- Locking the frame folding mechanism 17- Backrest side elements 3- Cup holder 18- Backrest height adjustment 4- Safety barrier 19- Transport lock 5- Angle adjustment mechanism of the whole 20- Push handle for the stroller footrest 21- Angle adjustment mechanism for the push... - Page 8 Edition 2 / 2024-06-03 Accessory equipment 1- Sunshade umbrella 2- Shopping basket 6- Wedge 3- Sleeping bag for legs 7- Therapeutic table 4- Rain cover 8- Winter gloves 5- Mosquito net 9- Backpack P a g e...
-
Page 9: Stroller Functions
Edition 2 / 2024-06-03 6. STROLLER FUNCTIONS Unfolding the stroller Pull down the transport lock backrest assembly mechanism is located at the back of the seat. Slide in the backrest Unlocked mechanism set at the height of the holes on both sides Slide the pins into the holes on both sides Lock the backrest attachment mechanism P a g e... -
Page 10: Folding The Frame Of The Stroller
Edition 2 / 2024-06-03 Pull the handle up and adjust the backrest angle Folding the frame of the stroller Unlock the backrest attachment mechanism Lower the mechanism down Remove the backrest 10 | P a g e... -
Page 11: Transport Lock. Putting On And Taking Off The Transport Lock
Edition 2 / 2024-06-03 Press the red button Simultaneously pull the handles on both sides of the frame upwards Attach the transport lock Transport lock. Putting on and taking off the transport lock Lock applied Removed lock 11 | P a g e... -
Page 12: Front Swivel Wheels. Front Wheels Directional Lock
Edition 2 / 2024-06-03 Front swivel wheels. Front wheels directional lock Locking the front wheels Unlocking the front wheels Rear wheels. Assembly and removal of rear wheels on the axle Wheel assembly 12 | P a g e... -
Page 13: Rear Wheel Amortization System
Edition 2 / 2024-06-03 Removal of wheels Rear wheel amortization system Hard suspension Soft suspension Push handle for the stroller Angle adjustment mechanism for the push handle Press the buttons on both sides and change the angle of the push handle. 13 | P a g e... -
Page 14: Central Brake
Edition 2 / 2024-06-03 Angle adjustment of the push handle Central brake The central brake is used only for total wheel locking – there in no dynamic braking function. Tilt foot Using a tilt foot makes it easier to drive the stroller up small thresholds or curbs. -
Page 15: Mechanism For Attaching The Backrest To The Frame Of The Stroller
Edition 2 / 2024-06-03 Mechanism for attaching the backrest to the frame of the stroller Assembly the backrest to the frame The backrest assembly mechanism is located at the back of the seat. Slide in the backrest Unlocked mechanism set at the height of the holes on Slide the pins into the holes on both sides both sides Lock the backrest attachment mechanism... -
Page 16: Seat Depth Adjustment
Edition 2 / 2024-06-03 Removing the backrest from the frame Unlock the backrest attachment mechanism Lower the mechanism down Remove the backrest Seat depth adjustment Pull the seat toward you or slide it in. Minimum seat depth Maximum seat depth 16 | P a g e... -
Page 17: Frame Adjustment For Changing Seat Angle
Edition 2 / 2024-06-03 ATTENTION! To adjust the seat depth, use an Allen key (included). Frame adjustment for changing seat angle Seat angle adjustment mechanism Make sure the pins have snapped on both sides stroller. Seat angle adjustment 17 | P a g e... -
Page 18: Backrest Height Adjustment
Edition 2 / 2024-06-03 Backrest height adjustment Make sure the pins have snapped both sides of the stroller. Minimum setting heights Maximum setting heights Button to adjust heights of the backrest of the backrest of the backrest ATTENTION! adjust height of the backrest, use an Allen key (included). -
Page 19: Footrest
Edition 2 / 2024-06-03 Backrest angle adjustment Press the buttons on both sides change the angle of the footrest. Footrest Footrest height adjustment Minimum height Maximum height Footrest angle adjustment 19 | P a g e... -
Page 20: Five-Point Belts
Edition 2 / 2024-06-03 Attention! When transporting, storing, rehabilitation, getting in and out of the stroller, the footrest plate must be folded. Five-point belts Attention! When removing the backrest, detach the belts at the marked place. Remember to fasten the belts when assembling backrest. -
Page 21: Headrest
Edition 2 / 2024-06-03 Pull the straps through holes thread through the buckle on the belt. Bolt for assembling seat belts when the Wedge id not assembled. The place where belts are assembling to the seat (where the wedge is assembled) Headrest 21 | P a g e... -
Page 22: Adjustable Thoracolumbar Pads Support
Edition 2 / 2024-06-03 Adjustable thoracolumbar pads support Pads length adjustment Backrest width adjustment Pads height adjustment Adjustable hip pads Pads height adjustment 22 | P a g e... -
Page 23: Backrest Side Elements
Edition 2 / 2024-06-03 Seat width adjustment Seat depth adjustment Backrest side elements Abduction and stabilization belts Fastening the belts to the seat 23 | P a g e... -
Page 24: Safety Barrier
Edition 2 / 2024-06-03 Fastening the belts to the frame Safety barrier Press the buton on both sides and slide the safety barrier in or out. Adjustable canopy with window Mechanism for assembling the canopy to the frame of the stroller Slide the mount on the canopy into the mount on the frame of the... -
Page 25: Cup Holder
Edition 2 / 2024-06-03 Changing the size of the canopy area Cup holder 7. ADDITIONAL EQUIPMENT Adjustable therapy table (put in place of safety barrier) The maximum load is 3kg. 25 | P a g e... -
Page 26: Backpack
Edition 2 / 2024-06-03 Backpack The maximum load of the backpack is 2kg. Shopping basket The maximum load of the shopping basket is 3kg. Winter gloves 26 | P a g e... -
Page 27: Wedge
Edition 2 / 2024-06-03 Wedge Rain cover (put on adjustable canopy with window) Sleeping bag for legs (worn on the safety barrier) 27 | P a g e... -
Page 28: Mosquito Net (Attached To Adjustable Canopy With Window)
Edition 2 / 2024-06-03 Mosquito net (attached to adjustable canopy with window) Sunshade umbrella 28 | P a g e... -
Page 29: Technical Specifications Of The Alfa Stroller
Edition 2 / 2024-06-03 8. TECHNICAL SPECIFICATIONS OF THE ALFA STROLLER length of the stroller 100-145 cm width of the stroller 66 cm height of the stroller 107-128 cm total weight 26 kg effective seat depth 30-40 cm seat width... -
Page 30: Assembly And Disassembly Of The Stroller
On the basis of the specification check the package content (in case of any missing elements contact your Seller). No tools are required to assemble and disassemble the ALFA stroller. To adjust the backrest height and seat depth, use the 4mm Allen key included in the package. -
Page 31: Moving The Stroller
Edition 2 / 2024-06-03 o Before using the stroller, ensure that the child is not placed in the stroller without clothing to cover the body in areas of contact with the upholstery of the stroller. This is to prevent abrasions to the child's body and for hygienic reasons. -
Page 32: Getting In And Out Of A Stroller
Edition 2 / 2024-06-03 13. GETTING IN AND OUT OF A STROLLER When getting in and out of the stroller, place the stroller as close as possible to a stable and safe place to which the user will be changing their position. Once you are sure that the central brake is active and the footplate is lifted up to avoid standing on it, the user can change their position. -
Page 33: Moving On Inclined Surfaces
The ALFA stroller should not be used as a seat to transport a child in a vehicle. 19. CLEANING AND CARE Upholstery is machine washable at up to 40°C. -
Page 34: Storage Of The Stroller
Edition 2 / 2024-06-03 When using detergents dedicated to this type of material - follow the instructions of the detergent use. Wash at 40° Do not bleach Do not tumble dryer Do not iron 20. STORAGE OF THE STROLLER Clean stroller should be stored in a clean, dry and well-ventilated room, preferably at 0-35°C. For long-term storage, additionally follow the steps described in point 23 “every one month”. -
Page 35: Utilization
Class I medical device in accordance with the Regulation of the European Parliament and of the Council (EU) 2017/745 of April 5, 2017 on medical devices. The manufacturer issued an appropriate declaration of conformity for the product, which is available at www.mywam.eu 35 | P a g e... -
Page 36: List Of Authorized Service Points
Edition 2 / 2024-06-03 24. LIST OF AUTHORIZED SERVICE POINTS POLAND MyWam sp. z o.o. ul. Wiosny Ludów 91, 40-373 Katowice, Poland tel: +48 32 733 11 31 website: www.mywam.eu e-mail: mywam@mywam.eu 36 | P a g e... -
Page 37: Warranty Card
Edition 2 / 2024-06-03 25. WARRANTY CARD Series and number: ......... Purchase date: ......- ......- ......Seller stamp and signature: ......................................................................................................Warranty conditions • The seller grants the buyer a warranty for the purchased cart, dor a period of 24 months, starting from the date of purchase. -
Page 38: Notes
Edition 2 / 2024-06-03 26. NOTES 38 | P a g e...
