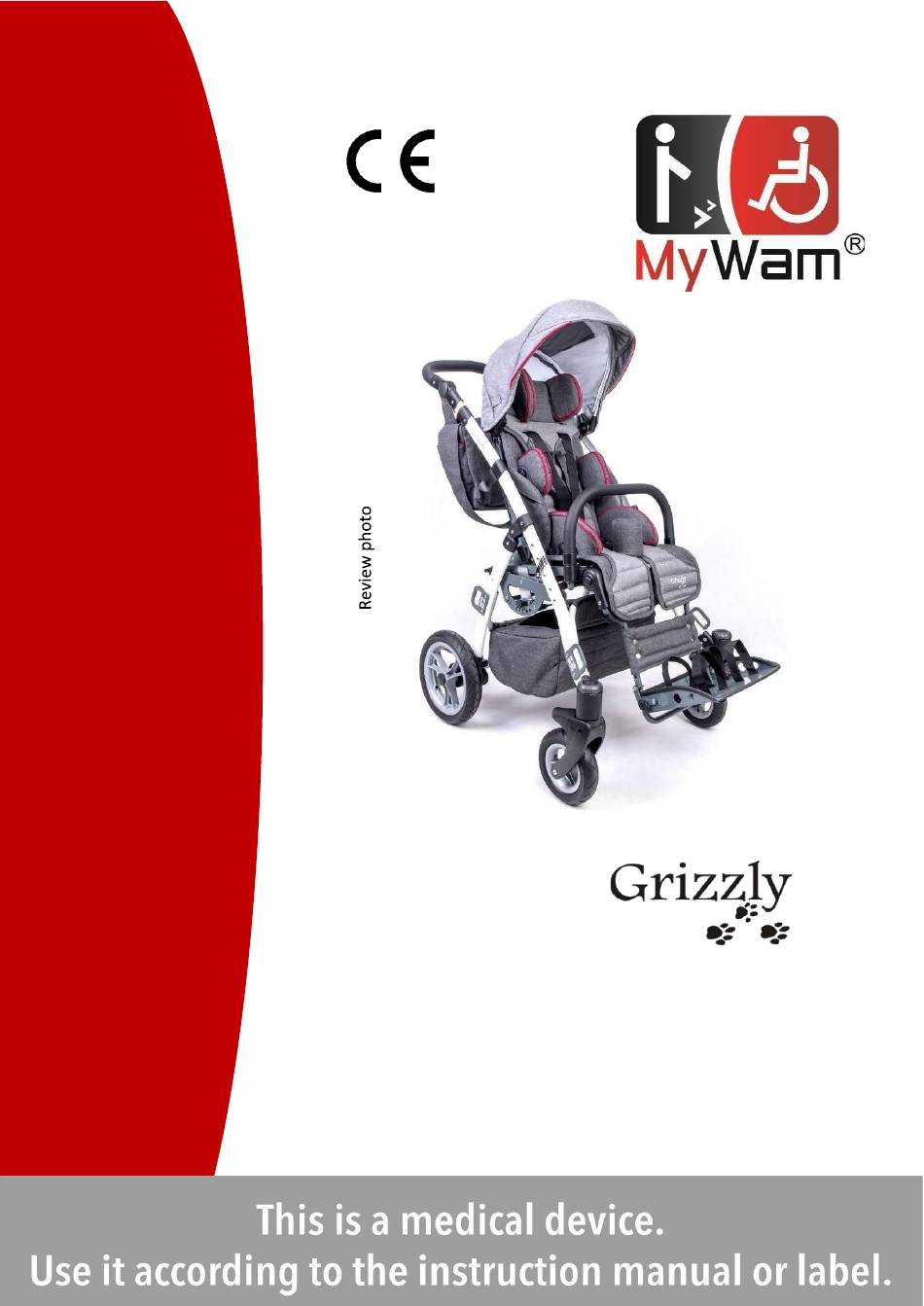

Operation and Maintenance
Manual
Edition 15 / 2023-12-05
The specialist stroller Grizzly
1 |
S t r o n g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grizzly and is the answer not in the manual?

Questions and answers

Related Manuals for MyWam Grizzly

Summary of Contents for MyWam Grizzly

  • Page 1 PRODUCER / ADVERTISER: MyWam LLC Operation and Maintenance Manual Edition 15 / 2023-12-05 The specialist stroller Grizzly S t r o n g...

  • Page 2: Purpose Of The Manual

    ATTENTION: Before using the stroller, each User is required to r e a d and follow the contents of this manual. NOTE: In the event of any medical incident related to the Grizzly stroller, notify the Manufacturer immediately, in writing, by contacting via registered letter or e-mail with acknowledgement of receipt.

  • Page 3: Table Of Contents

    GRIZZLY Edition 15 / 2023-12-05 Table of contents Purpose of the Manual ................................. 2 Purpose and indications for use of Grizzly stroller ....................... 5 Quick start ..................................5 Important safety tips and rules ............................ 6 Plates ..................................... 6 Symbol designation ............................... 7 6.
  • Page 4 7.38 Sleeping bag for legs (accessory; worn on the safety barrier) ..................23 7.39 Mosquito net (accessory) ............................23 7.40 Sun umbrella (accessory) ............................23 7.41 Exclusive decorative set - Grizzly bear (accessory) ..................... 24 9.Technical specifications of the Grizzly stroller ......................... 24 9.1 Material composition of the stroller ..........................24 10.

  • Page 5: Purpose And Indications For Use Of Grizzly Stroller

    Purpose and indications for use of Grizzly stroller The Grizzly special stroller is a Class I medical device indicated for use by those children with disabilities who, due to their condition, cannot independently walk stand or sit down. The product is designed to transport and move the above persons in a sitting or lying position and for postural correction.

  • Page 6: Important Safety Tips And Rules

    It is forbidden to place additional weight on the stroller, which especially applies to placing additional weight on the back of the backrest, such as a backpack or bag. This may cause the Grizzly stroller to tip over and injure the user! Does not apply to original add-on accessories dedicated to the Grizzly stroller not exceeding the allowable load.

  • Page 7: Symbol Designation

    GRIZZLY Edition 15 / 2023-12-05 Symbol designation Product serial number Manufacturer name Permissible total weight user The product in question is a medical device DESCRIPTION "WARNING!" and the symbol in this Production date manual are used to reinforce the reader's attention to the content marked with this sign.

  • Page 8: Detailed Construction Of The Stroller

    (point 7.39) Fig. 6.3 Sun umbrella (point 7.40) Exclusive decorative set - Grizzly Bear (point 7.41) Detailed construction of the stroller 7.1 Frame folding mechanism a) frame folding lock - the handle responsible for locking and unlocking the folding capability of the frame, which has a red locking button on the right side of the frame (Fig.

  • Page 9: Transport Lock. Putting On And Taking Off The Transport Lock

    GRIZZLY Edition 15 / 2023-12-05 7.4 Transport lock. Putting on and taking off the transport lock The transport lock consists of two parts (Fig. 7.4.1): an eyelet and a bolt. ▪ Putting on the lock: fold the frame (section 7.3 Folding the frame of the stroller), put the lock eyelet on the lock pin so that the two overlap tightly (Fig.

  • Page 10: Rear Wheel Suspension System

    GRIZZLY Edition 15 / 2023-12-05 • Rear wheel quick-mounting mechanism on the frame: press the quick mounting button downwards, towards the ground (Fig. 7.6.3). The wheel in this mechanism is mounted from the side, from the outside, through a horizontal hole.

  • Page 11: Frame Attachments For Fixing The Seat

    GRIZZLY Edition 15 / 2023-12-05 7.11 Frame attachments for fixing the seat These are two colored, chrome-plated, transverse attachments that are located on the stroller frame, in its center section (Fig. 7.11). They are used to connect the therapy seat with backrest to the stroller frame.

  • Page 12: Adjustable Therapeutic Seat

    GRIZZLY Edition 15 / 2023-12-05 d) Place both Rear seat mounts on the first frame hitch (Fig. 7.13.4) e) Place both FRONT seat mounts on the second frame clip (Fig. 7.13.5) f) Push the two FRONT fasteners of the seat to the other hitch until two clicks (Fig.

  • Page 13: Seat Depth Adjustment

    GRIZZLY Edition 15 / 2023-12-05 7.15 Seat depth adjustment • Adjustment: partially unscrew (loosen) the two knobs that are located on the seat from below (Fig. 7.15.1), extend the seat to the desired position (Fig. 7.15.2). When the adjustment is complete, tighten both knobs back until you feel resistance (Fig.

  • Page 14: Angle Adjustment Mechanism Of The Seat, So Called Tilt

    GRIZZLY Edition 15 / 2023-12-05 7.17 Angle adjustment mechanism of the seat (tilt) . The tilt mechanism is located on the frame of the stroller (Fig. 7.17). It consists of: • actuation handle (No. 8), • Right lock (pin mechanism under the handle) (No. 6), •...

  • Page 15: Adjustable Backrest

    GRIZZLY Edition 15 / 2023-12-05 • Angle adjustment of the seat without the seat installed: a) engage the central brake, b) Pull back the actuating handle in the tilt mechanism, in the direction away from the stroller, At the same time hold the hooks of the frame for attaching the seat, slowly change the angle of their tilt, tilting these hooks to the 0°...

  • Page 16: Backrest Angle Adjustment Mechanism

    GRIZZLY Edition 15 / 2023-12-05 7.21 Backrest angle adjustment mechanism The mechanism consists of (Fig. 7.21): a) actuation handle (No.3), b) Right and left locks connected by a metal cable (No. 1 and 4), c) The right and left seat crests (No. 2 and 5).

  • Page 17: Five-Point Belts

    GRIZZLY Edition 15 / 2023-12-05 7.23 Five-point belts The straps were factory-installed to the stroller and should not be removed, as they are used to carry the child safely, prevent the child from slipping, and are also helpful for additional stabilization of the child's pelvis and torso.

  • Page 18: Adjustable Headrest Supports In Three Planes (Accessory)

    By default, the footrest plate is in the horizontal position. However, when transporting, storing, rehabilitating, getting in and out of the Grizzly stroller, the footrest plate must be folded and rotated towards the footrest frame (Fig. 7.24.3).

  • Page 19: Chest And Lumbar Support With Adjustment In Three Planes (Optional Equipment)

    GRIZZLY Edition 15 / 2023-12-05 7.26 Chest and lumbar support with adjustment in three planes (optional equipment) The seat can be equipped with thoracolumbar pads, which, in the case of certain indications, further stabilize the child's torso. Adjustment of the free space within the trunk is carried out by moving the thoracolumbar pads in three planes: a) to the right and left and diagonally along the plane of the back rest (Fig.

  • Page 20: Backrest Side Elements (Accessory)

    GRIZZLY Edition 15 / 2023-12-05 For certain indications, hip pelvises further stabilize the child's pelvis. Adjustment of the free space within the pelvis is carried out by moving the hip pelvises in three planes: to the right and left, as well as diagonally, along the plane of the seat (Fig. 7.27.1), forward and backward, as well as diagonally, along the plane of the seat (Fig.

  • Page 21: Safety Barrier (Accessory; Put In Place Of Therapy Table)

    GRIZZLY Edition 15 / 2023-12-05 Fig. 7.29.6 Fig. 7.29.7 Fig.7.29.8 Fig. 7.29.9 • Adjusting the length of the abduction and stabilization belts: move the adjusters on the front belt straps up or down (Fig. 7.29.7). • Putting on: seat the child on the installed straps, wrap around the child's leg and fasten both belt buckles to both front straps.

  • Page 22: Therapy Table (Accessory; Worn In Place Of Safety Barrier)

    GRIZZLY Edition 15 / 2023-12-05 • Change the size of the canopy area: grab the front arch and the back arch of the canopy frame and by bringing the two arches closer or farther apart or towards each other, set the desired position (Fig. 7.31.3). The mechanism will latch automatically. In addition, the canopy can be tilted or retracted (Fig.

  • Page 23: Rain Cover (Accessory; Attaches To Adjustable Canopy With Window)

    GRIZZLY Edition 15 / 2023-12-05 7.36 Rain cover (accessory; attaches to adjustable canopy with window) Requires mounting to another accessory - a canopy. • Installation: apply the rain cover from above to the canopy (Fig. 7.36.1) and cover the seat of the stroller and the footrest with the film (Fig.

  • Page 24: Exclusive Decorative Set - Grizzly Bear (Accessory)

    GRIZZLY Edition 15 / 2023-12-05 7.41 Exclusive decorative set - Grizzly bear (accessory) The set is mounted on other accessories The decorative set includes fabric covers (Fig. 7.41): a) An additional set of winter gloves worn on the push handle of the stroller,...

  • Page 25: Delivery And Tools

    (if any of the components are missing, contact the Seller). No tools are required to assemble and disassemble the Grizzly stroller. To adjust the height of the footrest, the following tool is needed: a Phillips screwdriver.

  • Page 26: Preparation For Use

    GRIZZLY Edition 15 / 2023-12-05 a) Remove the accessory equipment, b) Remove the seat with backrest from the frame of the stroller (detailed description in section 7.13 Seat assembly and disassembly), c) Remove the front wheels and rear wheels from the frame of the stroller (detailed description in section 7.5 Front swivel wheels.

  • Page 27: Transport Of The Stroller

    GRIZZLY Edition 15 / 2023-12-05 Transport of the stroller The best way to move the stroller is to drive it using its wheels. In cases where this is not possible (for example, to transport the stroller in a car), then, for safety reasons, the stroller can be lifted and carried with both hands after removing the accessories to reduce the weight to be carried and folding it.

  • Page 28: Overcoming Thresholds Or Curbs

    PN ISO 7176-19:2007 standard. Both the four-point belt fastening system and the chest and lap belts are not equipment of the Grizzly stroller or added to it by the Manufacturer, but are equipment of the adapted motor vehicle.
  • Page 29 Seat the child in the stroller and secure it with the five-point belt that the Grizzly stroller is equipped with. o In order to secure the child in case of an incident, it is necessary to fasten the child with a chest and lap belt, which is an equipment of a motor vehicle.
  • Page 30 Fig. 20.4 Required range of hip belt angles An example of the correct routing of the tie-down straps through the attachment points of the Grizzly stroller safety device is indicated in Fig. 20.5 and Fig. 20.6. Fig. 20.5 Fig.

  • Page 31: Cleaning And Care

    Edition 15 / 2023-12-05 An example of proper routing of the chest and lap belts on the Grizzly stroller is indicated in Fig. 20.9. The hip restraint should make full contact through the front of the body, close to the hip joints, as shown in Fig. 20.10.

  • Page 32: Storage Of Stroller

    GRIZZLY Edition 15 / 2023-12-05 Hand wash only Do not bleach Do not dry in tumble dryer Dry in position horizontal Do not iron 22. Storage of stroller Clean stroller should be stored in a c l e a n , dry and well-ventilated room, preferably at 0-35 C.

  • Page 33: List Of Authorized Service Points

    GRIZZLY Edition 15 / 2023-12-05 26. List of authorized service points POLAND MyWam LLC ul. Wiosny Ludów 91, 40-373 Katowice, Poland tel: +48 32 733 11 31 website: www.mywam.eu email adress: serwis@mywam.eu 33 | Page...

  • Page 34: Warranty Card

    GRIZZLY Edition 15 / 2023-12-05 Warranty Card Series and number:......... Purchase date: ......- ......- ......Seller's stamp and signature: ......................................................................................................Warranty terms and conditions • The seller grants the buyer a warranty for the purchased stroller, for a period of 24 months, starting from the date of purchase.

  • Page 35: Notes

    GRIZZLY Edition 15 / 2023-12-05 Notes 35 | Page...
