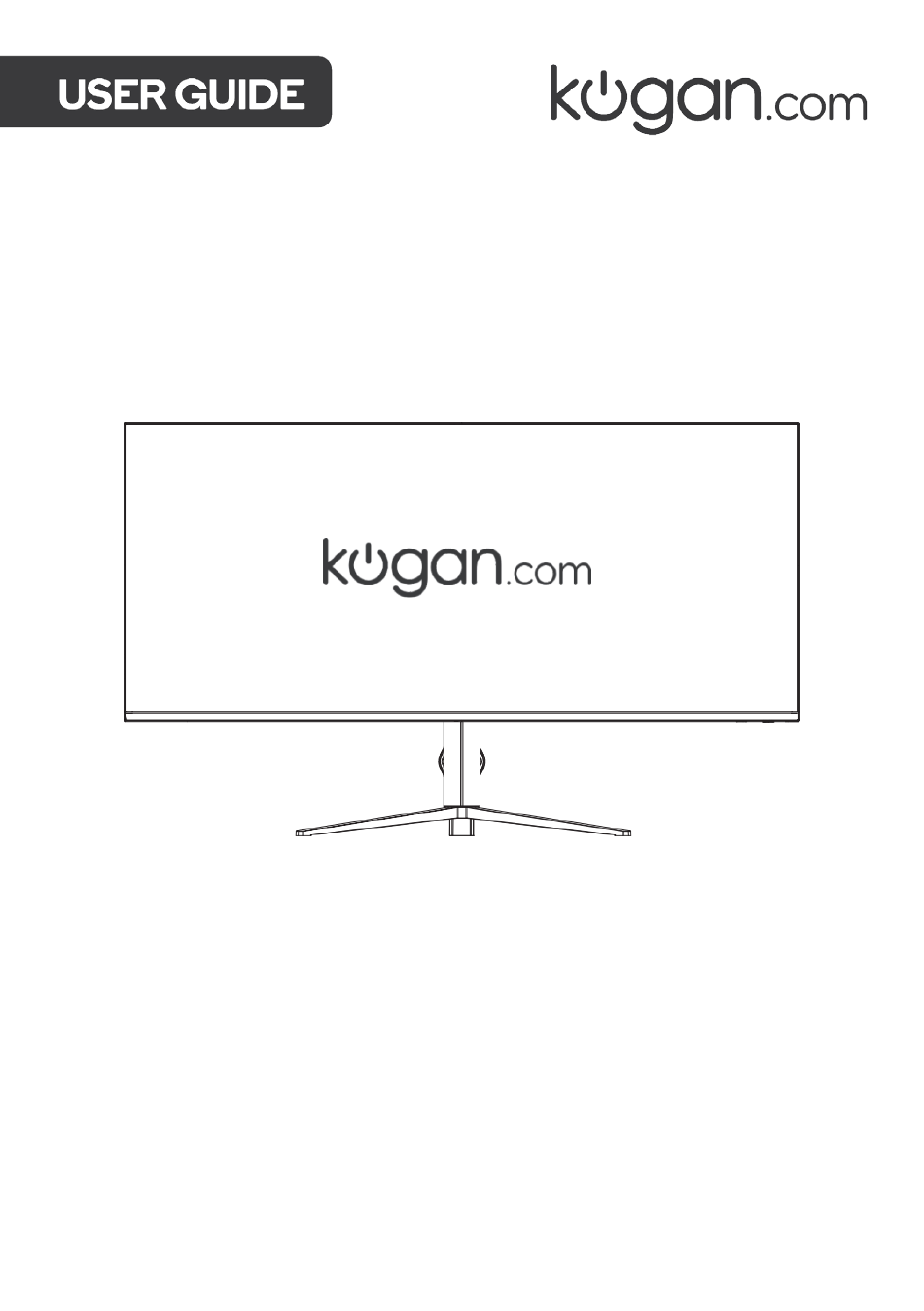

- Page 1 40" CURVED ULTRAWIDE WUHD 5K USB-C FREESYNC MONITOR 5120 X 2160 KAMN40DQUCWA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions before use and retain this user guide for future reference. • Unplug the monitor before cleaning it with a slightly damp, clean cloth. • Wiping the screen with a dry microfibre cloth once the monitor has been turned on is recommended. - Page 4 COMPONENTS Monitor M6 x 24mm Stand Stem Stand Base Power Cord Screws (x2) Decorative VESA Power Adapter DP1.4 Cable User Guide Cover (x2)
- Page 5 OVERVIEW HDMI USB-A Audio Out USB-C DC (Power Input) USB-B USB-A USB-A USB-A • For best results, an HDMI 2.1 cable is recommended when connecting to the monitor. • When connecting devices to the monitor, it is recommended to connect the USB-B first.
- Page 6 Users Controls Press the ‘Power’ button to turn the monitor on/off. Note: To access the monitor settings, ensure you first have a source connected to one of the monitor ports. Control Description Blue - Power on. Indicator Red - Standby. Press LEFT Return to the previous menu level or exit the OSD menu.
- Page 7 ASSEMBLY Stand Assembly Place a cloth on a flat table. Gently lay the monitor on the Ensure there are no hard objects, cloth with the screen facing such as screws, on the table. down. Secure the stand stem to the Slot the assembled stand into the stand base using the provided monitor.
- Page 8 Adjust The Angle The angle of the screen can be adjusted forward 5°or backward 15° to create the ideal viewing experience. Notes: • Do not touch or press the screen when adjusting the angle of the monitor. • The images below are for illustrative purposes only. The actual monitor may differ slightly.
- Page 9 Place a clean, dry and lint-free cloth on a flat, stable surface. Gently lay the monitor on the cloth with the screen facing down. Identify the four wall mounting screw holes on the back of the monitor. Install the wall mounting bracket (not provided) on the back of the monitor and attach the monitor to the wall according to the mounting bracket's instructions.
-
Page 10: Operation
OPERATION Insert one end of the provided DP 1.4 cable into your computer's graphics card. Insert the other end of the cable into the DP port on your monitor. Connect the power adapter to the monitor and then connect the other end of the power adapter to the power cord. - Page 11 Using the OSD Menu To view the OSD menu, press the ‘Power’ button right. Configure the options by moving the ‘Power’ button up, down, left and right. To return to the previous menu, move the ‘Power’ button left. To exit the OSD menu, move the ‘Power’ button left until you exit.
-
Page 12: Specifications
SPECIFICATIONS Panel Panel type Curvature R2500 (TYPE) Aspect ratio 21:09 Size (inch) 40" Resolution 5120 x 2160 Refresh rate 75Hz Brightness (typ.) 300cd/M (max) Contrast ratio static TYP 1000:1 Colour support 1.07B (8-BIT + HI-FRC) Viewing angle (HIV) 178/178 (HIV) Response time (GTG) 14 (typ.) (G to G) (ms) Input/Output... - Page 13 Physical Specifications Monitor colour Black Dimension Packaging dimension: 1130 × 165 × 530mm (±5mm) Net weight: 9.4 kg (±0.5 kg) Weight Gross weight: 12.8 kg (±0.5 kg) Wall mount size 100 x 100mm Tilt: -5°-15° Up & down: yes Stand Swivel: yes Pivot: yes •...
- Page 14 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
