Summary of Contents for Kogan KAMN27F10SA

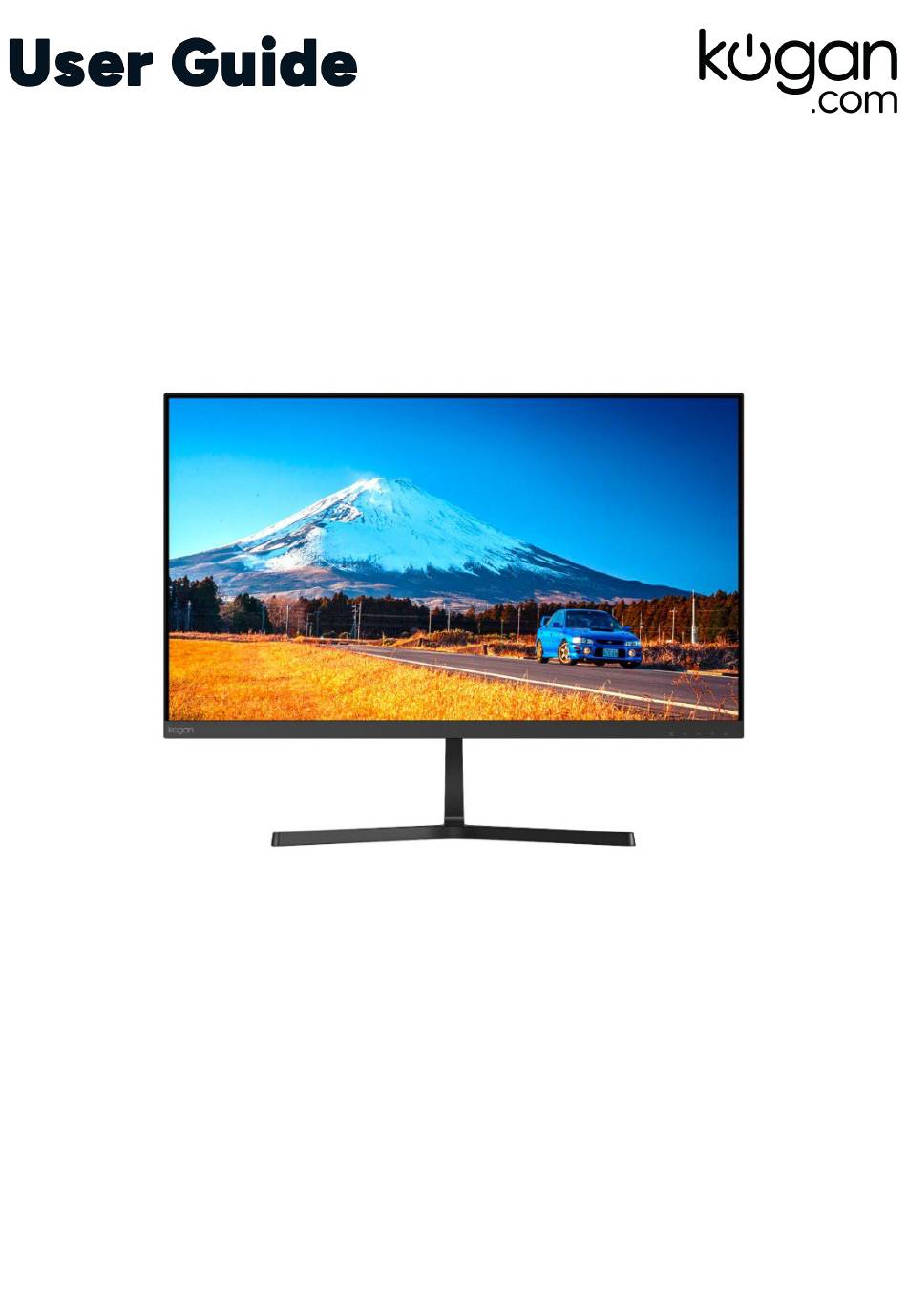

- Page 1 27" Full HD 100Hz Frameless Free Sync Monitor (1920 x 1080) KAMN27F10SA...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Assembly Operation Cleaning & Care Specifications... -
Page 3: Safety & Warnings
Safety & Warnings • Read all instructions carefully before use and retain this user guide for future reference. • Unplug the monitor before cleaning it. • This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. -
Page 4: Components
Components Monitor Stand Stand Base M4x10mm Stand M4x10mm VESA Connector Base Screw Screws (x4) HDMI Cable Power Adaptor and User Guide Cord... -
Page 5: Overview
Overview Monitor Controls Menu Press to display the OSD menu or enter sub-menus. Down Press to move down in the menu. Press to move up in the menu. Exit Press to exit the menu. Power Press to turn the monitor on/off. -
Page 6: Monitor Ports
Monitor Ports HDMI Connector VGA Connector 3.5mm Audio Port Power Port (DC 12V) -
Page 7: Assembly
Assembly WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand. Carefully remove the monitor, stand connector and stand base from the box. Attach the stand base to the stand connector using the provided M4x10mm stand base screw. - Page 8 Insert the stand assembly into the rear of the monitor and push down until firmly connected. Lift the monitor up straight and remove the bottom foam. Stand the monitor up on the installed base.
-
Page 9: Vesa Mount
VESA Mount WARNING: If you are not confident in wall mounting this product, consult a licensed trade professional. • VESA mounting pattern: 75x75mm, M4 screws. • Note: VESA mount and mounting accessories are not provided. Open the box, take out the monitor with protective foam attached and gently place it on a desktop or table. - Page 10 Assemble the mount according to the instructions provided with the mount. Notes: • Ensure to use a mount, bracket and screws that conform to VESA standards. Ensure that the plate fits appropriately. • For more information, refer to the user guide for the VESA mount.
-
Page 11: Operation
Operation Powering the Monitor Connect the power cord to the monitor's power port, then connect the adaptor to an electrical outlet. Turn the outlet on. Connect the monitor to your computer using the provided HDMI cable or a VGA cable (not provided). -
Page 12: Hdmi Connection
HDMI Connection • For the monitor to receive HDMI signals from the computer, connect one end of the provided HDMI cable to the monitor and the other end to your computer’s HDMI port. • You can also connect the monitor to a compatible DVD/Blu-ray player or gaming console using a HDMI cable. -
Page 13: On-Screen Display (Osd)
Free Sync • To use this feature, ensure your hardware has Free Sync capability and the graphics drivers are fully up to date. • After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in your graphics card menu. - Page 14 OSD Menu Settings Main Menu Sub-Menu Options Description Picture ~0-100 Adjust display brightness. Contrast ~0-100 Adjust display contrast. Blacklight ~0-100 Adjust display blacklight. Enable/disable blue light Low blue reduction. Brightness STANDARD/ TEXT/GAME/MOVIE/ Preset colour modes. FPS/RTS Enable/disable dynamic contrast ratio. Horizontal Adjust video display area ~0-100...
- Page 15 ,한국어, Русскии ̆ , English, 简体中 文 Español, Deutsch, Language Set OSD language. Italiano, Français, Portugues, Turkce, Polski, Nederlands OSDH- Adjust OSD horizontal ~0-100 Position position. Setting OSD V- Adjust OSD vertical ~0-100 Position position. Set OSD overall ~0-100 Transparency transparency.
- Page 16 Game Plus Switching Press the ‘Exit’ button to switch Game Plus modes. These overlay icons are primarily designed to assist with aiming during FPS games but can also be used in other scenarios. Game Plus Crosshair Time count...
-
Page 17: Cleaning & Care
Cleaning & Care • Use a clean, slightly dampened cloth to wipe the monitor body. • To clean the screen, turn the monitor off, unplug it and wait for it to cool completely. Then, wipe it with a dry micro-fibre cloth. •... -
Page 18: Specifications
Specifications Screen size 27” Curvature Flat Aspect ratio 16:9 Brightness 300cd/m (typical) Panel Resolution 1920x1080 Refresh rate 100Hz Response time Viewing angle ≥178°(H) / 178°(V) Contrast ratio 4000:1 VESA mounting 75 x 75mm Tilt -5°~15° Colours 16.7M Signal input HDMI 1.4 x 1, VGA x 1 Power DC12V=3.0A Power supply... - Page 19 Accessories Power adaptor HDMI cable Additional functions Low blue light Flicker free Physical dimensions Dimensions (with stand) 614 x 459 x 183mm Dimensions (without stand) 614 x 363 x 53mm Net weight 3.84kg Gross weight 5.29kg...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
