This user guide describes the TLINX441X evaluation module (EVM). This EVM helps designers evaluate
device performance, support fast development, and analyze automotive local interconnect network (LIN)
systems using TLINX441X LIN physical layer transceiver devices.
SLLU304 – August 2018
Submit Documentation Feedback
TLINX441X EVM User's Guide

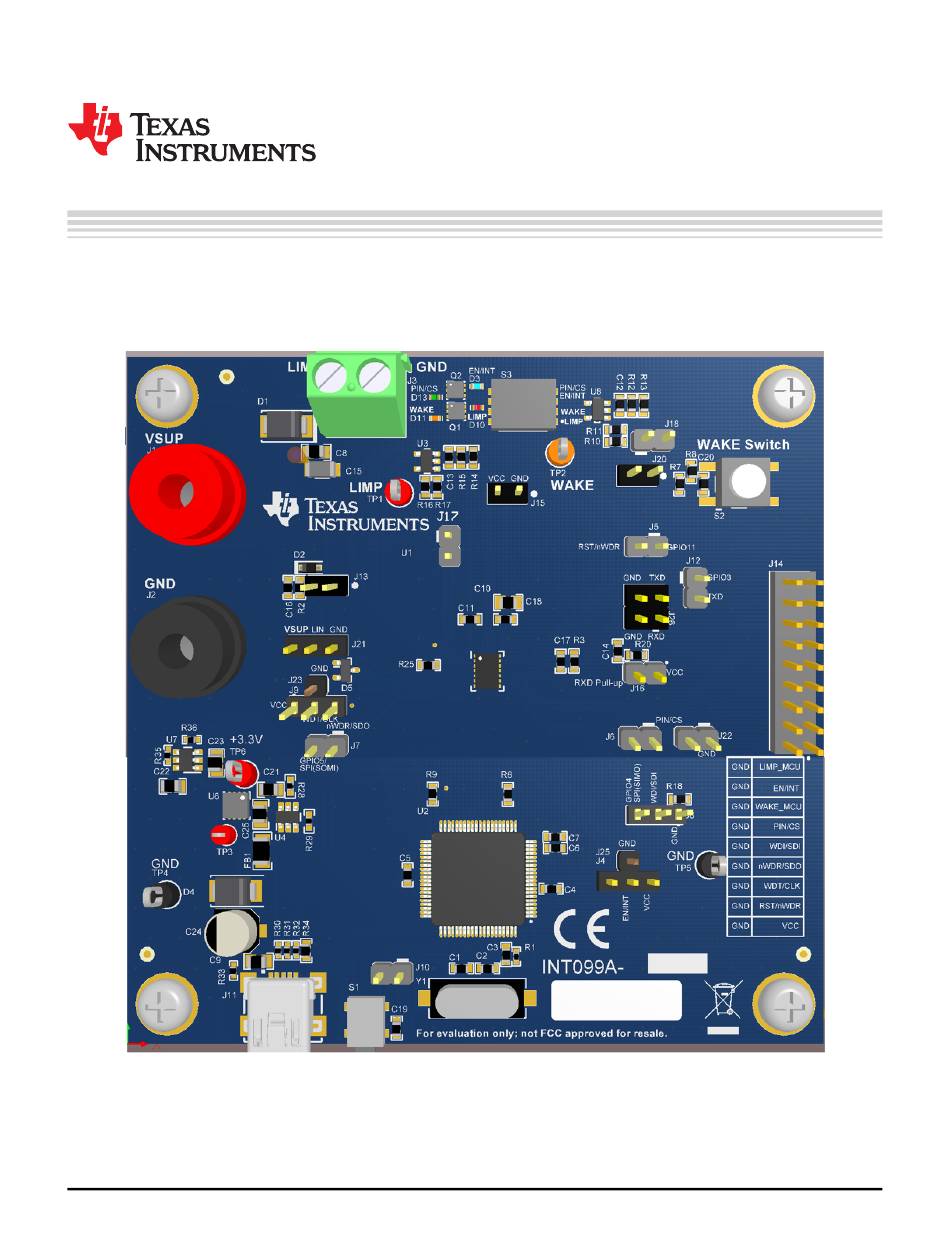

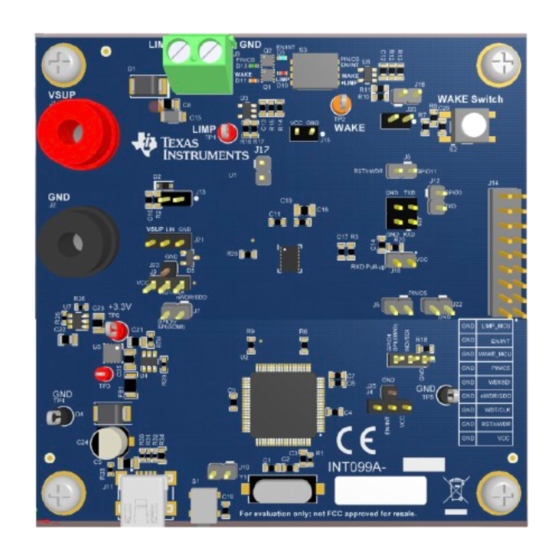

Figure 1. TLIN14415EVM Board Image
Copyright © 2018, Texas Instruments Incorporated
User's Guide
SLLU304 – August 2018
TLINX441X EVM User's Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLINX441X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TLINX441X

Summary of Contents for Texas Instruments TLINX441X

  • Page 1: Tlin14415Evm Board Image

    SLLU304 – August 2018 TLINX441X EVM User's Guide This user guide describes the TLINX441X evaluation module (EVM). This EVM helps designers evaluate device performance, support fast development, and analyze automotive local interconnect network (LIN) systems using TLINX441X LIN physical layer transceiver devices.

  • Page 2: Table Of Contents

    Jumpers, Headers, and Connectors ........................Test Points ........................Switches ....................... Bill of Materials Trademarks All trademarks are the property of their respective owners. TLINX441X EVM User's Guide SLLU304 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 3: Introduction

    The EVM has access to the integrated, low-voltage VCC rail that provides the pull-up for RXD, and the logic level for the enable (EN) control input pins through the use of a jumper. The TLINX441X supports a VIH from 2 V to 5.5 V, allowing operation with a variety of microcontrollers with common IO voltage levels such as 2.5 V, 3.3 V, and 5 V.

  • Page 4: Onboard Microprocessor And Gui

    Local Wake-up The TLINx441x family of LIN SBCs features a local wake-up function on the WAKE pin. On the EVM, this function can be tested and used by populating the J20 jumper and using the S2 pushbutton. Populating the J7 jumper connects the WAKE pin to the pushbutton, which biases the WAKE pin to a divided down VSUP level (~90% of VSUP).

  • Page 5: Txd And Rxd

    Pads to add capacitance to the TXD and RXD traces are available by using the C7 and C8 pads, respectively. The TXD header pin is connected directly to the TXD pin on the TLINx441x device, and can be use to drive a signal into the LIN bus. This signal can be read back on the RXD header pin, which is directly connected to the RXD pin on the TLINx441x device.

  • Page 6: Test Points

    Only necessary for internal use. Pushbutton switch for local wake up function. Button switch to enable notification LEDS for LIMP, WAKE, EN/nINT, and PIN/nCS. TLINX441X EVM User's Guide SLLU304 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 7: Schematic And Bill Of Materials

    LIMP_MCU LIMP_MCU GPIO0/I2C(SDA) 10uF MMBZ27VCL-7-F VSUPPROT 3.01k 10uF EVQP1D05M VSUP 33.2k VSUP 0.1uF WAKE 220pF 10.2k 220pF Figure 2. TLIN14415EVM Schematic LIN SBC SLLU304 – August 2018 TLINX441X EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 8: Tlin14415Evm Schematic Usb2Any

    +3.3V_EXT FAULT ILIM 2.2uF VBUS 160k 90 ohm 90 ohm 100k 22uF Zener 7.5V 0.01uF EXT3.3V_EN 220pF EXT3.3V_FAULT Figure 3. TLIN14415EVM Schematic USB2ANY TLINX441X EVM User's Guide SLLU304 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 9: Bill Of Materials

    Connector, Receptacle, Mini-USB Type B, R/A, Top Mount USB Mini Type B 1734035-2 TE Connectivity J13, J15, J20 Header, 100mil, 2x1, Gold, TH Header, 2x1, 100mil 5-146261-1 TE Connectivity SLLU304 – August 2018 TLINX441X EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 10 6-pin SOT-23 (DBV), Green (RoHS & no Sb/Br) 4-Channel ESD Protection Array for High-Speed Data DRY0006A TPD4E004DRYR Texas Instruments Interfaces, DRY0006A (USON-6) TLINX441X EVM User's Guide SLLU304 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 11 RES, 51, 5%, 0.1 W, 0603 0603 CRCW060351R0JNEA Vishay-Dale R4, R5, R38, R39, R40, RES, 0, 5%, 0.1 W, AEC-Q200 Grade 0, 0603 0603 CRCW06030000Z0EA Vishay-Dale SLLU304 – August 2018 TLINX441X EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 12 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 13 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 14 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
  • Page 15 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
  • Page 16 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
  • Page 17 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TLIN14415EVM...
