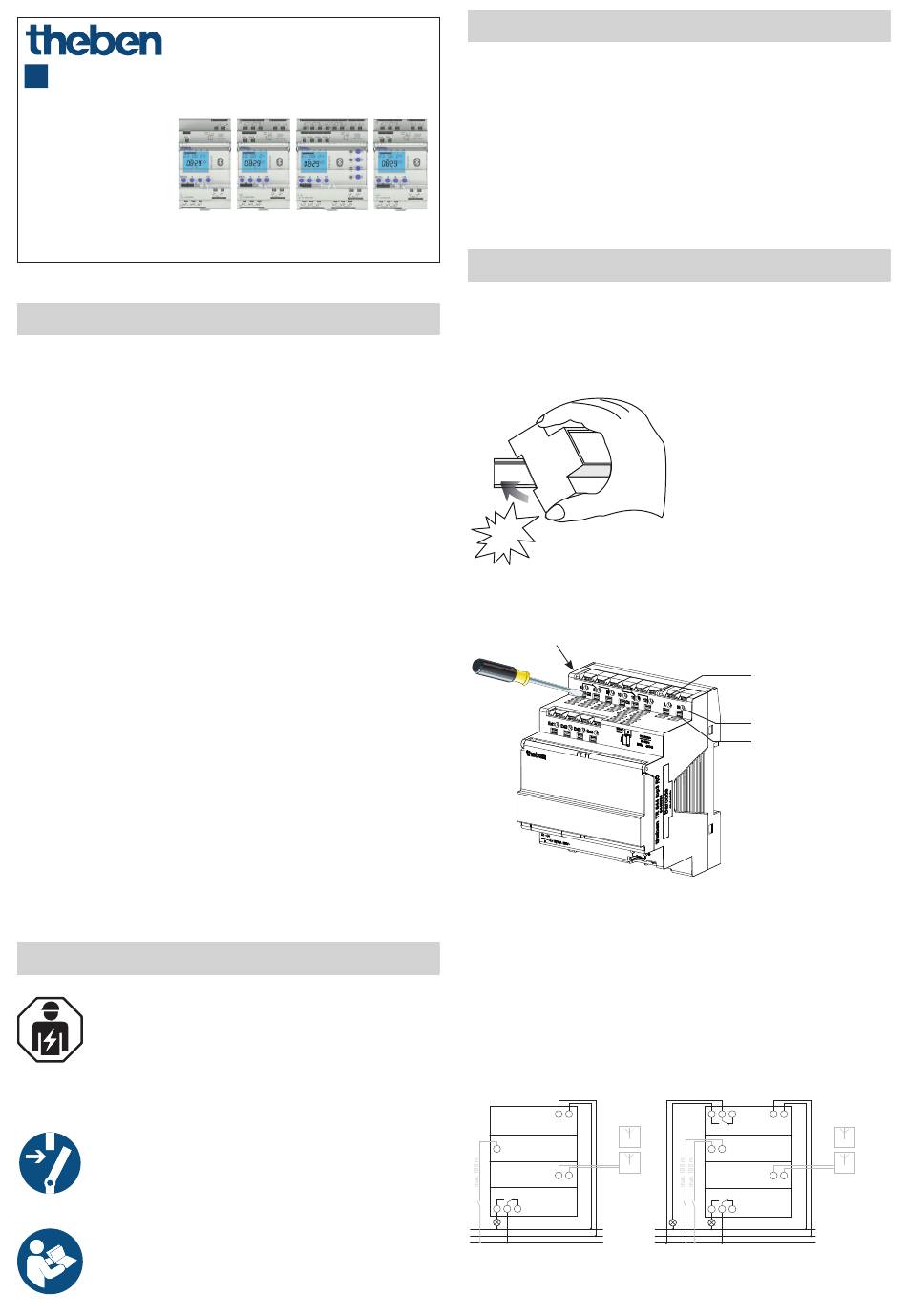

Theben TR 641 top3 BLE RC Manual

Time switch
EN
TR 641 top3 BLE RC
6410330
TR 642 top3 BLE RC
6420330
TR 644 top3 BLE RC
6440330
TR 642 top3 12–24 V RC
6424330
1. General information
•
Digital time switch with yearly and astro program
•
The device is designed for installation on DIN rails (in
accordance with EN 60715) and conforms with type 1
BSTU in accordance with IEC/EN 60730-2-7
•
Bluetooth integrated
•
16 special programs, 800 memory locations
•
Programmable with OBELISK top2/3 PC set (9070409);
with PC and OBELISK top3 software and via mobile
devices with the OBELISK top3 app
•
Time synchronisation via connection of an external DCF
or GPS/ GPS antenna (positioning for astro program with
GPS/GNSS)
•
Versions:
TR 641 top3 BLE RC: 1 channel, 1 external input (RC),
BLE
TR 642 top3 BLE RC: 2 channels, 2 external inputs (RC),
BLE
TR 644 top3 BLE RC: 4 channels, 4 external inputs (RC),
BLE
TR 642 top3 12–24 V RC: 2 channels, 2 external inputs
(RC), BLE
•
Accessories:
OBELISK top3 PC software, OBELISK top2/3 memory card
(9070407), OBELISK top3 (9070130), OBELISK top3 app
(for Android, iOS), RC-GNSS R antenna (9070807), RC
GNSS antenna (9070823), RC-DCF antenna (9070410)
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
mains voltage and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
and observe all the operating instructions.
3. Proper use
307658
12/12/2024
•
The time switch is used, for example, for light controls,
school bells, church bells, ventilation systems, bell sys-
tems, etc.
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment, etc.
4. Installation and connection
Mounting the time switch
Mount on DIN rail.
†
click
Connecting the time switch
!
Correct connection required for smooth functioning of
the zero-cross switching.
!
Secure the device with an upstream type B or type C
circuit breaker (EN 60898-1) with a maximum of 16 A.
TR 641 top3 BLE RC
Ext1
C1
1 2 3
TH 35-7,5
(DIN EN 60715)
45° cable
TR 642 top3 BLE RC
L N 4 5 6
RC GNSS
Ext1 Ext2
RC DCF
Data
1 2 3
N
L
L
DuoFix- load line
connection
Test connection
Spring plug-
in terminal
opener
L N
C2
RC GNSS
RC DCF
Data
C1
N
L
L
1
