Manual | EN
Push-button extension for 10.1-inch
"Economy" built-in Panel
C9900-G072 and C9900-G073
2025-02-07 | Version: 1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C9900-G072 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Beckhoff C9900-G072

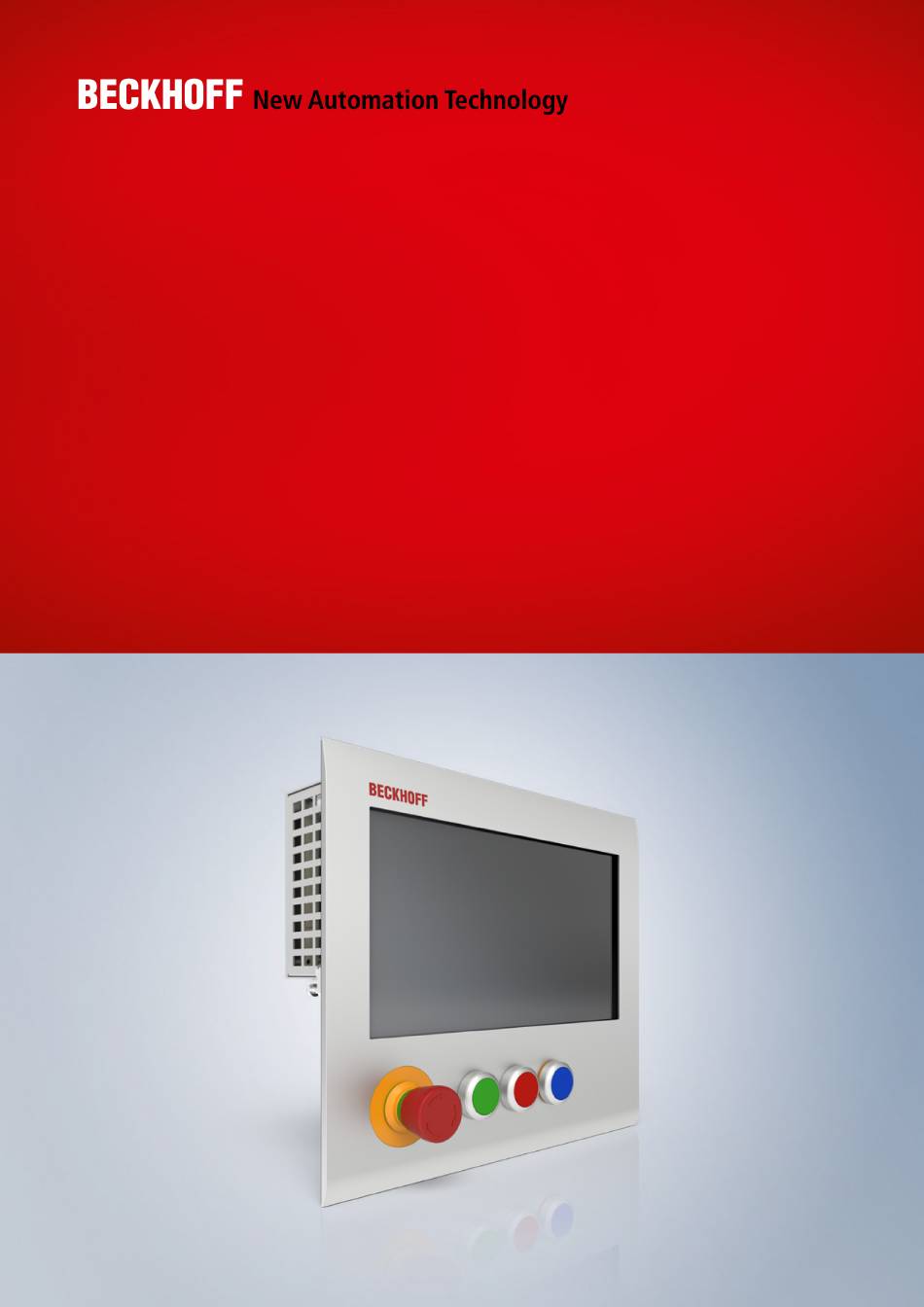

  • Page 1 Manual | EN Push-button extension for 10.1-inch "Economy" built-in Panel C9900-G072 and C9900-G073 2025-02-07 | Version: 1.5...
  • Page 3: Table Of Contents

    5 Configuration push-button extension .................... 19 TwinCAT System Manager connection ...................  19 I/O task linking.......................... 24 6 Dimensional drawing .......................... 27 Dimensional drawing CP6x00 with C9900-G072 or C9900-G073 .......... 27 7 Technical data ............................ 29 8 Support and Service .......................... 31 Push-button extension for 10.1-inch Version: 1.5...
  • Page 4 Table of contents Version: 1.5 Push-button extension for 10.1-inch "Economy" built-in Panel...
  • Page 5: Foreword

    If third parties make use of the designations or trademarks contained in this publication for their own purposes, this could infringe upon the rights of the owners of the said designations. ® EtherCAT is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany.
  • Page 6: For Your Safety

    All the components are supplied in particular hardware and software configurations which are appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation, and drive technology who are familiar with the applicable national standards.
  • Page 7: Notes On Information Security

    Foreword Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats.
  • Page 8: Transport And Unpacking

    5. Check the contents for visible shipping damage. 6. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Beckhoff Service (see Chapter 10.1 Support and Service) Version: 1.5 Push-button extension for 10.1-inch...
  • Page 9: Product Description

    The push button extension can be ordered ex factory for all control panels and panel PCs of the "Economy" family in size 10.1-inch (CP6600, CP6700 and CP6900). C9900-G072 (USB version) The actuation of the emergency stop and other push buttons is transferred to the controller via USB and can be read with TwinCAT.
  • Page 10: Options

    Installing the labels [} 17]. Options Options Description C9900-G072 Push-button extension for CP6x00 with horizontal 10.1-inch display • push-button extension on the bottom side • 3 push-button with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm • 1 emergency stop, type RAFI RAFIX 22FS+ •...
  • Page 11: Intended Use

    0,2 to 1,5 mm Stranded conductor, with ferrules, with plastic collar 0,25 to 0,75 mm Stranded conductor, with ferrules, without plastic 0,25 to 1,5 mm collar 3.4.1 C9900-G072 connections X2 (Wago 6- X1 (Wago 4- pin) pin) Push-button extension for 10.1-inch Version: 1.5...
  • Page 12 Product description 3.4.1.1 C9900-G072 circuit diagram Fig. 1: C9900-G072 Version: 1.5 Push-button extension for 10.1-inch "Economy" built-in Panel...
  • Page 13 Product description 3.4.1.2 Description of the C9900-G072 connections Connection strip Terminal point Description X1.1 NO contact emergency stop X1.2 NO contact emergency stop X1.3 NO contact emergency stop X1.4 NO contact emergency stop Connection strip Terminal point Description X2.1 NO contact S4 blue X2.2 NO contact S4 blue...
  • Page 14: C9900-G073 Connections

    Product description 3.4.2 C9900-G073 connections X2 (Wago 6-pin) X3 (Wago 12- X1 (Wago 4-pin) pin) 3.4.2.1 C9900-G073 circuit diagram Fig. 2: C9900-G073 Version: 1.5 Push-button extension for 10.1-inch "Economy" built-in Panel...
  • Page 15 Product description 3.4.2.2 Description of the C9900-G073 connections Connection strip Terminal point Description X1.1 NO contact emergency stop X1.2 NO contact emergency stop X1.3 NO contact emergency stop X1.4 NO contact emergency stop Connection strip Terminal point Description X2.1 NO contact S4 blue X2.2 NO contact S4 blue X2.3 NC contact S3 red X2.4 NC contact S3 red...
  • Page 16: Accessories

    Product description Accessories 3.5.1 Push-button caps and labels Options Description C9900-Z255 Push-button cap (blue) for individual application to a C9900-G0xx push-button extension, type Rafi FS+, diameter: 22.3 mm, 5 pcs. C9900-Z256 Push-button cap (yellow) for individual application to a C9900-G0xx push-button extension, type Rafi FS+, diameter: 22.3 mm, 5 pcs.
  • Page 17: Mounting

    Mounting Mounting Installing the labels The blank label sheets for the push-buttons of the push-button extension offered under order code C9900- Z260 can be printed with a conventional office printer and then inserted in the push-button extension. Push-button extension for 10.1-inch Version: 1.5 "Economy"...
  • Page 18: Installing The Wago Picomax® Connector System

    Mounting Installing the Wago picoMax® connector system Plugged connection consists of male connector and female connector with grip plate and release slide Disconnect the plug connection with the release slide. 1. Open the locking device (latch) by pushing down the release slide on the grip plate.
  • Page 19: Configuration Push-Button Extension

    Configuration push-button extension Configuration push-button extension To use a push-button extension, you must also commission it. This includes, on the one hand, the integration of the push-button extension in the TwinCAT System Manager and, on the other hand, the linking of I/O tasks.
  • Page 20 Configuration push-button extension 4. Select the devices you want to use and confirm the selection with OK. Fig. 5: Select device 5. Confirm the request with Yes, in order to scan for boxes. Fig. 6: Scan for box modules 6. Confirm the request whether to enable FreeRun with Yes. ð...
  • Page 21 Configuration push-button extension Table 2: Assignment of inputs and outputs and function Term Inputs/outputs Function Term Inputs/outputs Function Term 1 (KL1002) 1 Term 6 (KL2408) 1 S19 LED red not used S19 LED green Term 2 Key 1 S19 LED blue (CPx9xx-8) Key 2 S19 LED white...
  • Page 22 Configuration push-button extension Term Inputs/outputs Function Term Inputs/outputs Function Term 11 S12 LED red Term 17 S26 LED500 (KL2408) (KL2408) S12 LED green S26 LED501 S12 LED blue S26 LED502 S12 LED white S26 LED503 S16 LED red S26 LED504 S16 LED green S26 LED505 S16 LED blue...
  • Page 23 Configuration push-button extension 5. Enter the function of the input or output from the previous table as the new name. ð You have renamed the input or output. Fig. 7: Renaming inputs and outputs Push-button extension for 10.1-inch Version: 1.5 "Economy" built-in Panel...
  • Page 24: I/O Task Linking

    Configuration push-button extension I/O task linking The free TwinCAT version is sufficient for reading push button extensions, you do not need an extra TwinCAT license. After reading in, you can extract the ADS info and use it as part of the ADS (Automation Device Specification) communication protocol.
  • Page 25 Configuration push-button extension 4. Right-click on Inputs on the left in the tree view and then click Add New Item. 5. Create a BOOL variable with a size of one byte. 6. Link the BOOL variable to the EtherCAT device. 7.
  • Page 26 Configuration push-button extension 8. Connect the BOOL variable with a variable of the EtherCAT device, e.g. Key 1. 9. Activate the configuration and restart the TwinCAT system when requested. 10. Remove the ADS info from the variable in order to use it later in the ADS programming. ð...
  • Page 27: Dimensional Drawing

    Dimensional drawing Dimensional drawing Dimensional drawing CP6x00 with C9900-G072 or C9900-G073 Fig. 8: External dimension Push-button extension for 10.1-inch Version: 1.5 "Economy" built-in Panel...
  • Page 28 Dimensional drawing Fig. 9: Installation dimension Version: 1.5 Push-button extension for 10.1-inch "Economy" built-in Panel...
  • Page 29: Technical Data

    Technical data Technical data NOTICE Risk of explosion! The built-in panels with push button extension must not be used in hazardous areas! Product designation C9900-G072/-G073 Operating temperature 0…55 °C Shock resistance EN 60068-2-6: 10 to 58 Hz: 0.035 mm 58 to 500 Hz: 0.5 G (~ 5 m/s²)
  • Page 30 Technical data Table 3: Characteristic values emergency stop and push buttons Properties Description Min. operating current AC/DC 1 mA Max. operating current AC/DC 100 mA Switching capacity max. 250 mW Protection rating IP65 Emergency stop type 1.30.273.512/0030 Rafi 22FS+ The emergency stop is reset by rotating. Lifetime 50,000 cycles B10 value...
  • Page 31: Support And Service

    Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on our internet page: www.beckhoff.com You will also find further documentation for Beckhoff components there.
  • Page 32 Trademark statements Beckhoff®, TwinCAT®, TwinCAT/BSD®, TC/BSD®, EtherCAT®, EtherCAT G®, EtherCAT G10®, EtherCAT P®, Safety over EtherCAT®, TwinSAFE®, XFC®, XTS® and XPlanar® are registered trademarks of and licensed by Beckhoff Automation GmbH.
  • Page 33 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
