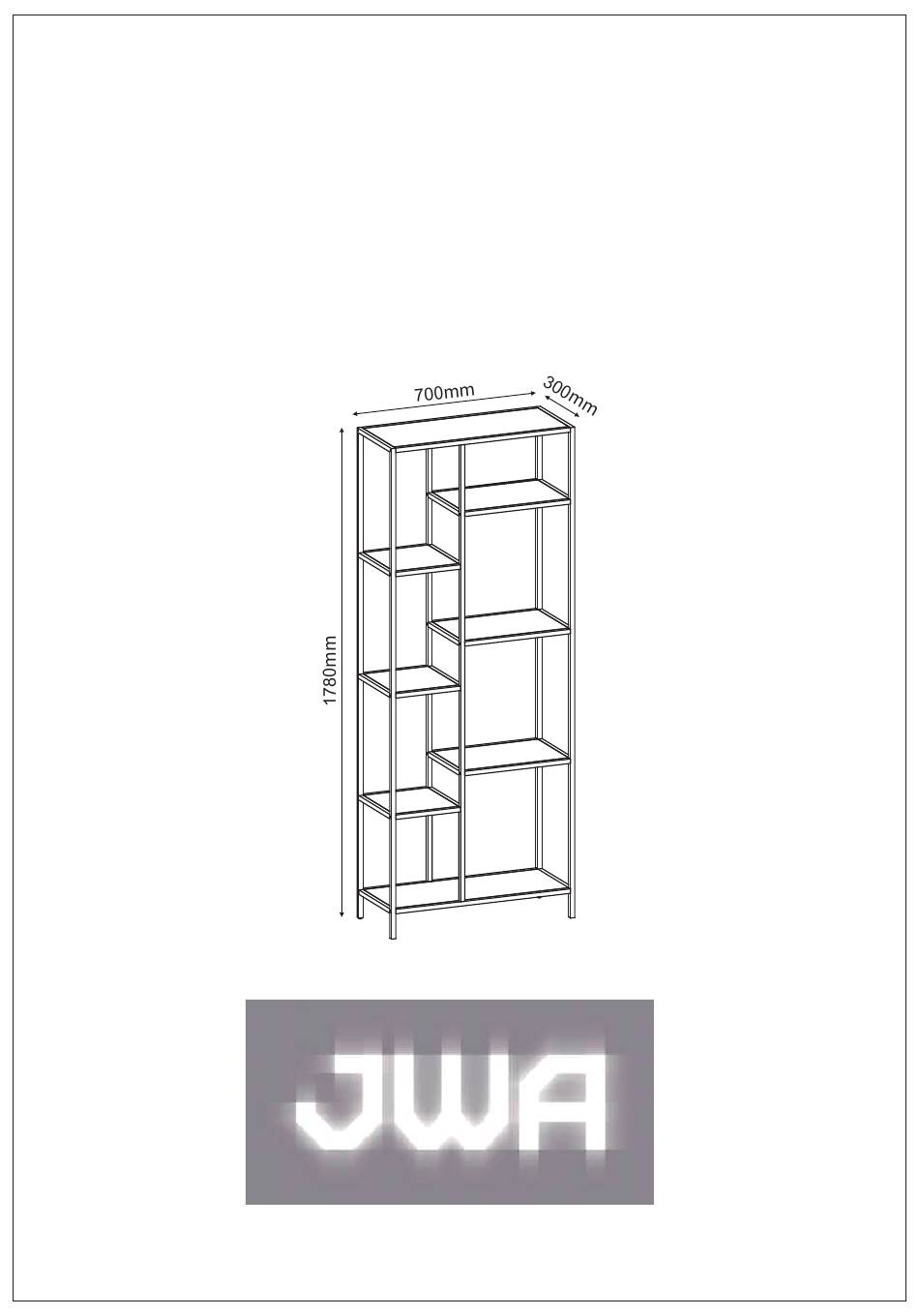

- Page 1 ASSEMBLY INSTRUCTION KRAMER Bookcase ITEM CODE 83573...
- Page 2 Avoid hard surfaces that may damage the product to the point of use Allow 30min For 2 person Additional tools required...
- Page 3 Wall...
-
Page 4: Parts List
PARTS LIST M6X35mm M6X12mm ST4X25mm ST3.5X12mm 34pcs 2pcs 1pcs Top panel Bottom panel Left layer panel Right layer panel Left main frame Right main frame Middle main frame... - Page 5 STEP 1: 1.Attach panel 3 to frame 5 with part A, fastening part A by tool G. STEP 2: 1.Attach panel 3 to frame 7 with part A, fastening part A by tool...
- Page 6 STEP 3: 1.Attach panel 2 to frame 5 and 7 with part A, fastening part A by tool G. STEP 4: 1.Insert panel 1 to frame 7 as shown in the figure.
- Page 7 STEP 5: 1.Attach panel 1 to frame 5 with part A, fastening part A by tool G. 2.Attach panel 1 to frame 7 with part B, fastening part B by tool G. STEP 6: 1.Attach panel 4 to frame 7 with part A, fastening part A by tool...
- Page 8 STEP 7: 1.Attach frame 6 to panel 1, 4 and 2,fastening part A by tool G. STEP 8:...
- Page 9 STEP 9: 1.Assembly complete!
- Page 10 To protect your furniture we suggest the following Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
