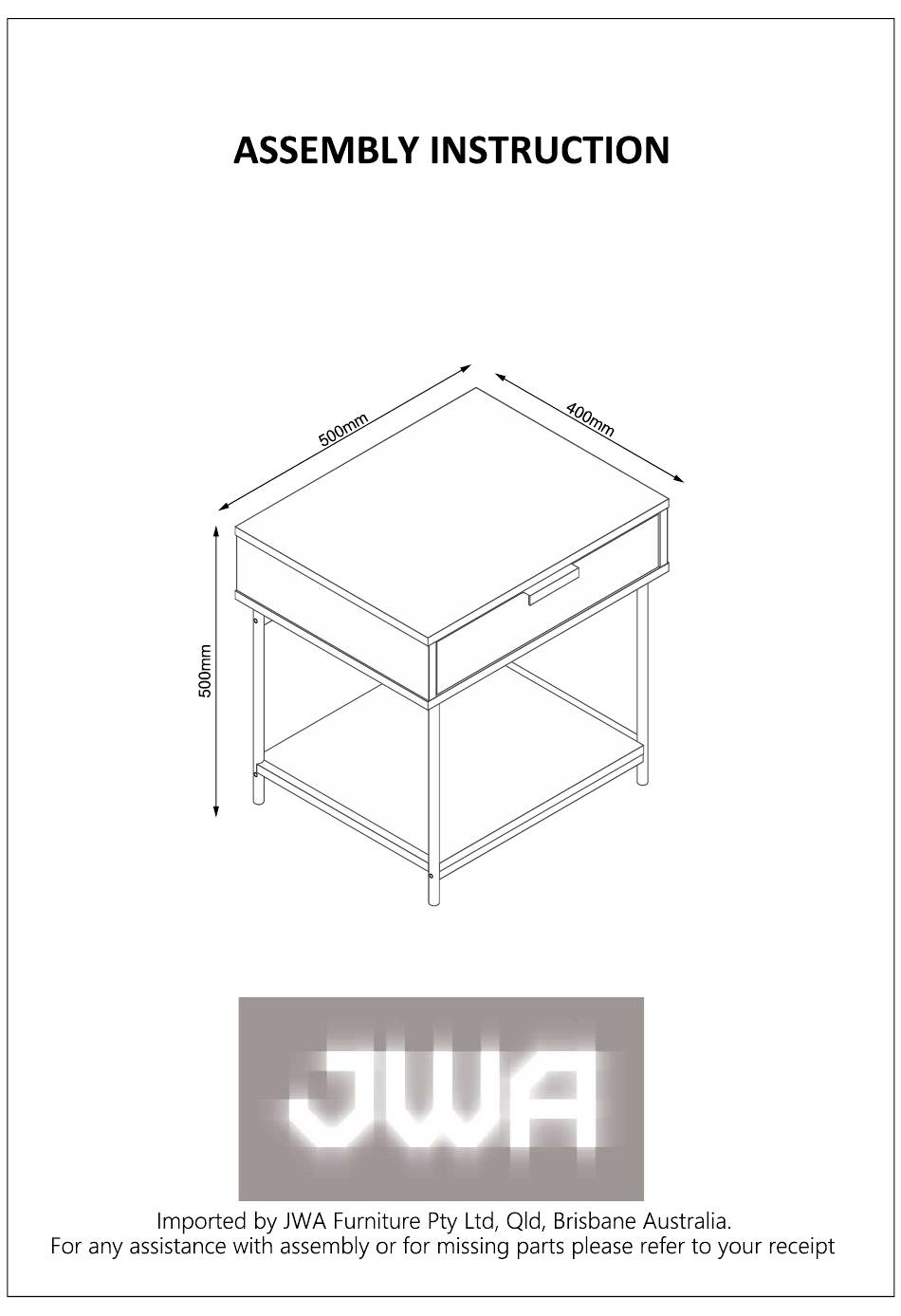

- Page 1 HESTER Bedside Table HESTER 81304 81305 81306...
- Page 3 2pcs 2pcs 2pcs Wall...
- Page 4 8X30mm M6X25mm ST5X50mm 8pcs 12pcs 12pcs 18pcs ST3.5X12mm ST4X25mm 12pcs 2pcs 2pcs 2pcs 18pcs Cabinet top panel Cabinet bottom panel Cabinet left side panel Cabinet right side panel Cabinet back panel Upper connecting panel Lower shelf panel Drawer front panel Drawer left side panel Drawer right side panel Drawer back panel...
- Page 5 STE 1: 1.Attach E1 to panel 3 with part F,Attach E3 to panel 4 with part F. STE 2: 1. Attach panel 3, 4,5 with part A.
- Page 6 STE 3: 1.Attach panel 2 to panel 5 with part A. Attach panel 2, 3, 4 with parts B and D. STE 4: 1. Attach panel 1, 3, 4, 5 together with parts A and B.
- Page 7 STE 5: 1.Attach frame 13 to panel 6 with part D. 2. Attach frame 13 to frame 14 with part C. STE 6: 1. Attach panel 7 to connecting tube 14 with part C.
- Page 8 STE 7: 1.Attach upper connecting panel 6 and frame 13 to cabinet bottom panel 2 with part A and C. STE 8: 1.Attach handle G to panel 8 with part F.
- Page 9 STE 9: 1.Attach panels 9, 10, 11 together with part D, and insert bottom panel 12 as the instruction showing. STE 10: 1. Attach panel 8, 9, 10 together with part A.
- Page 10 STE 11: 1.Attach E2 to panel 9 with part F. Attach E4 to panel 10 with part F. STE 12: 1.Insert the drawer as the instruction showing.
- Page 11 STE 13: 1.Attach J to cabinet top panel with part F. 1.Attach I to the wall with part...
- Page 12 STE 15: Assembly complete!
