Summary of Contents for JWA GRANT 716520001

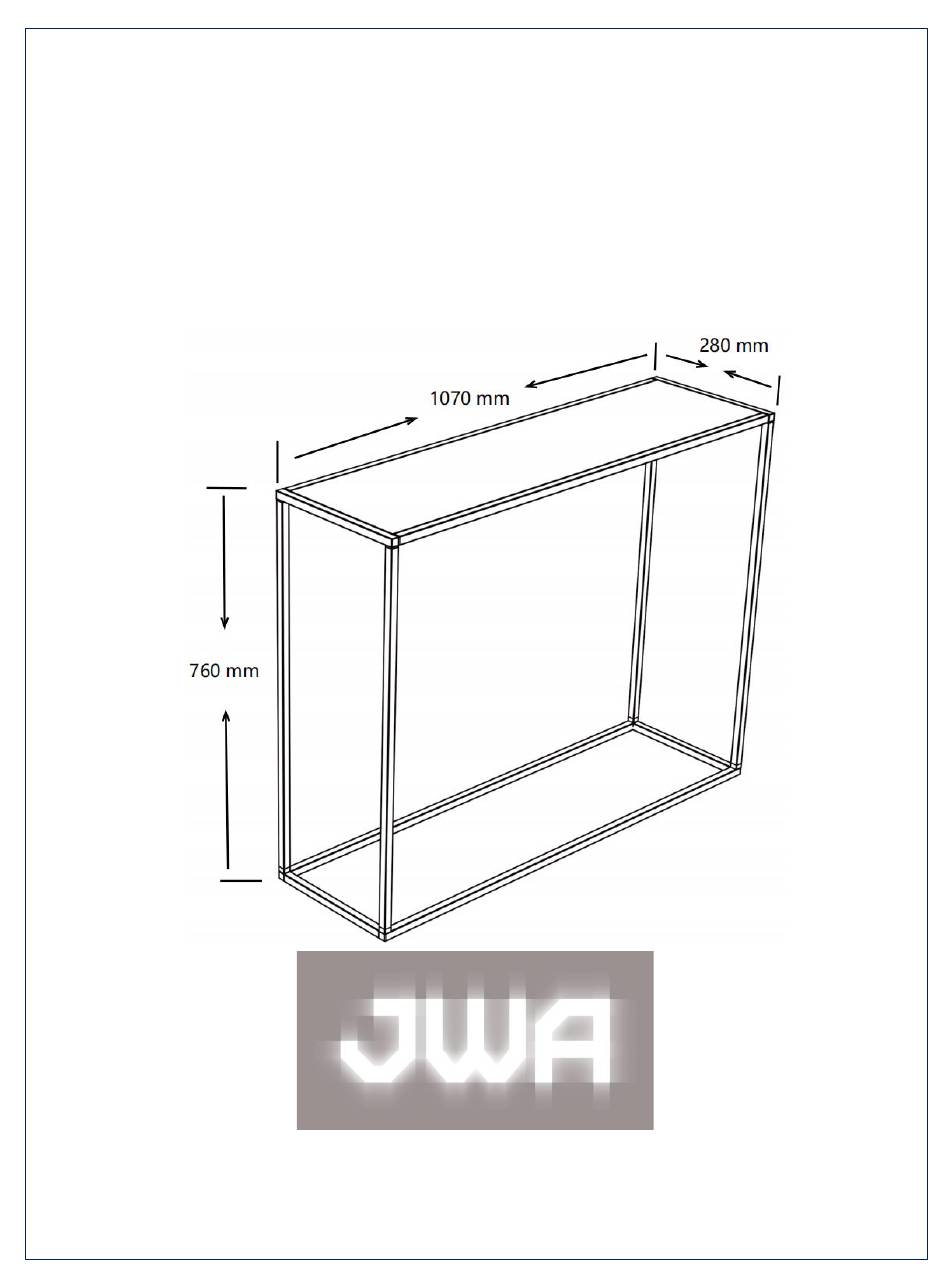

- Page 1 ASSEMBLY INSTRUCTION GRANT SOFA TABLE ITEM CODE 716520001 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST BOLT M6X10MM 16 PCS HEX KEY 1 PC FOOT STICKER 4 PCS Top Panel x1 Bottom Frame x1 Support Leg x4...
- Page 4 STEP 1: • Prepare a surface with a protective blanket or cardboard. • Place the top panel(1) flat on the surface. • Insert the 4xsupport leg(3) onto the top panel(1). • Secure with bolt(A) per connection. Fasten with allen key(B). •...
- Page 5 STEP 2: • Connect bottom frame(2) to support leg(3). • Secure with bolt(A) per connection. Fasten with allen key(B). • Attach the 4x footstickers(F) as shown. • Once levelled turn the table back on its side and fasten all the bolts.
- Page 6 ASSEMBLY IS COMPLETE...
- Page 7 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws. 3.
- Page 8 PRODUCT CARE: To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish. •...
