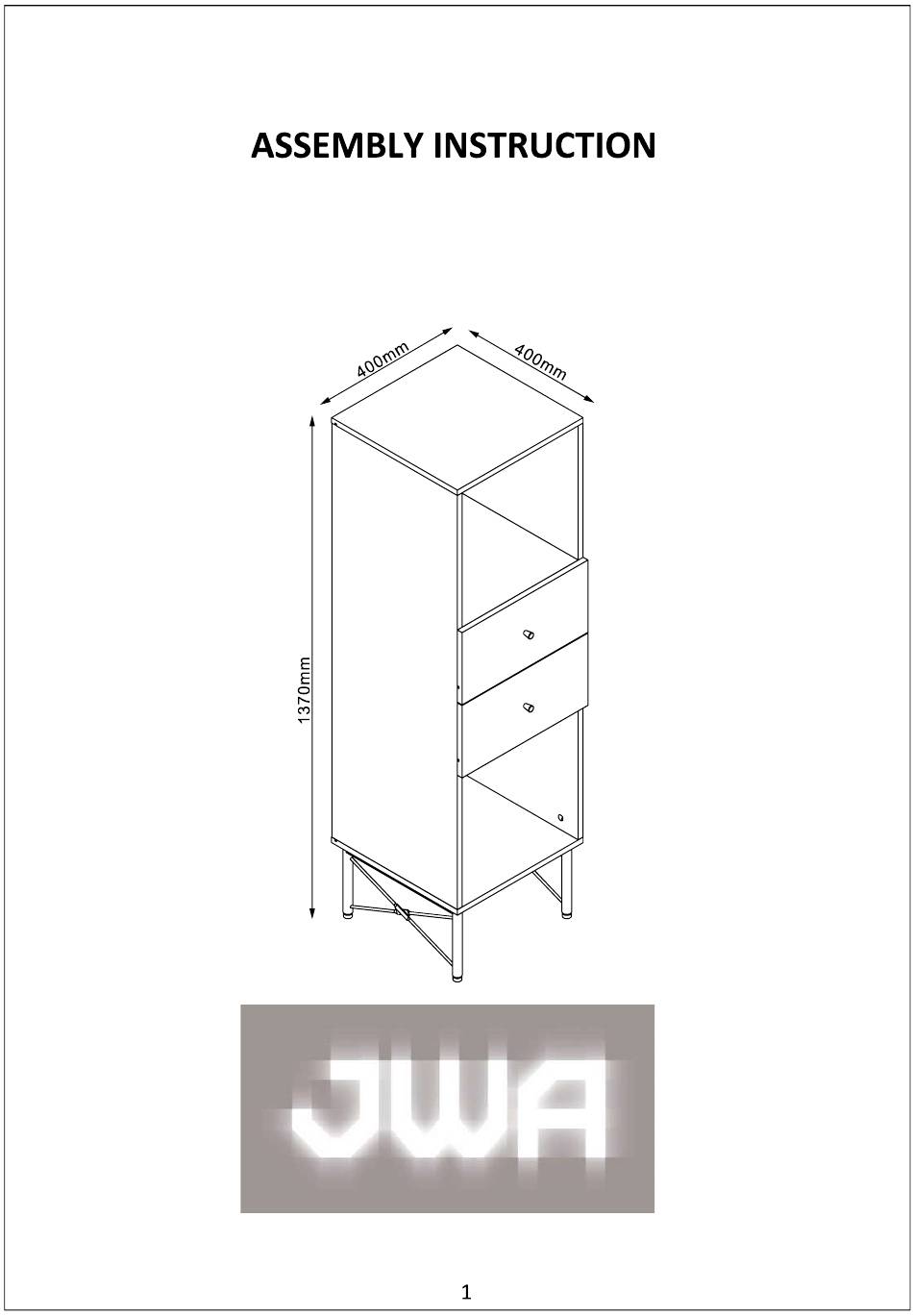

- Page 1 DEAN Bookcase ITEM CODE 75111 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min...
- Page 3 M6X40mm M6X30 mm 16pcs 4pcs 24pcs 4pcs 8pcs ST3.5X14mm M4X18mm ST5X50mm 4pcs 17pcs 2pcs 2pcs 8pcs ST4X25mm ST3.5X18mm M8X20X10mm 8pcs 8pcs 4pcs...
- Page 4 Back panel Drawer bottom panel Top panel Bottom panel Drawer front panel Main frame Left panel Drawer left panel Connection frame Right panel Drawer right panel Layer panel Drawer back panel...
- Page 5 1. Attach part O into frame P1. 1. Attach connection frame P2 to frame P1 with part D.
- Page 6 1. Attach frames P1 and P2 to panel 2 with part C. 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 3 and 4 with part G.
- Page 7 1. Insert parts A and B into panels 3 and 4. 1. Attach panels 3 and 4 to panel 5 with parts A and B.
- Page 8 STEP 7: 1. Insert parts A and B into panel 2. 2. Attach panel 2 to panels 3 and 4 with parts A and B. STEP 8: 1. Slide panel 6 along slots of panels 3 and 4.
- Page 9 STEP 9: 1. Insert parts A and B into panel 1. 2. Attach panel 1 to panels 3 and 4 with parts A and B. STEP 10: 1. Insert part J into panel 6. 2. Insert part K into panel 6 with part L.
- Page 10 STEP 11: 1. Attach panels 8 and 9 to panel 10 with part F. 2. Slide panel 11 along slots of panels 8 and9. STEP 12: 1. Insert part A into panel 7. 2. Attach panel 7 to panels 8 and 9 with part A. 3.
- Page 11 STEP13: 1. Attach part E2 to panels 8 and 9 with part G. STEP 14: 1. Install drawer 7 into the cabinet, ensure runners are correctly aligned.
- Page 12 STEP15: Install Tip Kit 1. Attach part N to the back of panel 1 with part G. 2. Attach part N to the wall with part M. ① STEP 16: Assembly complete!
