4.2. (Optional) Install other batteries (BU3-5.0-(TV1, TV2) or BU3-5.0-(TV1, TV2)-PRO)
1.

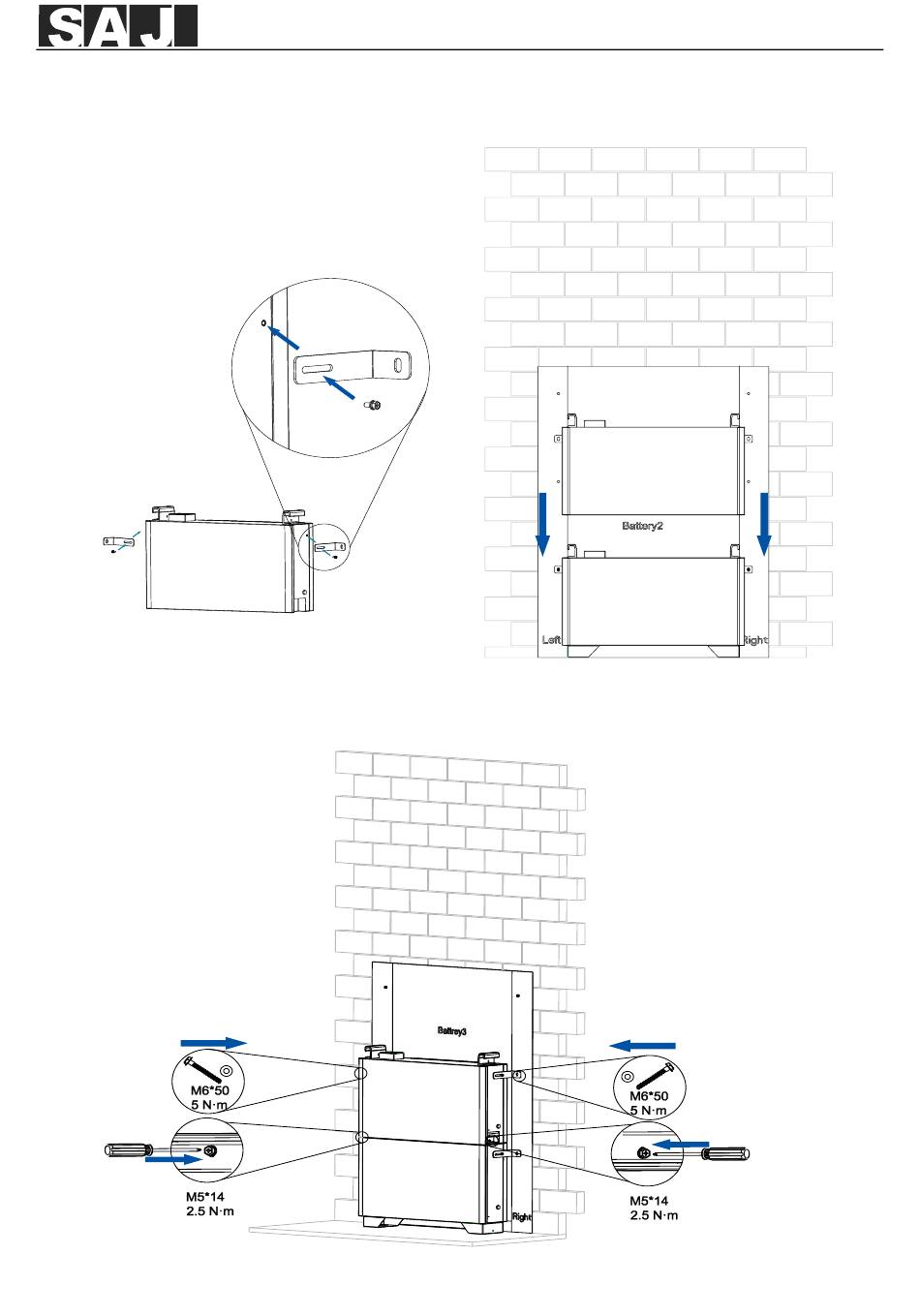

Use two M5*14 screws to install two locking brackets on both upper sides of the battery. Place this battery onto the base battery.
Push it downwards.
2.
On each lower side of the battery: Install two M5*14 screws to secure two batteries.
On each upper side of the battery: Align the locking bracket to the drill hole and install the gasket and M6*50 screw to secure the
locking brackets to the wall.
V1.0
M5*14
2.5 N· m
7
© 2024 Sanjing. All rights reserved.
