2.

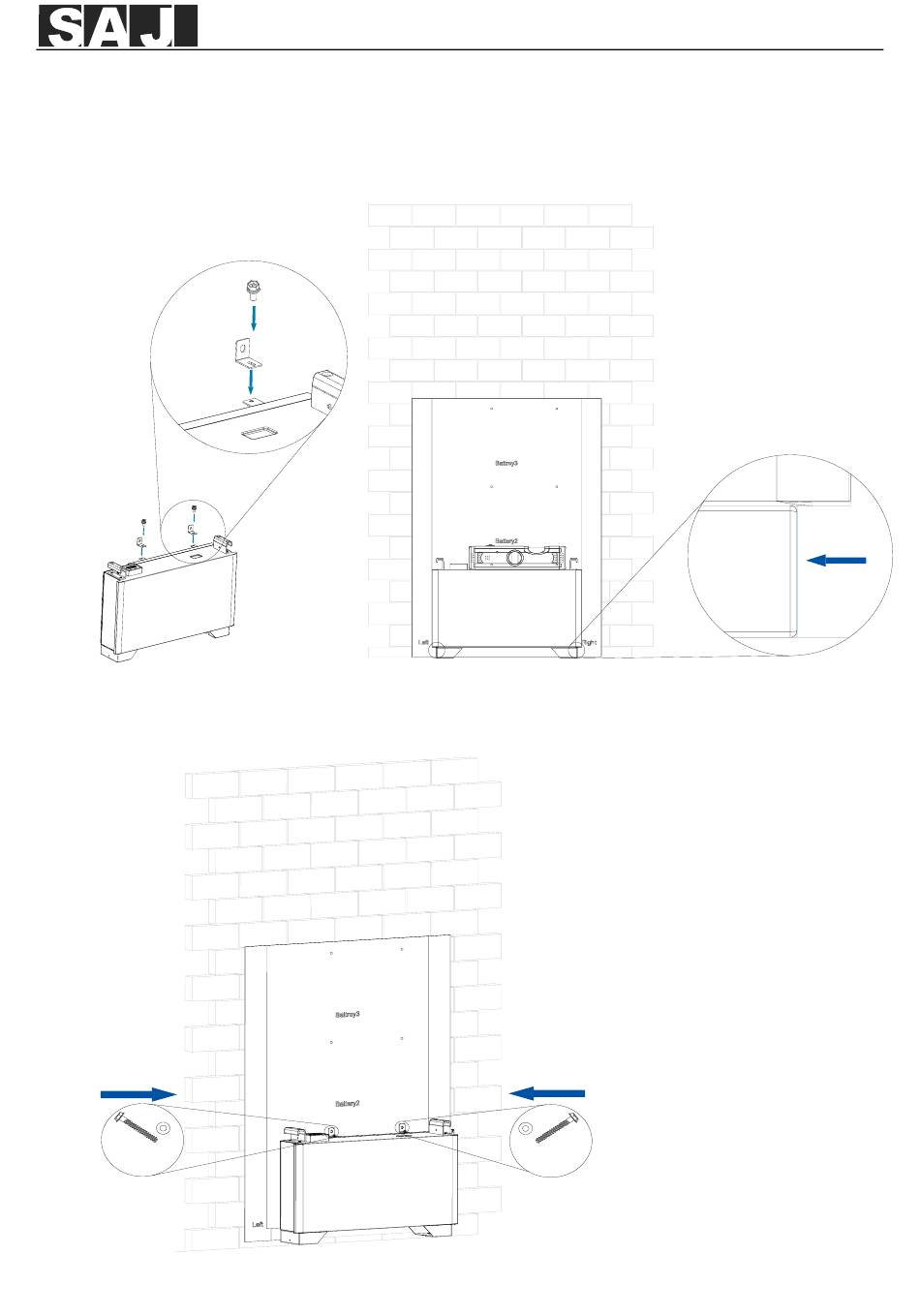

Use two M5*14 screws to install two locking brackets to the mounting ears on the top of the battery pack. On the desired installation
site, place the base battery on the floor. Make sure that:
The left and right battery bases are aligned with the vertical black lines on the cardboard.
⚫
The battery pack is placed horizontally. (It is recommended that a gradienter be used.)
⚫
The space between the battery back and the wall surface is 40–50 mm.
⚫
M5*14
2.5 N· m
3.
On the top of the battery pack, align the locking brackets to the drilled holes and install M6*50 screws to secure the locking brackets
to the wall.
Note: If the battery is installed outdoors, it is suggested to remove the cardboard which is not waterproof.
M6*50
5 N· m
V1.0
M6*50
5 N· m
