SAJ HS3 T2 Series Quick Manual page 23

6.3. Install other required devices
For details, refer to the same procedure (steps 5.2 to 5.4) in the ground mounting manner.
⚫ (Optional) Battery without a base (BU3-5.0-(TV1, TV2) or BU3-5.0-(TV1, TV2)-PRO): Step 5.2
(Optional) Charger (CU2-11K-T-I): Step 5.3
⚫
Inverter (HS3-xk-T2-W-B, HS3-xK-T2-W-P, HS3-xk-T2-G-B, or HS3-xK-T2-G-P): Step 5.4
⚫
(Optional) Battery combiner box (BC3-TV): Step 7
⚫
7. (Optional) Install a battery combiner box (BC3-TV)
One inverter supports up to eight batteries; however, for safety reason, a maximum of three batteries can be installed vertically in one stack.
Therefore, extra batteries must be installed in other stack(s) and the extra battery stack must be installed with a battery combiner box (BC3-TV).
Due to the cable length limitations, the distance between each battery stack is 0.5 meter.
It is recommended that the batteries be assembled in different stacks as follows:
Quantity of batteries supported by one inverter
1, 2, or 3 batteries
4 batteries
5 batteries
6 batteries
7 batteries
8 batteries

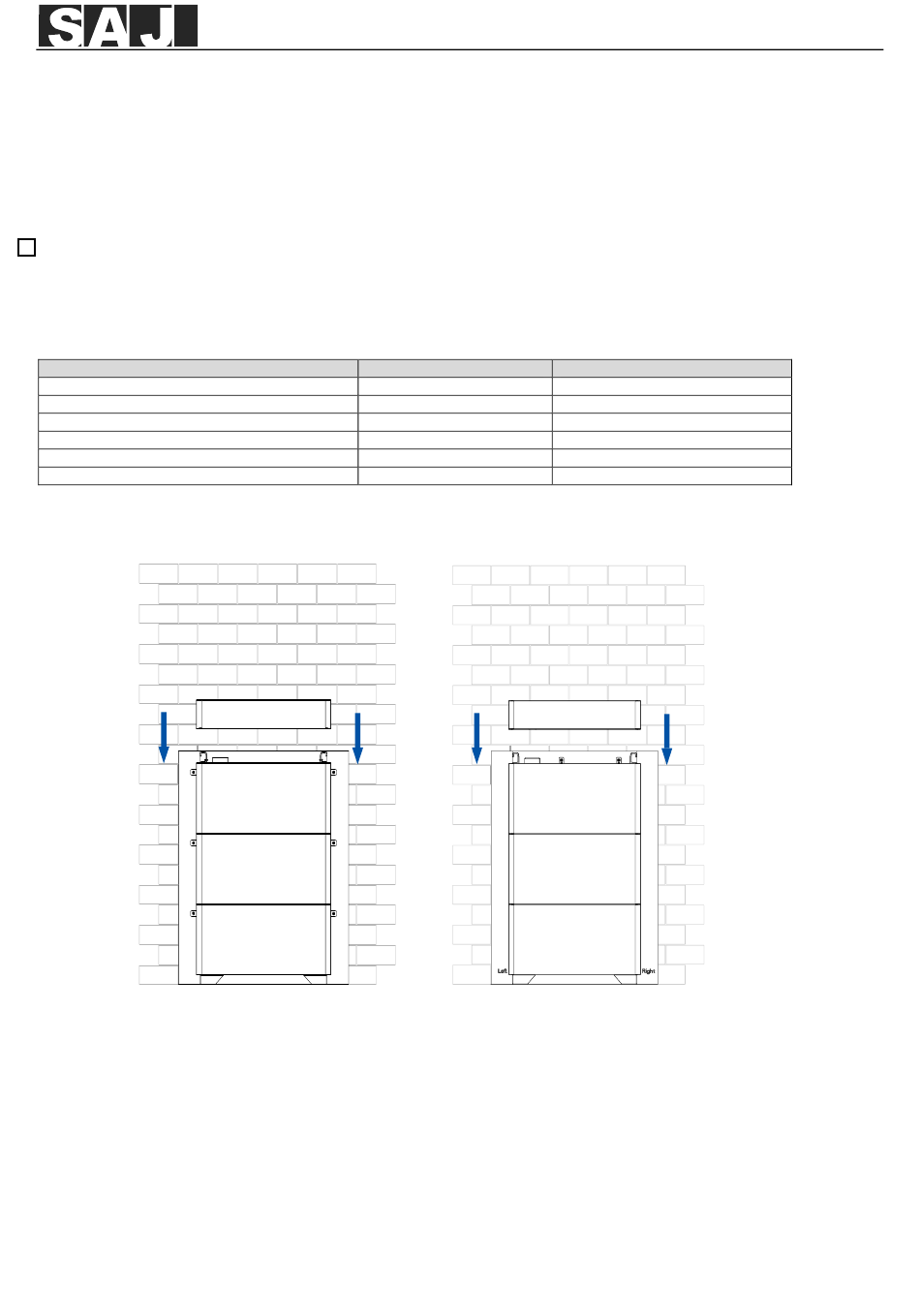

1. Place the combiner box onto the battery. Push it downwards.
On a type A battery pack
V1.0
Quantity of battery stacks
1 stack
2 stacks
2 stacks
2 stacks
3 stacks
3 stacks
On a type B battery pack
23
Quantity of batteries in each stack
1, 2, or 3
2, 2
3, 2
3, 3
3, 2, 2
3, 3, 2
