(Optional) Install other batteries (BU3-5.0-(TV1, TV2) or BU3-5.0-(TV1, TV2)-PRO)
Note: In one stack, up to three batteries are supported.
1.

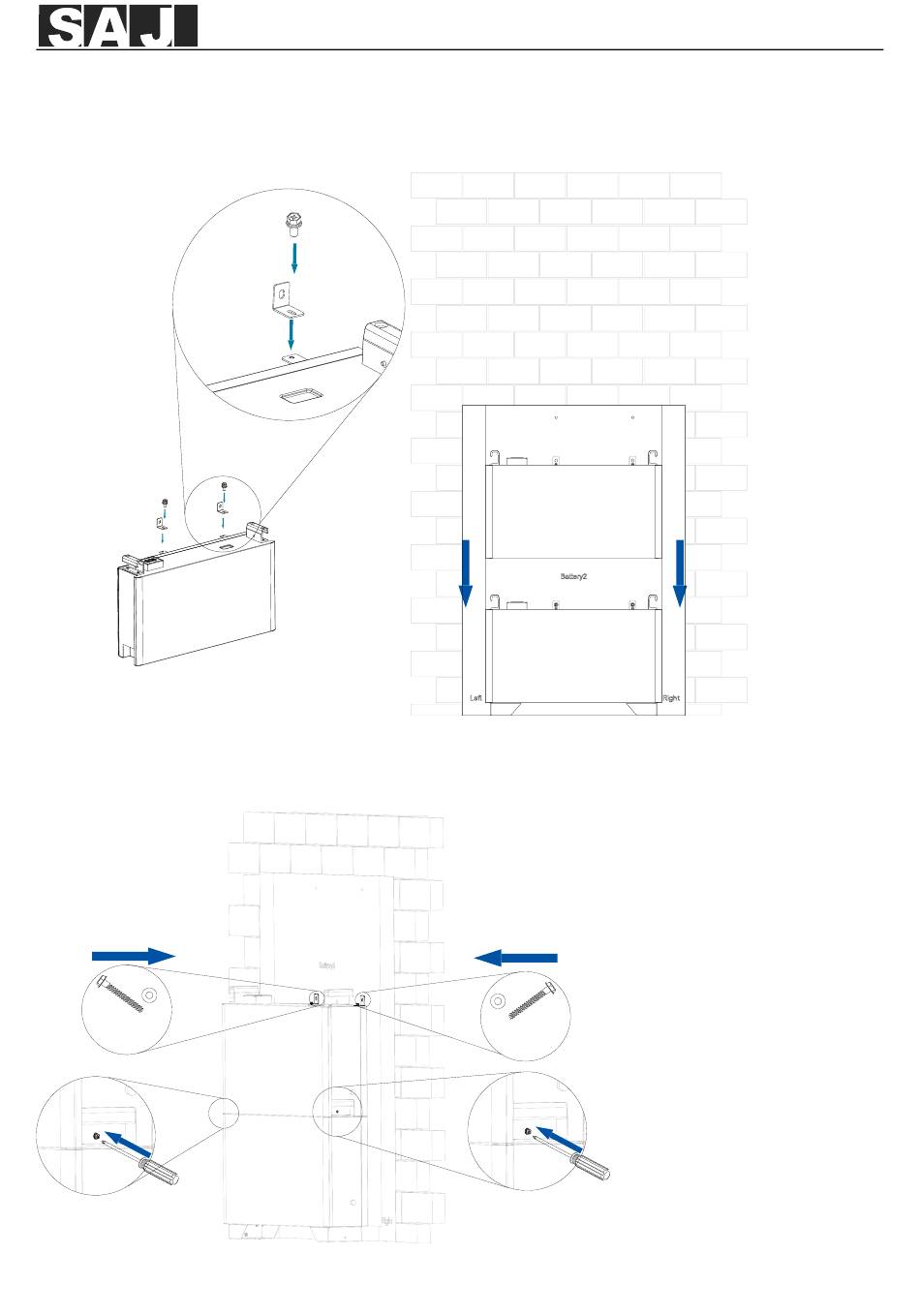

Use two M5*14 screws to install two locking brackets to the mounting ears on the top of the battery pack. Place this battery onto the
base battery and push it downwards.
M5*14
2.5 N· m
2.
On the top of the battery pack, align the locking brackets to the drilled holes and install the gaskets and M6*50 screws to secure the
battery pack to the wall.
On the left and right bottom sides of the battery pack, install M5*14 screws to secure two batteries.
M6*50
5 N· m
M5*14
2.5 N· m
V1.0
M6*50
5 N· m
M5*14
2.5 N· m
