SC2000E (Mini) Series Vision Sensor Quick Start Guide
● The 8-pin connector corresponds to other pins of the device's 17-pin interface. You can
wire according to the actual demands.
No. Signal
1 DO_5
2 DO_4
3 DO_3
4 DI_2
5 DI_1
6 DI_0
7 GND
8 POWER_IN
Note
You should refer to the table above and the label attached to the supplied power and I/O
cable to wire the device.

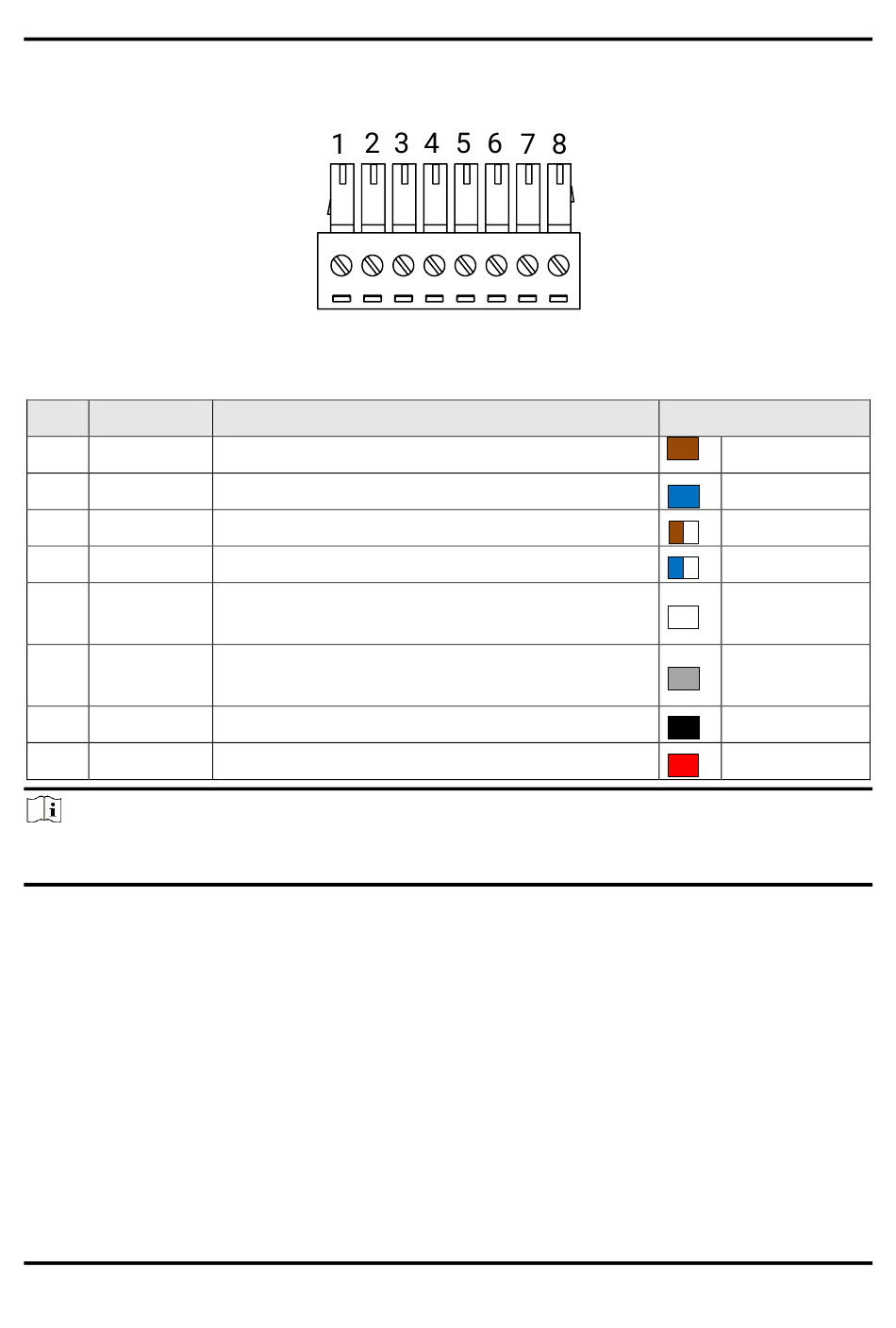

Figure 4-3 8-Pin Connector
Table 4-2 Pin Definitions
Description
--
--
Non-isolated output
Non-isolated input
Can be configured as input or output; input by
default
Can be configured as input or output; input by
default
Direct current power supply negative
Direct current power supply positive
9
Color
Brown
Blue
Brown/White
Blue/White
White
Gray
Black
Red
