5 Assembling the switch cabinet for indoor installation
Lastly, the cabinet is fitted into the holes previ-
ously made using the M8 (rough) bolts.
Alternative:
First screw the M8 bolts 15 mm into the wall and
use the slot to fit the cabinet in the wall brackets.
40 / 144

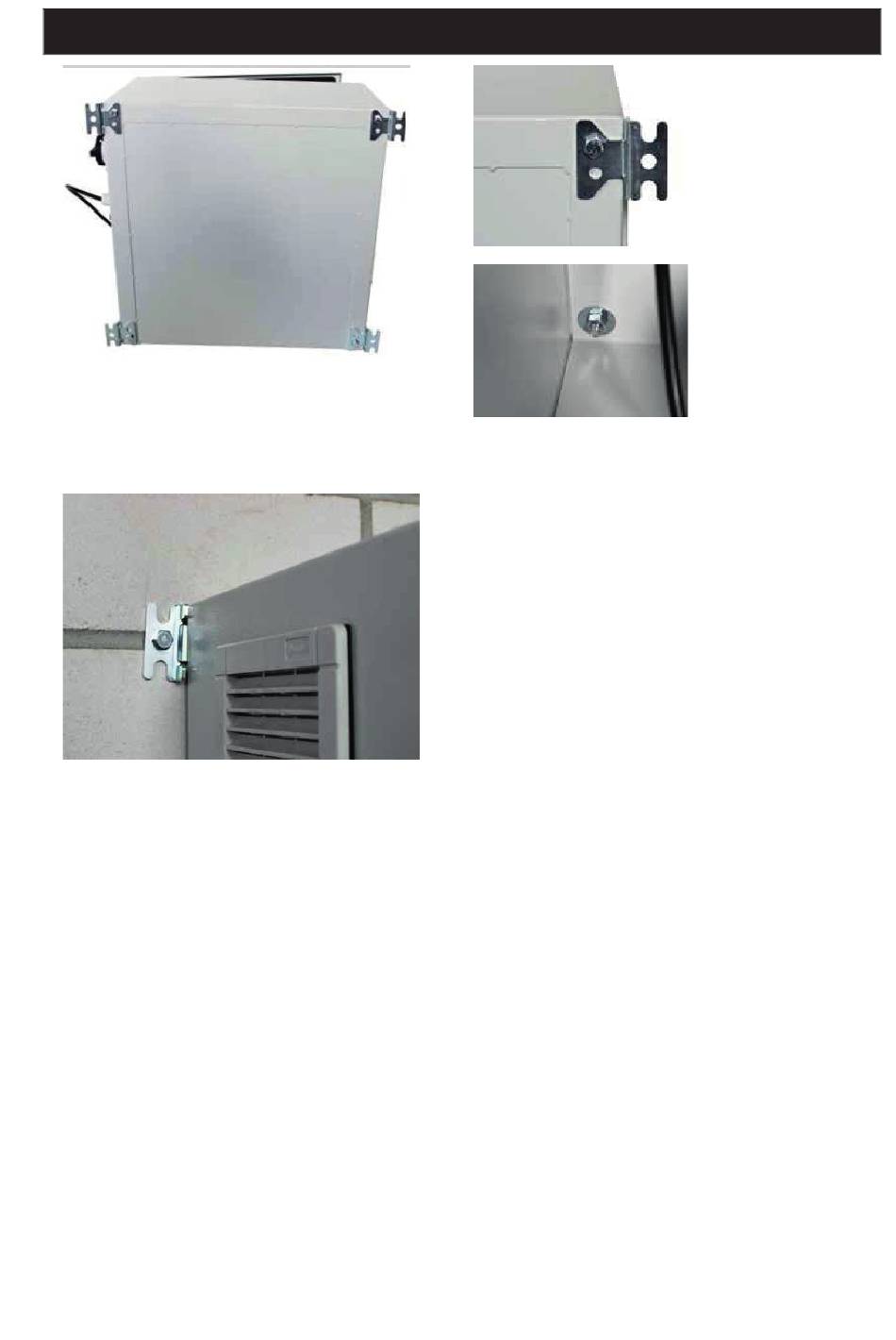

The wall brack-
ets should be
attached at the
holes in the
cabinet as
shown in the il-
lustration. The
brackets are
fixed with the
four M8 (fine)
bolts and the
associated
washers and
nuts.
Note
For cabinets
with Becker
compressors,
the brackets are
pre-assembled.
