Graf oneAdvanced Installation Instructions Manual page 11

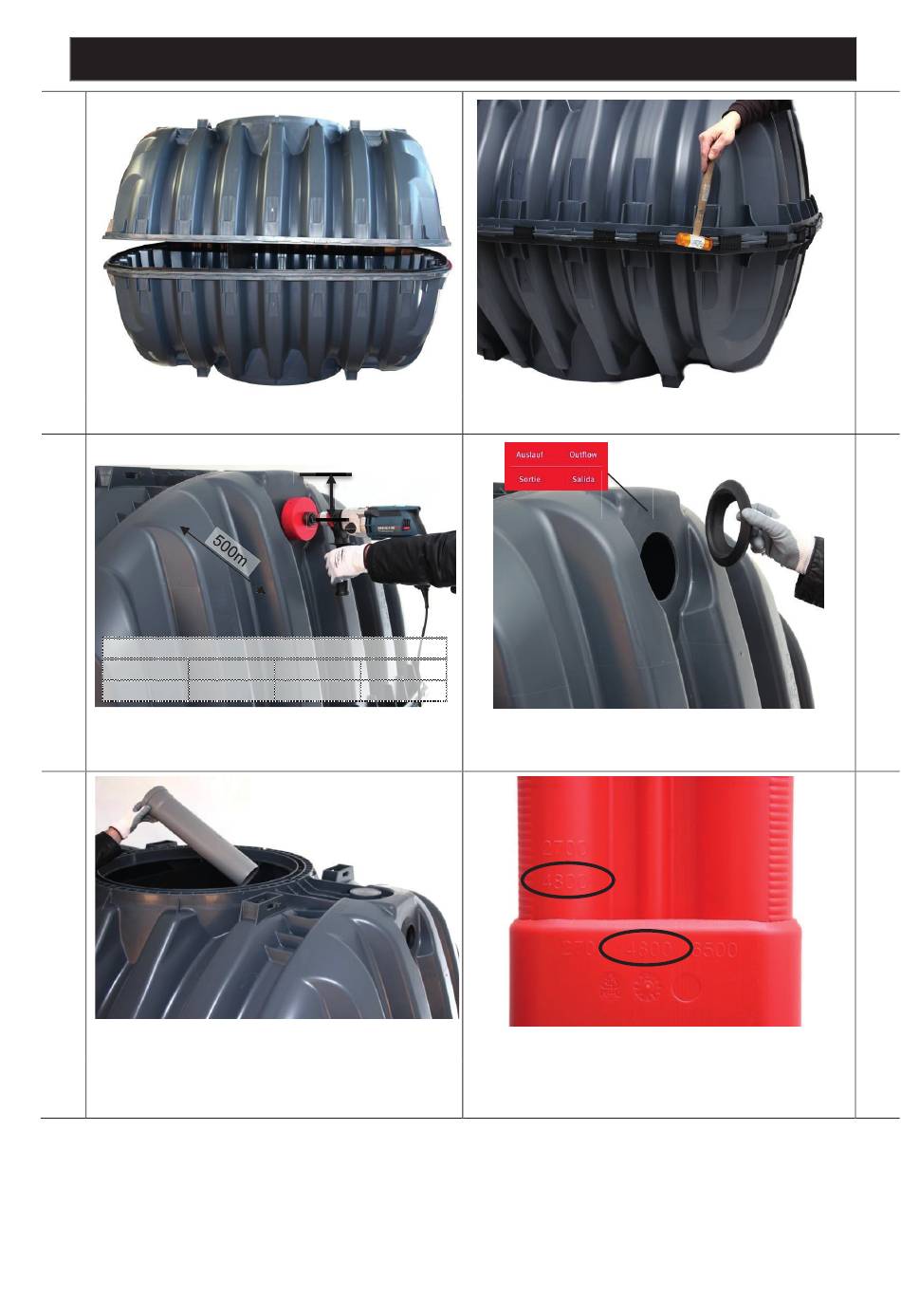

2 Final assembly and installation of oneAdvanced 3–9 PE
7.
Place the lower shell with its scum guard on the
upper shell.
9.
2700 L 3750 L
145 mm 145 mm
Drill inlet and outlet with DN 100 core drill
(diameter 124 mm).
11.
Slide drain pipe through outlet hole from inside.
H
H
4800 L 6500 L
190 mm 205 mm
Fit clips to connect upper and lower shells.
Deburr hole. Insert DN 100 edge seal. The drain
must run from the inside out.
Affix "Drain" sticker.
Depending on tank size, the lifter shoe has to be
turned. The tank size stated on the foot section
must match that on the lifter.
11 / 144
8.
10.
12.
