4 Final assembly and installation of oneAdvanced 16–90 PE

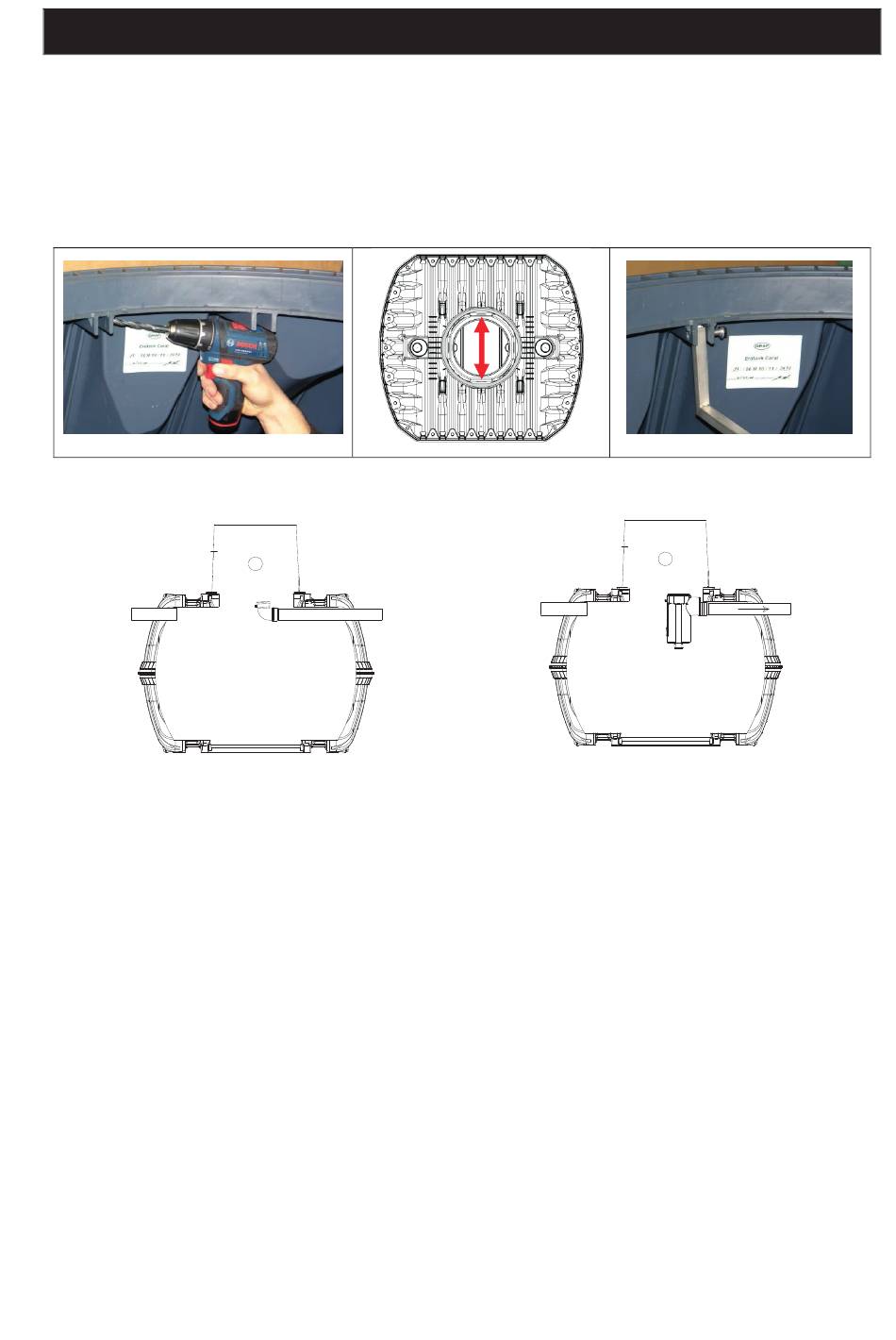

4.3.4 Installation of the crossbar
To fix the crossbar in the tank, holes are drilled through the opposing ribs in the access area using an 8
mm drill. The correct separation distance can be marked out with the aid of the crossbar.
The crossbar is then fixed into these holes using the M8 screws (2x M8x45), nuts (2x) and washers (4x).
The crossbar is then used to receive the holding plate from section 4.3.2.
4.3.5 Outlet pipe
Outlet pipe without sampler
When assembling the drain pipe, there are two options: with or without optional sampler.
Outlet pipe with sampler
