Pro-Form PFEL99521C.0 User Manual page 33

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch and unplug the
power cord.
Next, using
a standard
screwdriver,
carefully pry off
the left Disc (71).

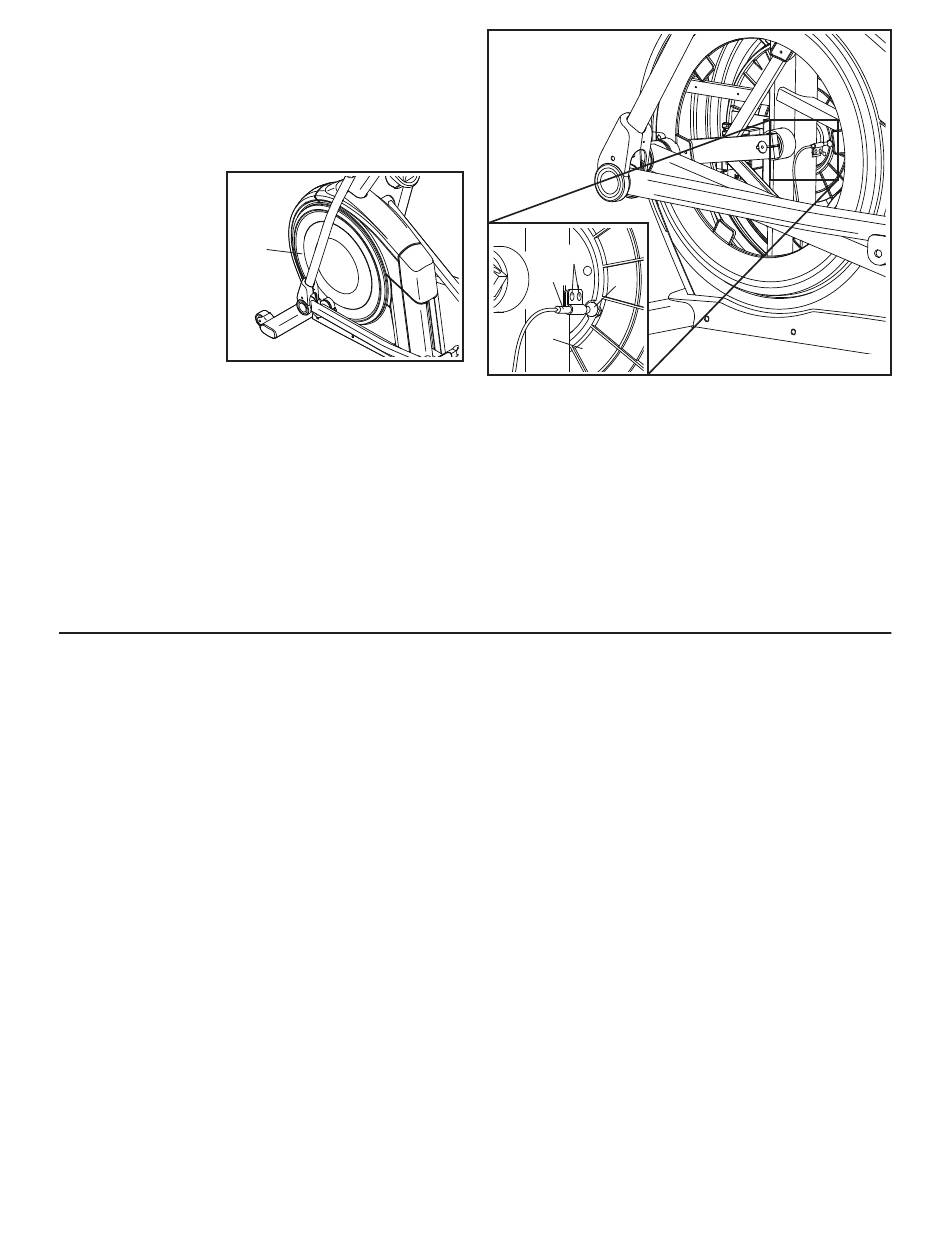

See the drawing at the right. Locate the Reed Switch
(38). Turn the Pulley (19) until a Magnet (43) is aligned
with the Reed Switch.
Slightly loosen the indicated two M4 x 12mm Self-
tapping Screws (50). Slide the Reed Switch (38)
slightly closer to or away from the Magnet (43), and
then retighten the Self-tapping Screws.
IC INFORMATION
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This
device may not cause interference. 2. This device must accept any interference, including interference that may
cause undesired operation of the device.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
CAN ICES-3 (B)/NMB-3(B)
Note: The console contains IC ID: 3673A-402547.
71
50
38
43
19
Then, plug in the power cord, press the power switch,
and rock the Pulley (19) forward and backward just
enough that the Magnet (43) passes the Reed Switch
(38) repeatedly. Repeat these actions until the console
displays correct feedback.
When the reed switch is correctly adjusted, reattach
the left disc and plug in the power cord.
33
