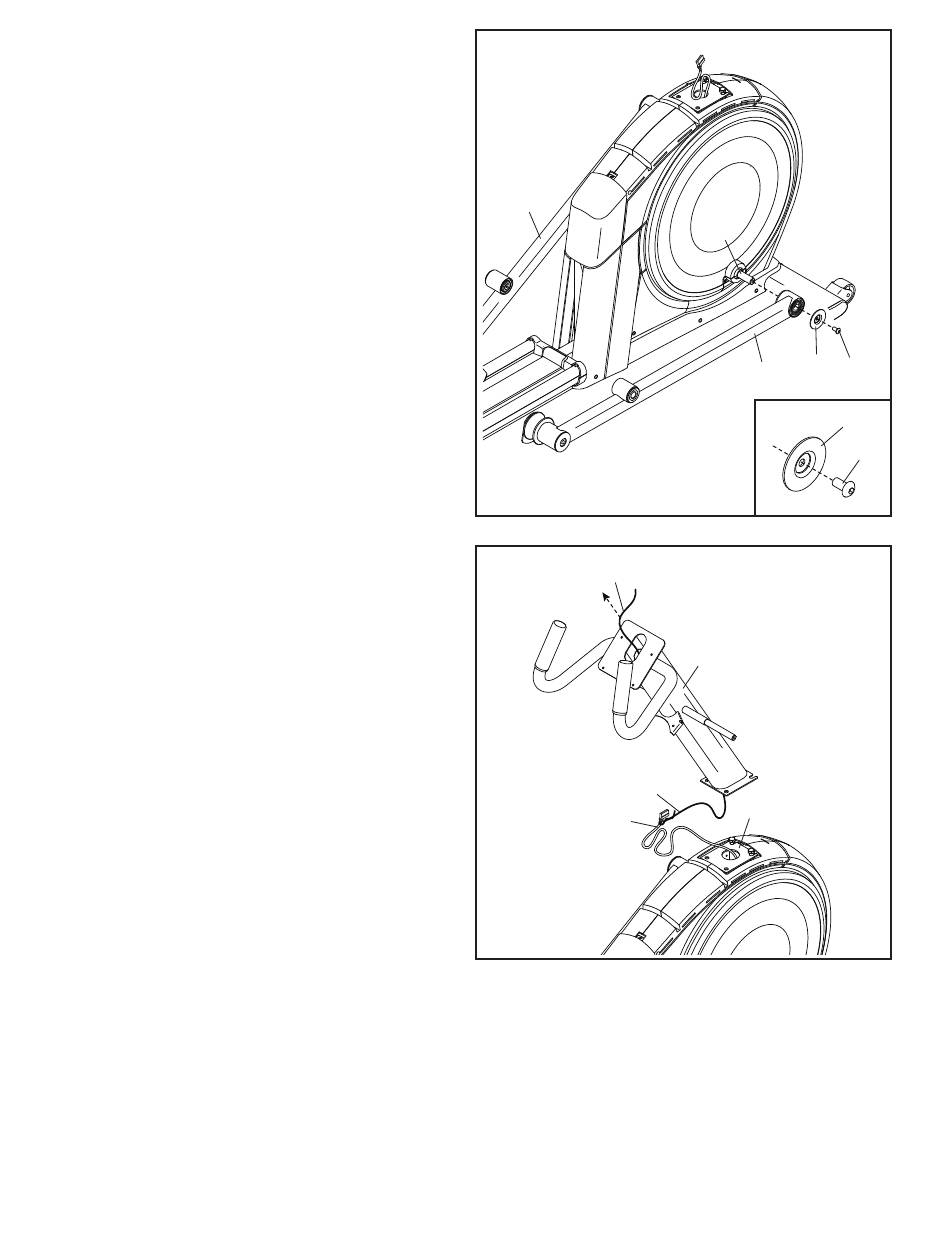

4. Identify the Right Roller Arm (59), orient it as
shown, and slide it onto the right Crank Arm (20).
Attach the Right Roller Arm (59) with
an M8 x 20mm Screw (95) and a Crank
Cover (77); make sure that the Crank Cover is
oriented as shown in the inset drawing.
Repeat this step for the Left Roller Arm (45).
5. Have a second person hold the Upright (4) near
the Frame (1).
Locate the wire tie (A) in the lower end of the
Upright (4). Tie the wire tie to the Main Wire
(110) as shown. Then, pull the upper end of the
wire tie until the Main Wire is routed through the
Upright.
Tip: To prevent the Main Wire (110) from
falling into the Upright (4), secure the Main
Wire with the wire tie (A).
