1. GENERAL INTRODUCTION
1.1. Document Purpose
This document provides general information for the CUBE-PM63915BN1 and CUBE PM-63915BN2 of the Charles Industries' Universal
Broadband Enclosure (CUBE) product line. These two models are identical except the BN2 now has R513A refrigerant instead of R134A
in the HVAC system. Figure 1 shows a closed front view of the enclosure.
Hereafter, the Charles Universal Broadband Enclosure CUBE-PM63915BN1/BN2 will be referred to as the "CUBE."
1.2. Product Purpose
The CUBE consists of a protective enclosure for an integrated system of electronic components and equipment that can serve fiber and
copper interfaces.
1.3. Product Mounting and Location
This enclosure is suitable for outside plant-type (OSP) locations and those that may require NEC compliance. The outdoor, weather-
resistant CUBE is to be mounted on a concrete pad or steel grate platform. The installer connects the power, fiber, and copper connections.
Detailed mounting and installation information is covered in Section 3.
©Copyright 2025 Charles Industries LLC. All rights reserved.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Universal Broadband Enclosure
CUBE-PM63915BN1/BN2
General Description and Installation

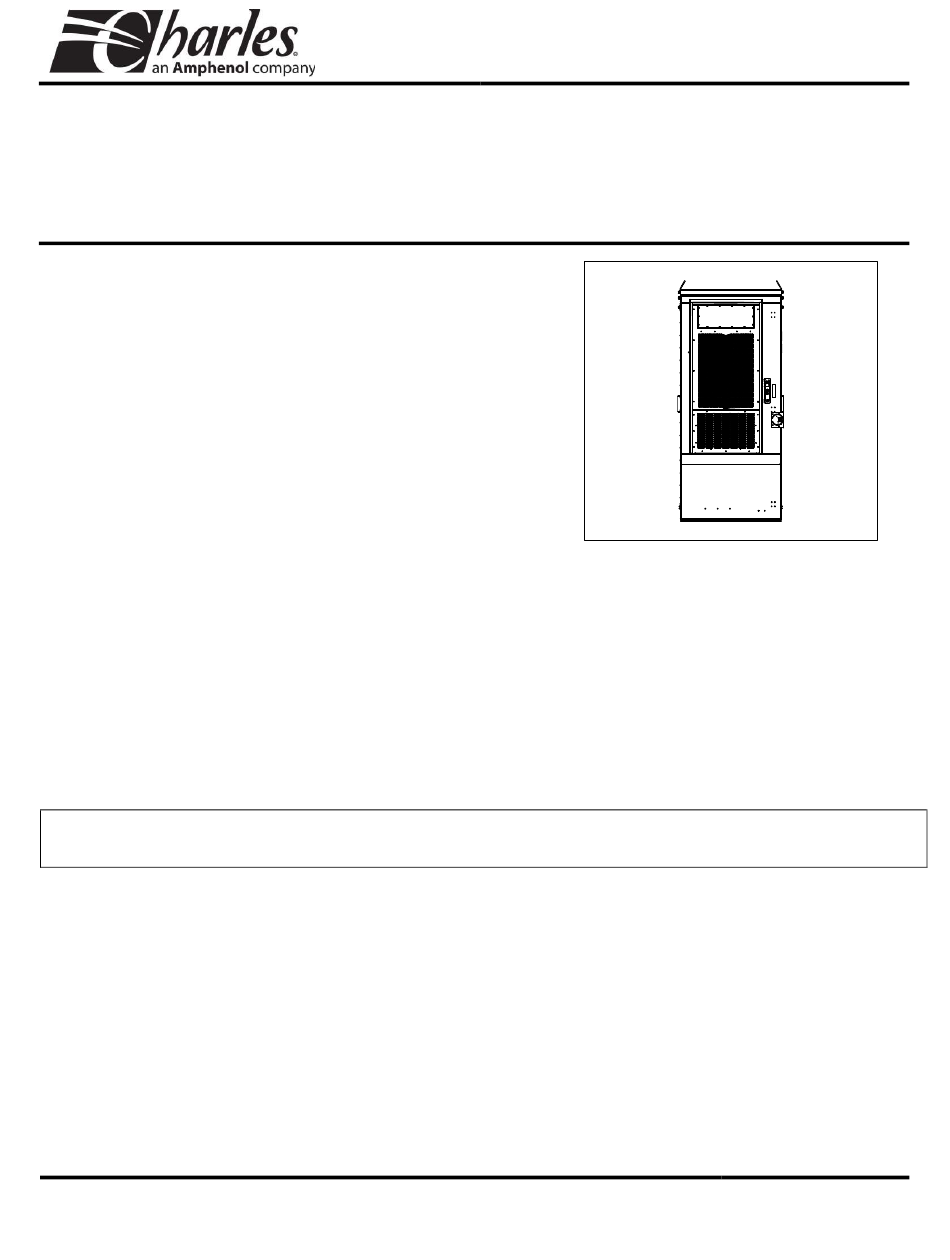

Figure 1
-NOTE-
LT-PM63915BN1
Rev A, March 6, 2025
Front View of the CUBE
Page 1 of 11
