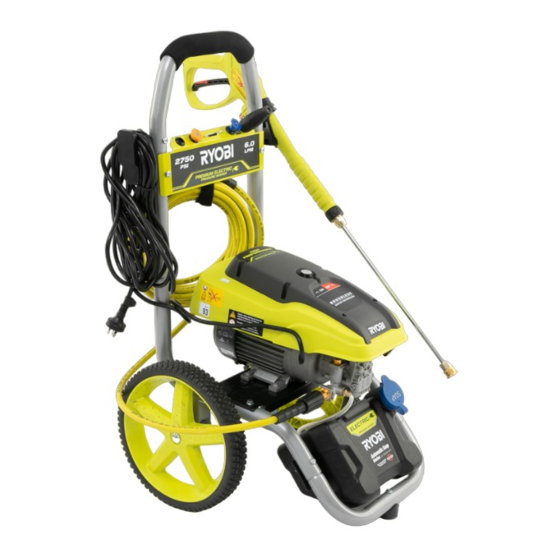

Summary of Contents for Ryobi RACPWS4

  • Page 1 FRONT PAGE RACPWS4...

  • Page 2: Intended Use

    WARNING! Do not use the product when IMPORTANT! people are within range unless they are It is essential that you read the instructions wearing protective clothing. in this manual before assembling, operating, ■ To reduce the risk of injury, keep children and maintaining the product.

  • Page 3: Electrical Safety Warnings

    ■ Injuries may be caused, or aggravated, by ADDITIONAL SAFETY WARNINGS prolonged use of the product. When using ■ Some regions have regulations that restrict the product for prolonged periods, ensure to the use of the product to some operations. take regular breaks.

  • Page 4: Overload Protection

    To resume ■ Regularly inspect and maintain the product operation, disconnect the product from the for safe operation. RYOBI recommends power outlet, wait for about 15 minutes, and inspecting the product every 6 months. reconnect the product to the power outlet.

  • Page 5: Symbols On The Product

    switch powers off the pump and the high-pressure jet stops. If the lever is The product is not suitable pulled, the pump powers on again. for connection to the drinking water supply without backflow ■ Overload protection preventer. – A thermal sensor protects the product from overloading.
  • Page 6 RACPWS4 Handle Turbo nozzle Soap nozzle 15° nozzle Nozzle holder Screws Nuts Power cord holder Trigger handle holder Water outlet port Power cord Push-pin buttons On/Off button Hose adaptor Detergent tank cap Detergent tank Water pressure dial Surface cleaner Know your product...
  • Page 7 1/4 Quick-connect collar Trigger gun lance Trigger handle Trigger handle lock Trigger Gun inlet coupler Trigger gun outlet Trigger gun hose Wheels Lock pin Washer Wheel bolt Operator's manual Garden hose Detergent Know your product...
  • Page 8 Wear full eye, ear, and head protection, On the front side of the handle, attach the nozzle holder using two screws. On the protective gloves, substantial footwear, rear left-hand side of the handle, attach the power cord holder using the nozzle and long trousers at all times while holder screw and a new screw.
  • Page 9 On each side of the product, align the mounting holes of a washer and a wheel Slide the handle over the handle to the wheel bracket and insert a wheel bolt through the mounting holes. On the frames on the product until the push pin inner side of the wheel bracket, insert a lock pin through the hole on the wheel buttons click and secure the handle in bolt to secure the wheel.
  • Page 10 30 sec NOTE: Push down the trigger handle lock until it unlocks into position. Squeeze Connect the product to a power outlet. and hold the trigger for 30 seconds or until water flows normally to relieve air pressure, run water, and clean any debris from the hose. Always remove the existing air pressure within the product before operation.
  • Page 11 Using the soap Using the turbo Using the surface Using the product p.12 p.13 p.14 p.15 nozzle nozzle cleaner Cleaning the Moving the Storing the p.16 p.17 p.18 product product product...

  • Page 12: Using The Product

    USING THE PRODUCT 1. Connect the product to a power outlet. 2. Press the on/off button to power on the product. 3. Push down the trigger handle lock until it unlocks into position. Squeeze and hold the trigger to operate the product. WARNING: Check the work area before each use.
  • Page 13 USING THE TURBO NOZZLE 1. Engage the trigger handle lock on the handle. Push the trigger handle lock upwards until it locks into position. 2. Pull back the 1/4 quick-connect collar. Remove the 15° nozzle from the collar. 3. Pull back the 1/4 quick-connect collar and insert the turbo nozzle into the collar until it clicks into place.
  • Page 14 USING THE SOAP NOZZLE 1. Engage the trigger handle lock on the handle. Push the trigger handle lock upwards until it locks into position. 2. Pull back the 1/4 quick-connect collar. Remove the turbo nozzle from the collar. 3. Pull back the 1/4 quick-connect collar and insert the soap nozzle into the collar until it clicks into place.
  • Page 15 USING THE SURFACE CLEANER 1. Engage the trigger handle lock on the handle. Push the trigger handle lock upwards until it locks into position. 2. Pull back the 1/4 quick-connect collar and remove the soap nozzle. Insert the surface cleaner into the quick- connect collar.

  • Page 16: Moving The Product

    MOVING THE PRODUCT 1. Press the on/off button to the off position. Power off the water supply. 2. Disconnect the product from the power outlet. Store the power cord properly. 3. Push down thne trigger handle lock until it unlocks into position. Squeeze the trigger to release water pressure.

  • Page 17: Cleaning The Product

    CLEANING THE PRODUCT 1. Press the on/off button to the off position. Disconnect the product from the power outlet. 2. Clean the product using a dry cloth. WARNING: Do not use water to clean the product. Avoid using solvents when cleaning plastic parts.

  • Page 18: Storing The Product

    STORING THE PRODUCT 1. Press the on/off button to the off position. 2. Power off the water supply. 3. Disconnect the product from the power outlet. Store the power cord properly. 4. Push down the trigger handle lock until it unlocks into position.
  • Page 19 6. Turn the high-pressure hose collar clockwise to loosen. Disconnect the high- pressure hose from the gun inlet coupler. Turn the other end of the high-pressure hose clockwise to loosen. Disconnect the high-pressure hose from the water outlet port. 7. Pull back the 1/4 quick-connect collar and disconnect the current nozzle from the 1/4 quick-connect collar.

  • Page 20: Product Specifications

    Electric high-pressure cleaner measured in accordance with a standardised Model RACPWS4 test and may be used to compare one tool with Rated voltage 220–240 V a.c. another. They may be used for a preliminary assessment of exposure.
  • Page 24 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961087762-03...
