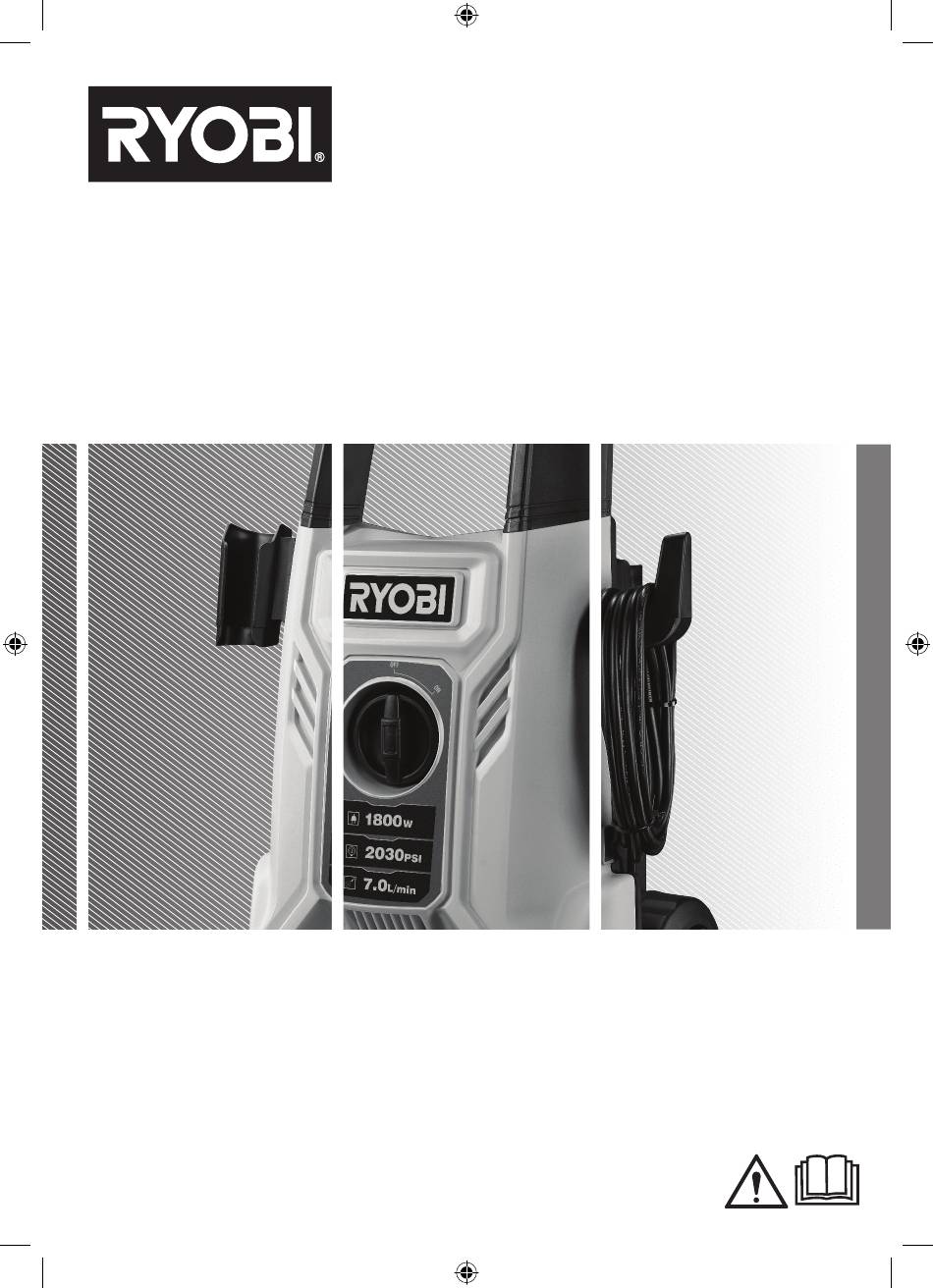

FRONT PAGE
RACPW140

Advertisement

Table of Contents
loading

Related Manuals for Ryobi RACPW140

Summary of Contents for Ryobi RACPW140

  • Page 1 FRONT PAGE RACPW140...

  • Page 2: Intended Use

    safety glasses and be kept at a safe IMPORTANT! distance from the work area. It is essential that you read the instructions ■ Ensure that the safety devices are in good in this manual before assembling, operating, working condition. Make sure that all safety and maintaining the product.

  • Page 3: Electrical Safety Warnings

    ELECTRICAL SAFETY WARNINGS be cleaned of debris, toys, outdoor furniture, or other objects that could create a hazard. ■ The plug must match the outlet. Never modify the plug in any way. Unmodified ■ Never pick up or carry the product while the plugs and matching outlets reduces the risk motor is running.

  • Page 4: Overload Protection

    CAUTION! Mind the weight of the product ■ Regularly inspect and maintain the product when selecting the storage location and during for safe operation. RYOBI recommends transportation to prevent accidents or injuries. inspecting the product every 6 months. ■ Stop the product, disconnect from the power ■...

  • Page 5: Symbols In This Manual

    overheating. SYMBOLS IN THIS MANUAL SYMBOLS ON THE PRODUCT Parts accessories sold separately Read understand instructions before operating the product. Follow all warnings Note and safety instructions. Warning Class II tool, double insulation Connect to power outlet. Wear hearing protection. Disconnect from power outlet.
  • Page 6 Original Instructions...
  • Page 7 RACPW140 Trigger handle lock Carry handle Hose hanger Handle screws O-rings Trigger Hose lock button Release switch Trigger handle holder Lance hook Power cord holder Nozzle cleaning tool Power cord Water inlet port Detergent tank cap Detergent tank Wheel Hose release button...
  • Page 8 Wear full eye and ear protection, protective Push down the trigger handle holder until the Attach the carry handle onto the product. gloves, substantial footwear, long buttons click, securing the handle in place. trousers at all times while operating the Push down the power cord holder until the product.
  • Page 9 Secure the carry handle in place using two Attach the hose hanger onto the carry handle. Secure the hose hanger using two handle handle screws. Turn the handle screws screws. Turn the handle screws clockwise to clockwise to tighten. tighten. Insert the high pressure hose into the water Install and secure a hose coupler on each end of the garden hose.
  • Page 10 Using the vario Using the detergent p.11 p.12 lance Replacing the Cleaning the Storing the product p.14 p.15 p.16 o-ring product...
  • Page 11 USING THE VARIO LANCE NOTE: Turn the front end of the nozzle tip clockwise for a focused stream. Turn counterclockwise for a wider spray pattern. NOTE: Turn the rear end of the nozzle tip counterclockwise or clockwise to increase or decrease water pressure. Use low water pressure for soaping applications.
  • Page 12 USING THE DETERGENT WARNING: Do not point the lance towards people, animals, live electrical equipment, or the product. 1. Turn the on/off switch to the off position. Remove the cap from the detergent tank. 2. Fill the tank with detergent solution. 3.
  • Page 13 6. Turn the on/off switch to the on position. Set the trigger lock to the unlock position. Squeeze the trigger to operate the product. NOTE: Turn the front end of the nozzle tip clockwise or counterclockwise to get a focused or spray water pattern. Operation...

  • Page 14: Replacing The O-Ring

    REPLACING THE O-RING 1. Remove any damaged or cracked o-ring from the nozzle wand end or hose end NOTE: Check nozzle wand end or hose end for stretched, cracked or split o-ring. 2. Dispose of the damaged o-ring properly. Contact your local distributor for the suitable replacement o-ring.

  • Page 15: Cleaning The Product

    CLEANING THE PRODUCT 1. Turn the on/off switch to the off position. Disconnect the product from the power outlet. 2. Clean the product using a brush. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents.

  • Page 16: Storing The Product

    STORING THE PRODUCT 1. Turn the on/off switch to the off position. 2. Disconnect the product from the power outlet. 3. Turn off the water supply. 4. Set the trigger handle lock to the unlock position. Squeeze the trigger until no more water flows out of the product.
  • Page 17 6. Disconnect the garden hose from the water inlet port and garden tap. 7. Set the trigger handle lock to the lock position. Push the hose lock button, and disconnect the hose. NOTE: If the product is pulsating intermittently or water is not exiting the nozzle smoothly, the nozzle may be blocked.

  • Page 18: Product Specifications

    Electric high pressure cleaner measured in accordance with a standardised Model RACPW140 test and may be used to compare one tool with Rated voltage 220 - 240 V a.c. another. They may be used for a preliminary assessment of exposure.
  • Page 20 Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 099903065001-01...
