- Page 1 FRONT PAGE RACPWS8...
-
Page 2: Intended Use
WARNING! Do not use the product when IMPORTANT! people are within range unless they are It is essential that you read the instructions wearing protective clothing. in this manual before assembling, operating, ■ To reduce the risk of injury, keep children and maintaining the product. -
Page 3: Electrical Safety Warnings
■ Injuries may be caused, or aggravated, by ADDITIONAL SAFETY WARNINGS prolonged use of the product. When using ■ Some regions have regulations that restrict the product for prolonged periods, ensure to the use of the product to some operations. take regular breaks. -
Page 4: Overload Protection
■ Regularly inspect and maintain the product current spike occurs, automatically shutting for safe operation. RYOBI recommends down power within the product. To resume inspecting the product every 6 months. operation, disconnect the product from the ■... -
Page 5: Symbols On The Product

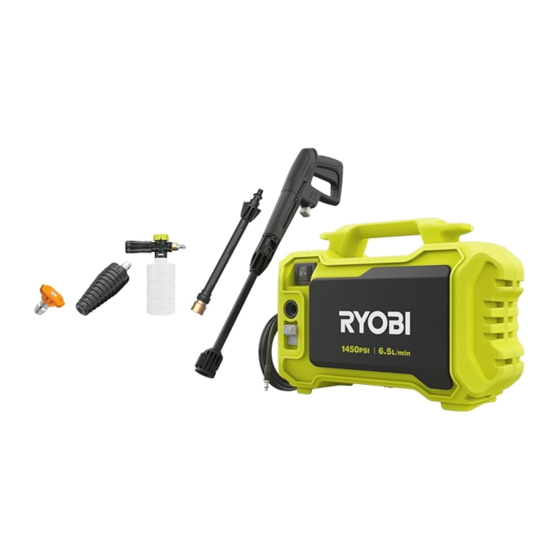

SYMBOLS ON THE PRODUCT Safety alert Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Never point the gun to persons, animals, the product, the power supply, or any electric appliance. The product is not suitable for connection to the drinking water supply without a backflow preventer. - Page 7 RACPWS8 Hose release button Water outlet port On/Off button Carry handle Water inlet port Power cord Trigger gun Trigger Hose release button Trigger handle lock Trigger gun outlet High-pressure hose O-rings Turbo nozzle 15-degree nozzle Water inlet filter Detergent bottle...
- Page 8 Insert the spray wand into the extension Pull back the quick-connect collar. Insert the preferred nozzle into the lance until it clicks into place. quick-connect collar until it clicks into place. NOTE: Properly align the spray wand with the extension lance. NOTE: Use the garden hose to connect Uncoil the high-pressure hose.
- Page 9 Insert the extension lance into the trigger gun outlet, and turn it clockwise to NOTE: Use the high-pressure hose to secure the connection. connect the product to the trigger gun. Insert the other end of the hose into the Rotate the product to face its rear side. water outlet port.
- Page 10 Connect the product to a power outlet. Press the on button to power on the Squeeze the trigger to operate the product. product. Getting started...
- Page 11 Operating the Using the detergent Replacing the p.12 p.13 p.14 product bottle O-ring Cleaning the p.15 Storing the product p.16 product...
- Page 12 OPERATING THE PRODUCT 1. Pull back the quick-connect collar and insert the preferred nozzle. 2. Connect the product to a power source. Press the on button to power on the product. 3. Set the trigger handle lock to the unlock position.
- Page 13 USING THE DETERGENT BOTTLE 1. Turn detergent bottle counterclockwise direction, and pull out the detergent nozzle head. 2. Fill the bottle with detergent solution. Reinstall the detergent nozzle head to the bottle. 3. Pull back the quick-connect collar. Push the detergent nozzle into the quick- connect collar until it clicks into place.
- Page 14 5.5x2 mm REPLACING THE O - RING 9x2.65 mm NOTE: Check the lance or hose end for stretched, cracked, or split O-ring. NOTE: Replace damaged O-rings with the appropriate size. O-ring dimensions are as 4.8x1.8 mm follows: ■ Spray wand – 5.5 x 2 mm ■...
- Page 15 CLEANING THE PRODUCT 1. Power off the product. Disconnect the product from the power outlet. 2. Clean the product using a brush. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean cloths to remove dirt, dust, oil, grease, etc.
- Page 16 STORING THE PRODUCT 1. Power off the product. Disconnect the product from the power outlet. 2. Turn off the water supply. 3. Set the trigger handle lock to the unlock position. Squeeze the trigger until no more water flows out of the product. 4.
- Page 17 6. Disconnect the garden hose from the water inlet port and garden tap. 7. Pull back the quick-connect collar and disconnect the nozzle. 8. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts.
- Page 18 Electric high pressure cleaner standardised test and may be used to compare one tool with Model RACPWS8 another. They may be used for a preliminary assessment of exposure. Rated voltage 220–240 V a.c.
- Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 099903101002-01...
